Decisioning Agent Analytics

Early Access

This is an Early Access feature. To enable it for your account, please contact your MoEngage Customer Success Manager (CSM) or the Support team.

Overview

The Decisioning Agent Analytics page helps you evaluate how your AI Agent is performing across various campaigns. Use this UI to track how the AI adapts to user actions and to see the specific impact your Agent has on message delivery and engagement. By comparing users who receive AI-optimized messages against a baseline group, you can measure the incremental value the Agent provides.

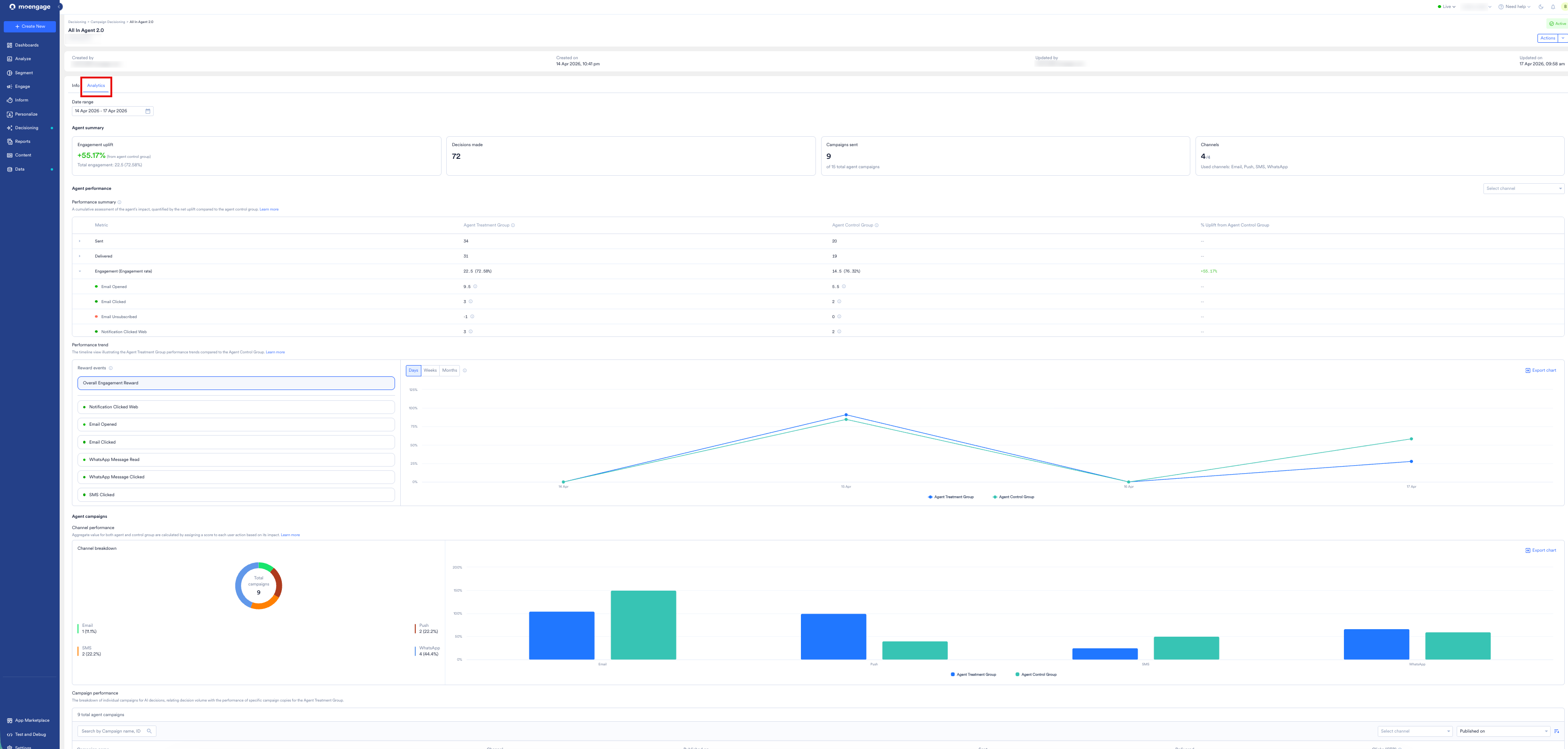

The following image shows the Decisioning Agent Analytics UI:

info	Information MoEngage calculates and displays all metrics based on the timezone configured in your app settings. Data is updated automatically when you change the global date range filter.

Access the Decisioning Analytics Page

To view the performance metrics for a specific Campaign Decisioning Agent, perform the following steps:

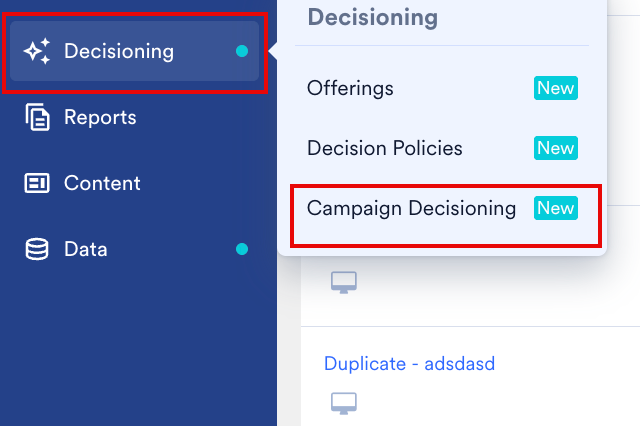

On the sidebar menu in MoEngage, hover over the Decisioning menu item . The Decisioning menu appears.
Click Campaign Decisioning.

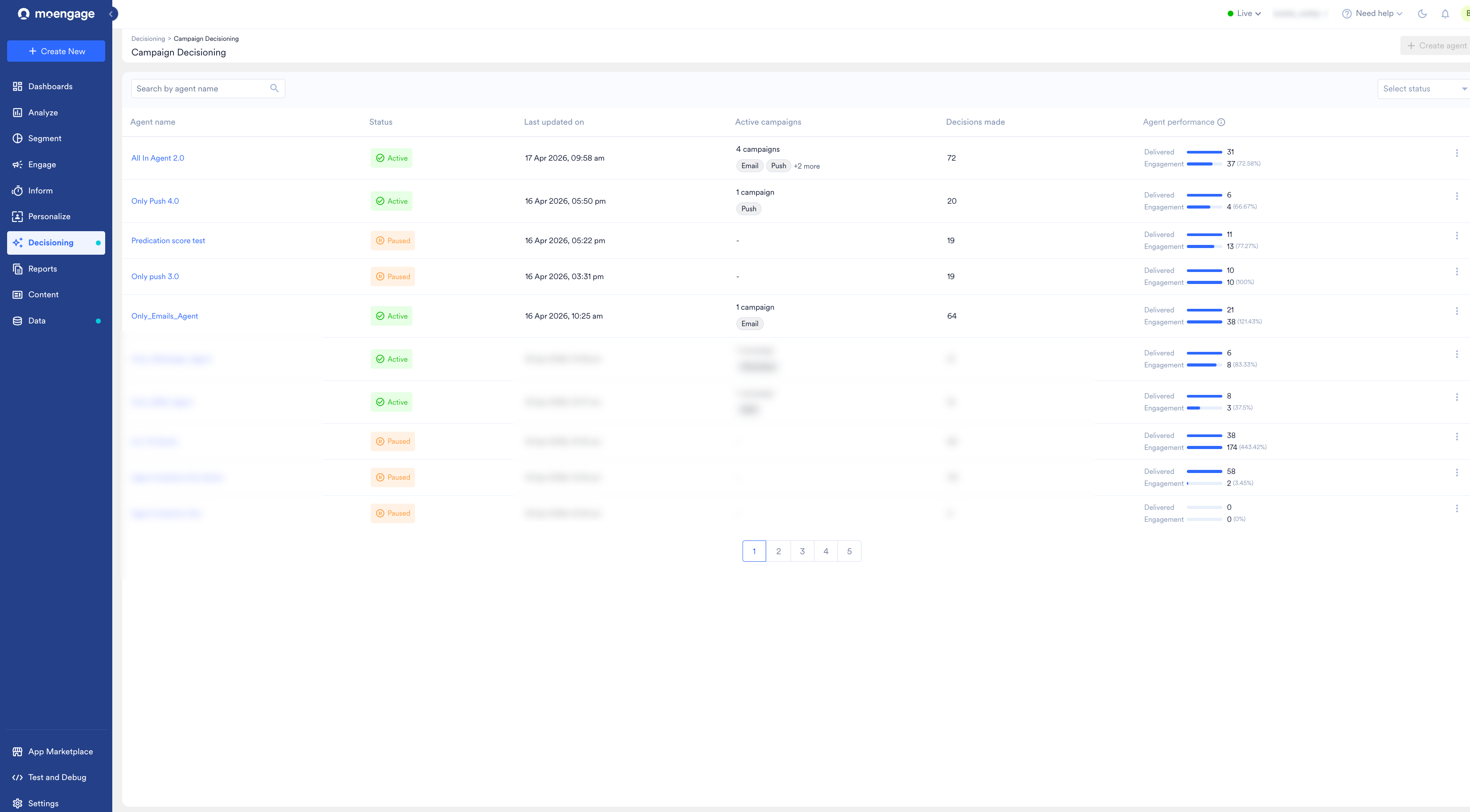

The Campaign Decisioning page appears.
From the list, click the Agent you want to analyze.
Click the Analytics tab.

Terms to Know

Refer to the following glossary for information on the entities related to Decisioning Agent Analytics:

Term	Description
Engagement Uplift	Percentage increase in engagement rate achieved by the agent treatment group compared to the agent control group. Engagement uplift = ((Engagement rate of agent treatment group − Engagement rate of agent control group) / (Engagement rate of agent control group))*100.
Weightage Score	Cumulative value derived by assigning specific points to user actions (Rewards) as defined during Agent creation.
Audience	Total population defined for AI optimization, providing a broad dataset to analyze intent and maximize long-term value. This differs from the Campaign Segment, which serves as a tactical guardrail to ensure message relevance.
Exploration	Mechanism that delivers wildcard campaign options to small traffic subsets to gather data on new strategies. This process solves the "cold start" problem for fresh assets and helps the Agent adapt to evolving user interests and market trends.
Reward event	Classification of user actions as positive or negative "signals" to calibrate the Agent’s intelligence. Positive events (for example, purchases or clicks) represent successful outcomes to maximize, while negative events (for example, uninstalls) represent friction that it learns to minimize.
Agent Treatment Group	Users who receive campaigns based on AI-optimized timing and delivery decisions.
Agent Control Group	Randomly selected group of users who receive campaigns without AI optimization to serve as a baseline for measuring AI incremental impact.

Analyze Agent Performance

The Analytics tab allows you to visualize data patterns and validate the effectiveness of your AI strategy. This section explains how to use the filters and controls to interpret your data.

Step 1: Filter Your Performance Data

Select the data you want to analyze using the following filters at the top of the page:

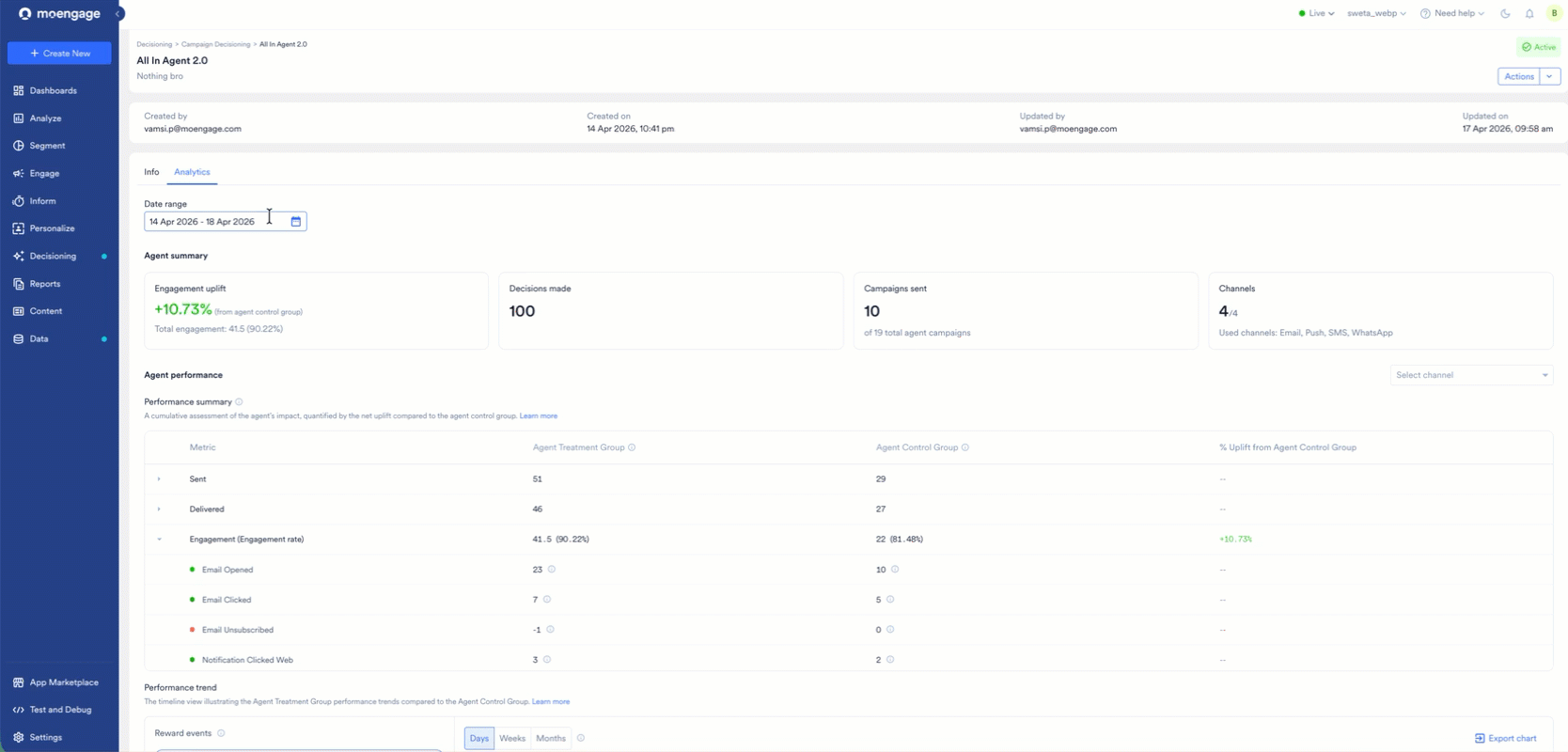

Date Range: Define the time period for the analysis. You can select predefined options such as Today, Yesterday, Last 7 Days, Last 30 Days, This Week, Last Week, This Month, Last Month, or Since. To define a specific duration, select Custom Range. You can also view a rolling duration by entering a number in the Last input box and clicking D (days), W (weeks), or M (months). All summary cards and charts on the page are updated automatically to reflect your selection.
Select Channel: Choose a specific platform (Email, Push, SMS, or WhatsApp) to isolate performance metrics for that channel.

Step 2: Review Operational Scale and Achievement

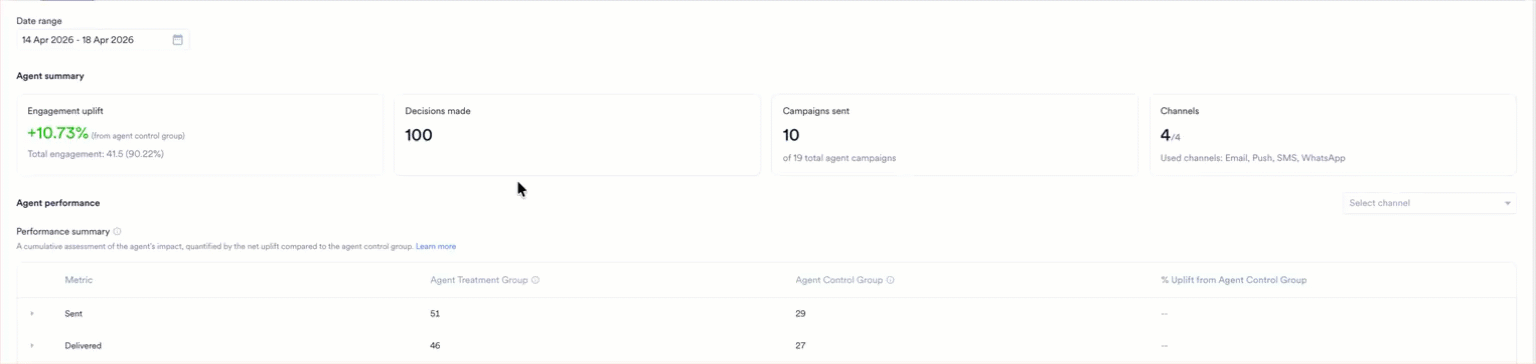

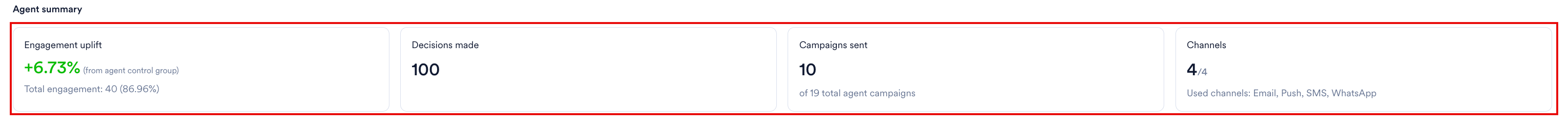

The following Agent summary cards provide high-level metrics that help you monitor the Agent's operational status and overall effectiveness:

Engagement Uplift: Displays the net percentage increase in engagement compared to the control group.
Decisions Made: Shows the total volume of individual 1:1 choices processed by the AI engine.
Campaigns Sent: Lists the number of unique campaigns successfully delivered from the total eligible pool.
Channels: Indicates the count of active channels currently in use (for example, 4/4).

Step 3: Analyze Performance Summary

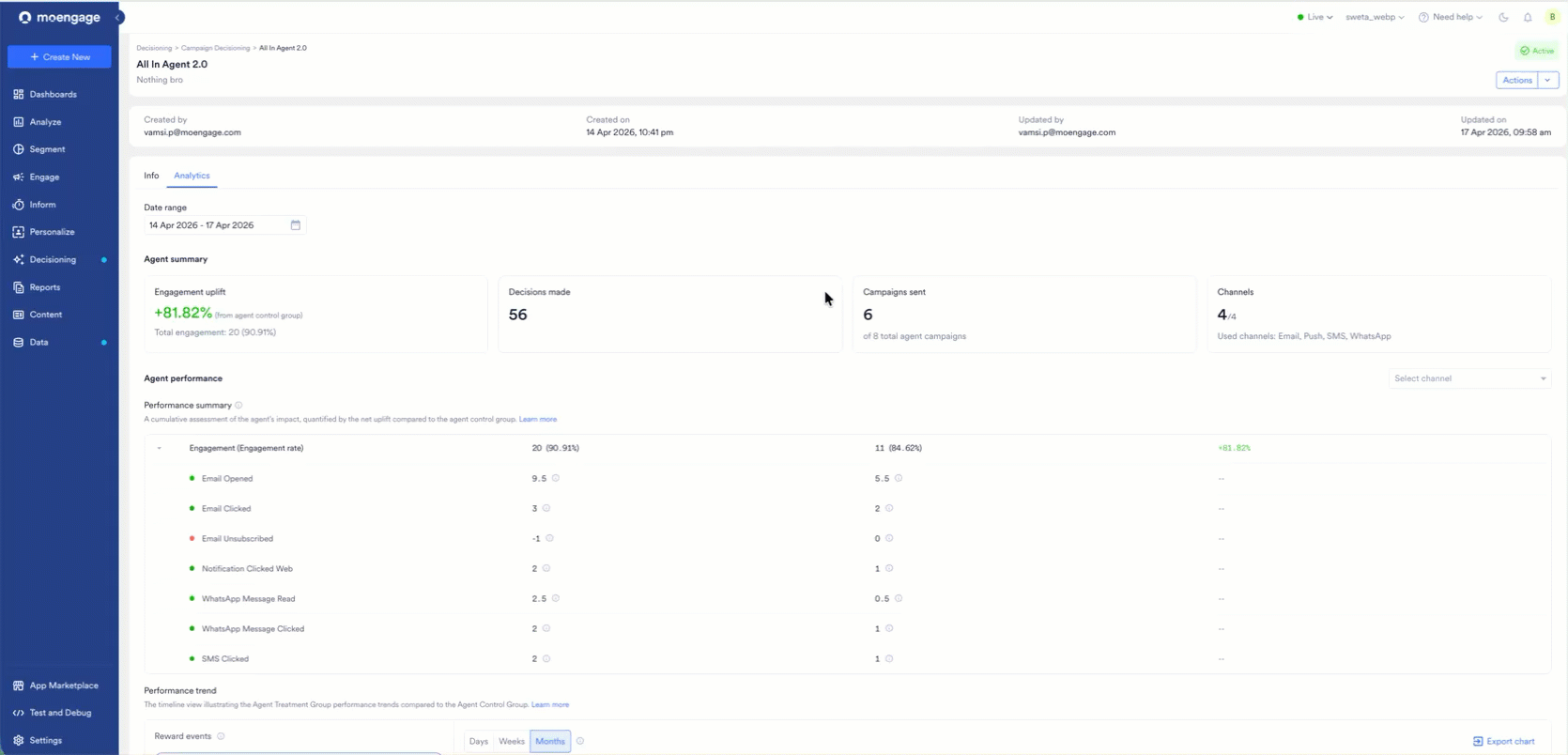

The Performance Summary table provides a detailed comparison of the Agent Treatment Group versus the Agent Control Group. This view updates dynamically based on your global filter selections to show relevant metrics.

For example, to view the performance of a specific channel, perform the following steps:

In the Date Range list, select the time period you want to analyze.
In the Select channel list, select a channel (for example, Email). The table is updated to show reward events for that channel, such as Email Opened and Email Clicked.
Review the Sent, Delivered, and Engagement metrics for both groups.
Click the arrow icon next to the Engagement row to expand and view granular event data.
Note: Reward events are indicated with green dots (positive signals) or red dots (negative signals) as defined in your reward strategy.

info	Formula Engagement Rate = Number of Engagements / Number of Delivered communications. Engagement uplift = ((Engagement rate of agent target group − Engagement rate of control group )/ (Engagement rate of control group))*100.

Step 4: Visualize Optimization Trends

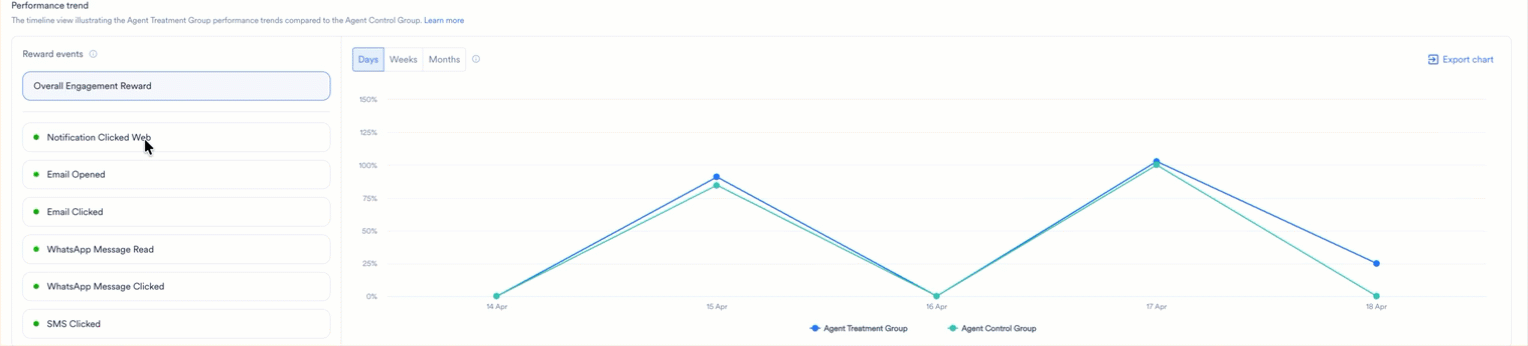

The Performance Trend section allows you to visualize how the AI model optimizes results over time.

Reward Selection: Use the left sidebar to select specific events and isolate their trends in the line chart.
Granularity: Switch the timeline view between Days, Weeks, or Months.
Export: Click Export chart to download the current visualization as a PNG file.

Step 5: Review Channel and Campaign Performance

The channel and campaign performance sections provide the following detailed metrics that help you identify the specific segments of your strategy that drive the most impact:

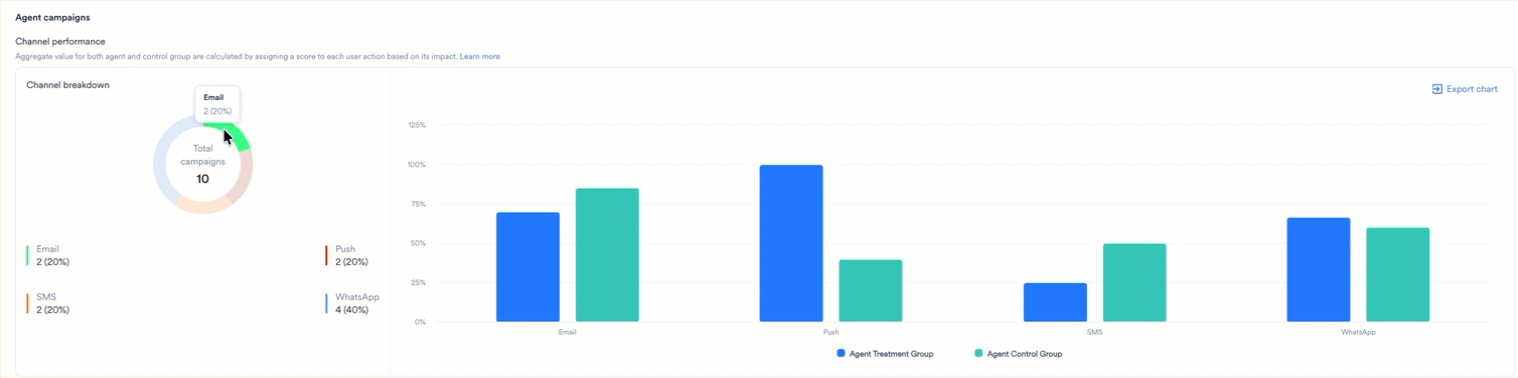

Channel Breakdown: Review the donut chart to see the percentage distribution of campaigns across used channels.

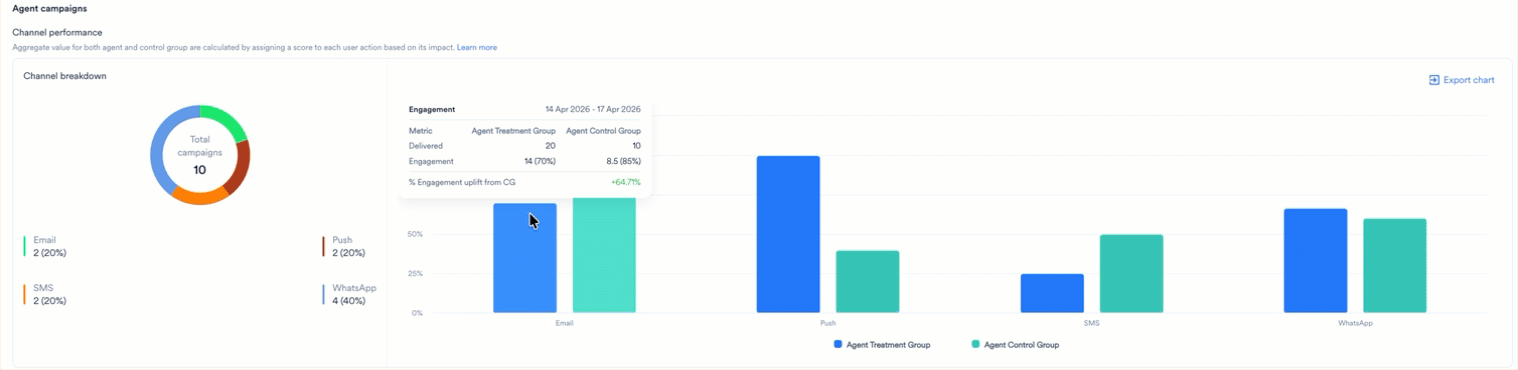

Channel Performance: Use the bar chart to compare Agent Treatment Group and Agent Control Group performance for each active channel.

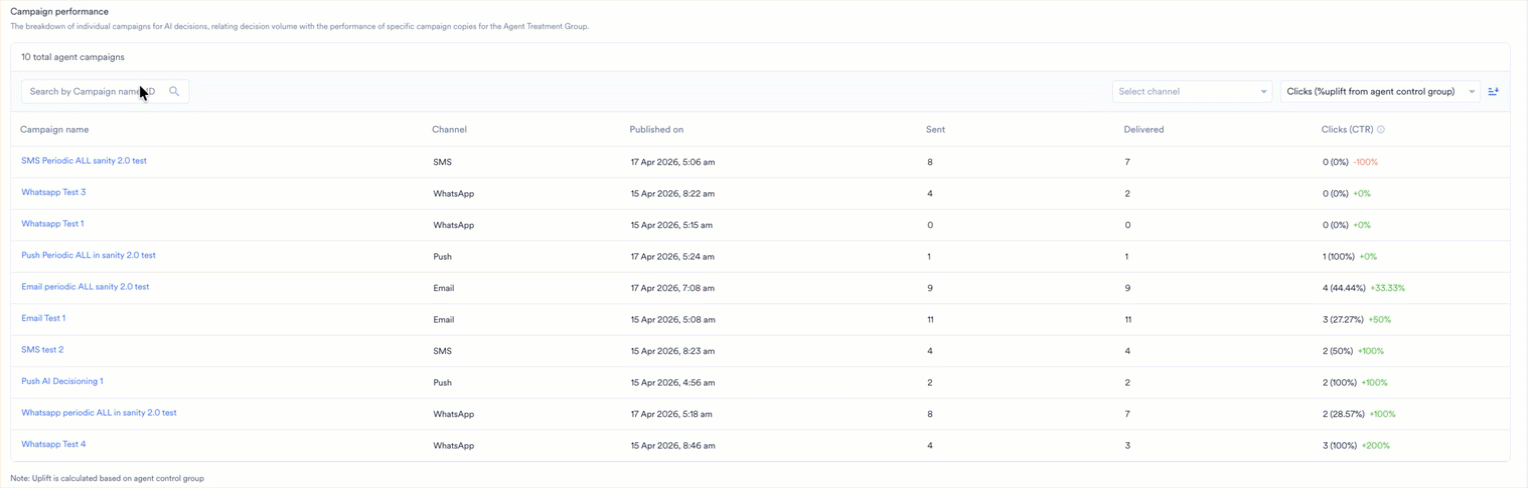

Campaign Performance Table: A granular list of all campaigns managed for the Agent Treatment Group. You can sort this list by Sent, Delivered, or CTR to identify winning variations.

To refine and analyze individual campaign results, perform the following steps:

In the Search by Campaign name, ID box, type the name or identifier of a specific campaign.
In the Select channel list, select one or more channels to filter the table.
In the Published on list, select a date or timeframe to see campaigns released during that period.
Click the sort icon to organize the list by Sent, Delivered, or Clicks (CTR).

Campaign Delivery Statistics

If the Sent volume is lower than the number of Decisions Made, check the following reasons for delivery failure in the AI funnel:

Reason (UI)	Explanation
Agent Inactive	The Agent is paused or inactive during campaign processing.
Control Group Exclusion	The user is part of the hold-out baseline group used for uplift measurement.
Frequency Limit Reached	The user was skipped due to frequency capping or because the campaign did not rank in the "Top N" most relevant messages.
User not eligible	The user does not meet specific segment, platform, or locale requirements at the time of delivery.

warning

Warning

Conversion Metrics: Phase 1 excludes conversion-related data. The Decisioning Agent Analytics UI focuses exclusively on Engagement Uplift.
Data Export: Chart visualizations can be exported only as PNG images. CSV and Excel exports are not currently supported.
