Create a Connector Campaign

MoEngage acts as a central hub for your data, to which you can plug and connect any system for the duration of your choice. Connectors allow you to target users across all communication channels. The Connector campaign from MoEngage enables you to execute a variety of use cases such as:

  • Retrieving real-time data from MoEngage
  • Passing data to other-owned or third-party analytics systems

To create a Connector campaign:

  1. Navigate to the MoEngage Dashboard and select Engage > Campaigns from the left navigation. The All campaigns page is displayed.
  2. At the top right corner, click + Create campaign.
  3. Under Connectors, click Custom and select one of the following campaign delivery types:
    • One Time
    • Periodic
    • Event Triggered

For more information about delivery types, refer to Delivery Types.

Steps to Create a Connector Campaign

The following are the steps to create a Connector campaign:

  1. Target users: Define the target audience for the campaign.
  2. Content: Define the content of the Connector campaign to be sent.
  3. Schedule and Goals: Define the campaign's delivery schedule and goals.

Step 1: Target Users

This section contains the following:

Campaign Details

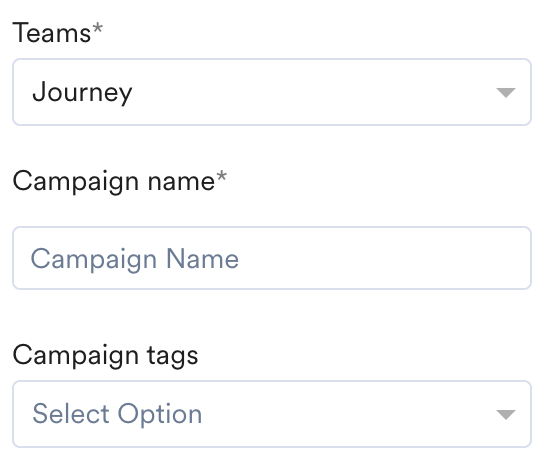

The campaign details section contains the following fields:

    • Teams: If your organization has teams enabled, select a team in the drop-down list. For more information, refer to Teams in MoEngage.
    • Campaign name: Enter the name of the campaign to manage and identify the campaign. The campaign name must have at least five characters, and the limit is 256.
    • Campaign tags: Select campaign tags from the drop-down list. You can select a maximum of five tags. For more information, refer to Campaign Tags.
connector campain user info.png
arrow_drop_down Event Triggered Campaigns

This section contains the event criteria that (when satisfied) will trigger the Connector campaign notification. To define the trigger condition, do the following under Trigger criteria:

  • In the IF user section,
    1. In the Select an event drop-down list, select a user action that needs to be performed to trigger the campaign. This is the primary filter condition.
    2. Click + Attribute to add attributes to the filter. (This is optional)
    3. Click + ADD FILTER to add another filter with the primary filter. (This is optional)
  • In the THEN trigger the message section,
    1. Select Immediately to send the campaign within the next 30 to 60 seconds.
      You can send the campaign with only the If condition.
    2. Select With Delay and provide the following details to define the timeframe and the event criteria to be fulfilled to send the campaign:
      1. Enter the number and select the minutes, hours, or days.
      2. Select Before or After the time.
      3. Select the action to be performed by the user in the drop-down list for the if condition. The user must perform the actions added within the time specified in the delay criteria after performing the first action.

event triggered connector campaign.png

When to use event-triggered Connector campaigns?

  • Configuration without an event property:

    Set an event-triggered campaign to target users when there is no event property. For example, when the users abandon the cart and do not complete the purchase within the next 45 mins. The trigger condition for this scenario would be:

    IF the user has executed the event 'Added to Cart' AND has not executed the event 'Purchase'.

    Select the user or derived event in the IF condition and enter the event attributes. You can enter additional event attributes as well.

  • Configuration with an event property:

    With event triggers, you can trigger the Connector campaign notification for specified values of the event attribute in your IF event. For instance, if you want to remind users who have booked a flight, 2 hours before the flight time, you can create a trigger on the Flight Booked event using the event property Flight Time and set the notification to be sent 2 hours before the flight time.

  • Other examples:
    • Send discounts or reminders to your subscribers before the subscription expiry
    • Send a communication before the flash sale to customers who have registered for it
    • Send a reminder before customers' travel date or time
    • Send a message to cross-sell hotels, experiences, local transport, restaurant bookings
    • Send a reminder to customers to refill consumables before they end

Select Audience

This section contains segmentation filters that help you choose the target audience for your campaign. The following options are available:

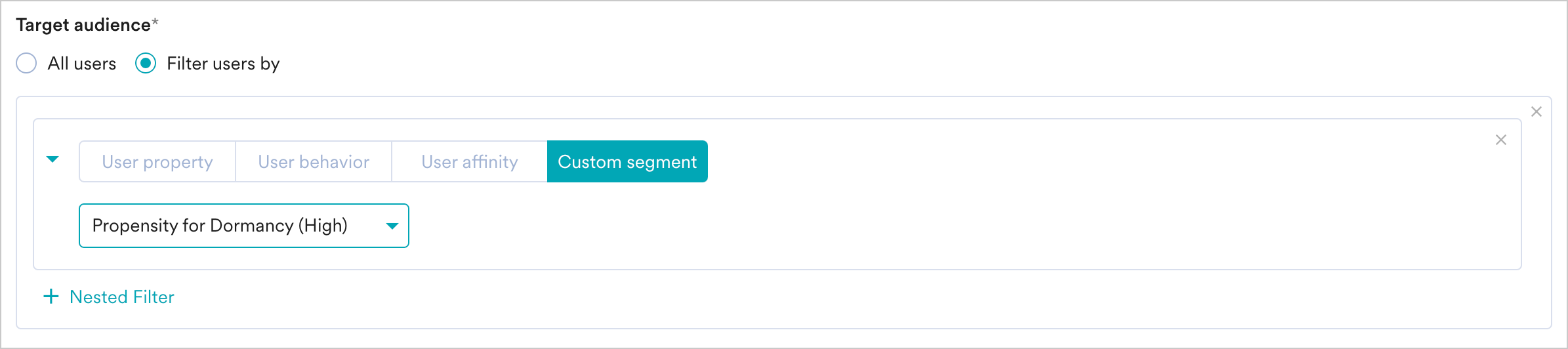

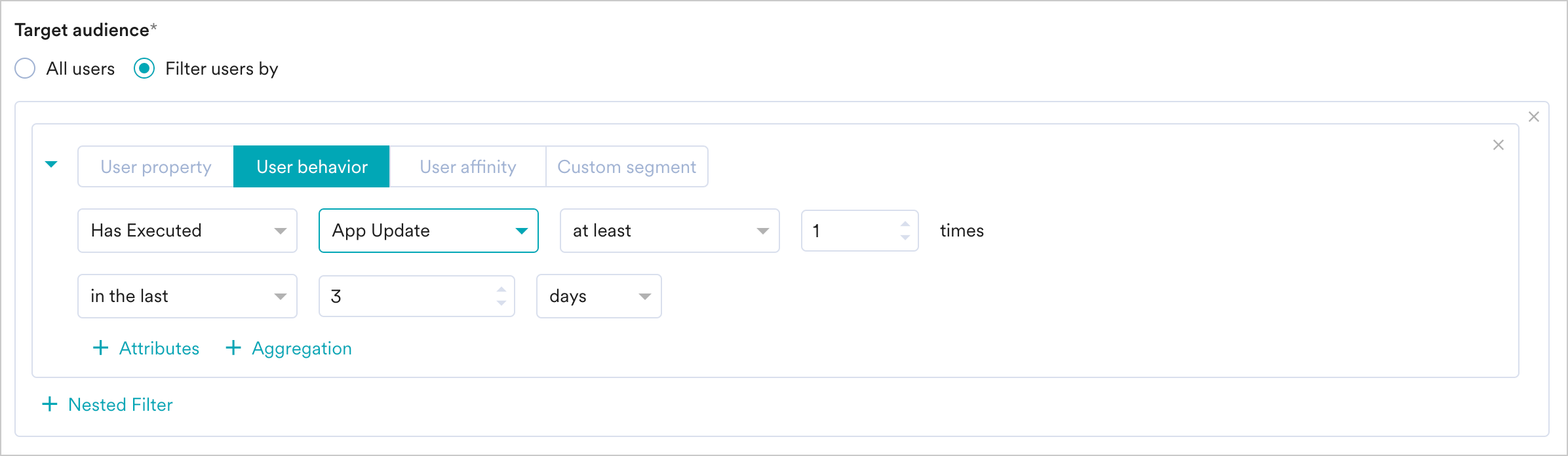

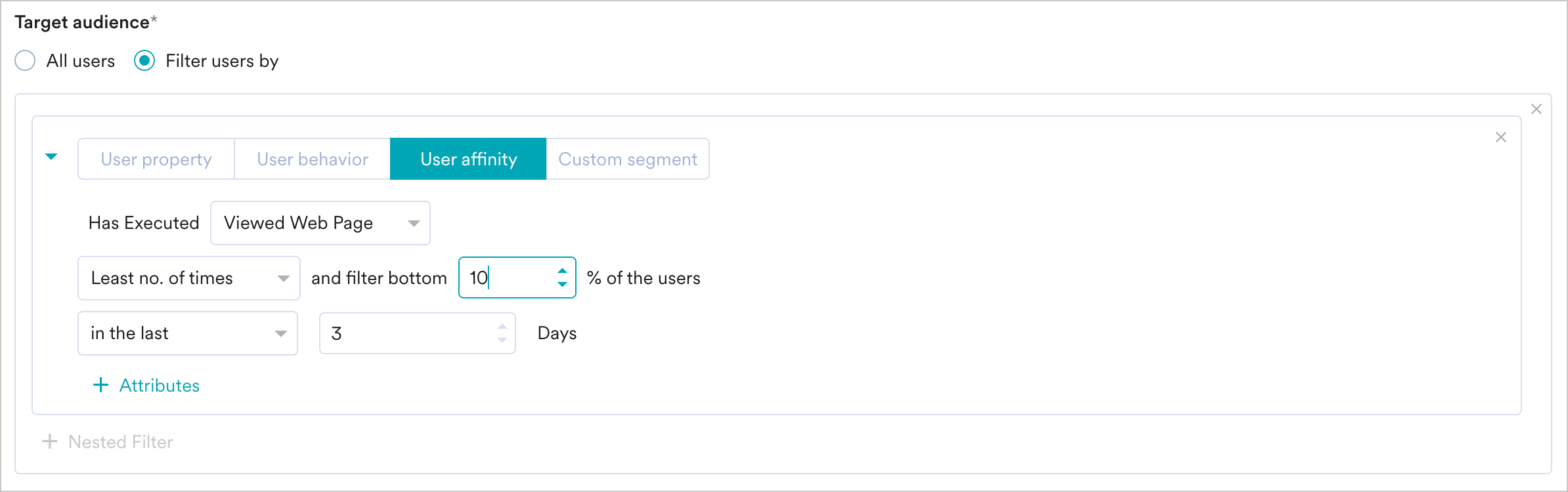

All Users Filter by User Property Filter by User Behavior Filter by User Affinity Filter by Custom Segment

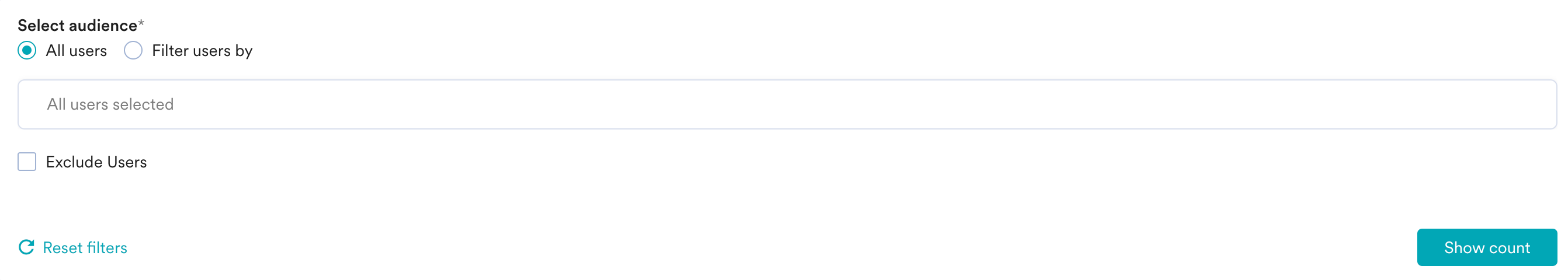

This filter option allows you to send the campaign to all the app users. When you use this option, you cannot add multiple filters.

all users.png

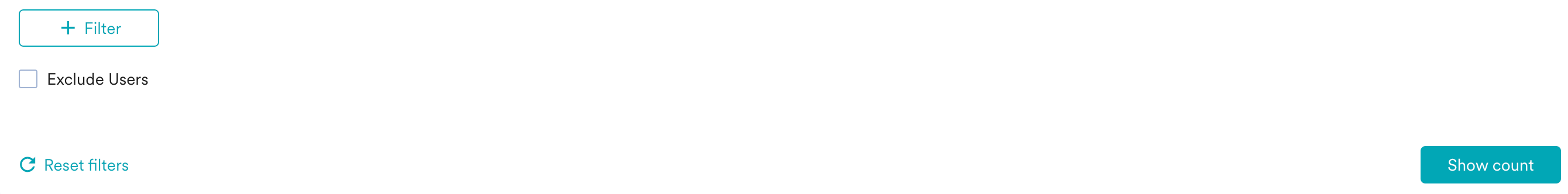

After selecting the filter criteria, you can do the following as well:

  • Create Multiple Filters: You can create and combine multiple user property rules, user activity rules, and custom segment rules to create a complex user segment using this option.
    1. Click + Filter.
    2. Click AND or OR.
    3. Select the attribute or event and define the filter conditions.
  • Exclude Users: Select this checkbox to define the filter criteria for users to be excluded from the campaign.
  • Reset Filters: Click this option to reset the segmentation filters.
  • Show Count: Click this button to display the total number of users who are currently in the configured segment.

filters connector campaign.png

Control Group

This section contains information about control groups for the campaign. To exclude users from the control groups, do the following:

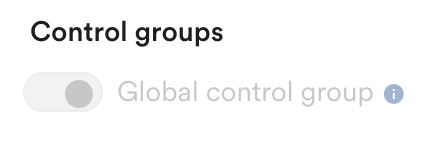

In the Control groups section, enable the Global control group toggle to exclude the users from the campaign's target segment. For more information, refer to Control Group.

control groups connector campaign.png

Click Next or use the tabs on the top of the create campaign navigation to move to Step 2.

Step 2: Content

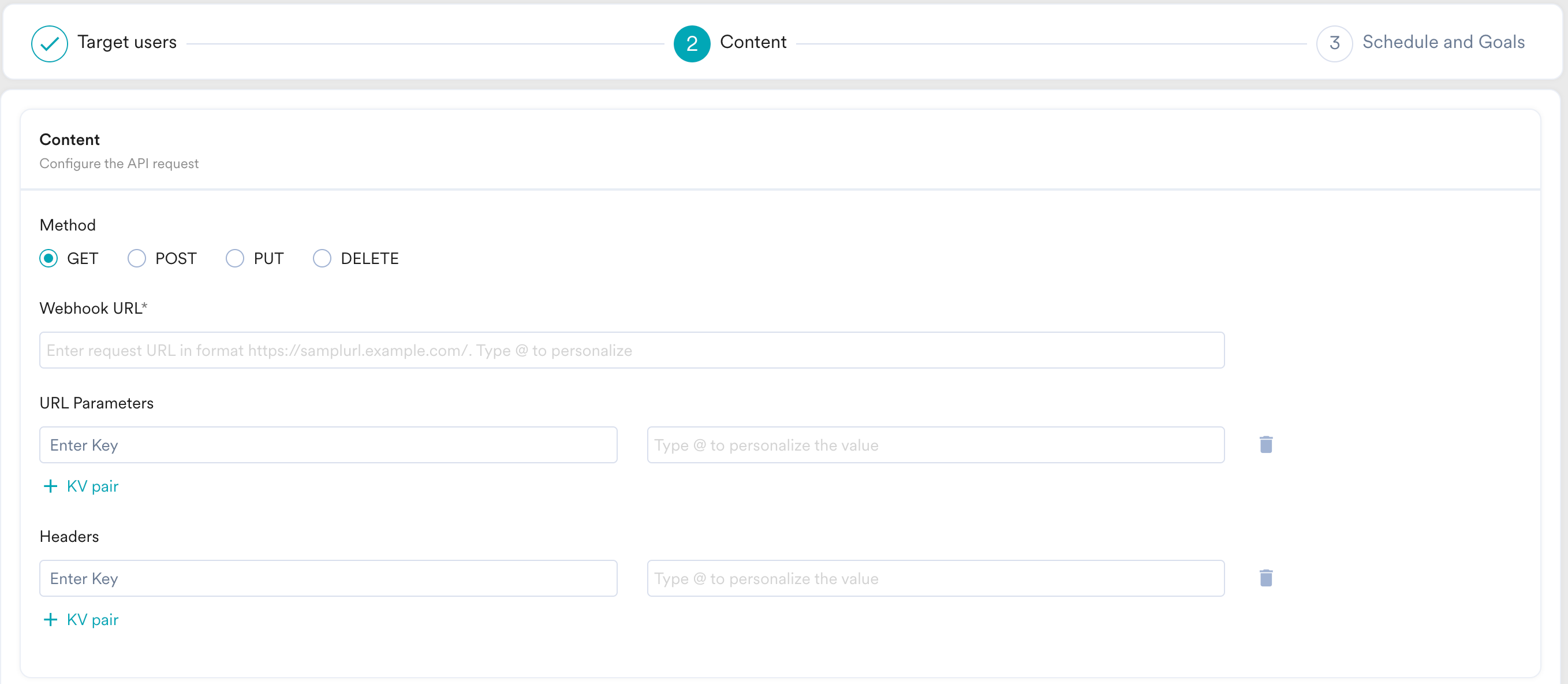

Configure Webhook URL or target connector URL. You can use the following methods:

  • GET
  • POST
  • PUT
  • DELETE

content connector campaign.png

Common for GET, POST, PUT, and DELETE

Field Description
Webhook URL Enter the URL for the webhook to which you want to send the data.
URL Parameters

Enter the parameters for the API. If the URL has the parameters, the parameters are autofilled in the URL parameters field.

Click + KV pair to add another URL parameters.

Headers

Add the headers for the webhook.

Click + KV pair to add another header.

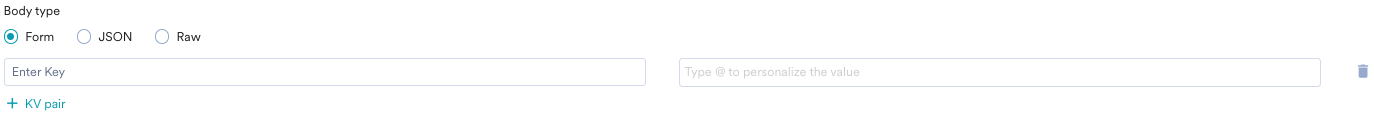

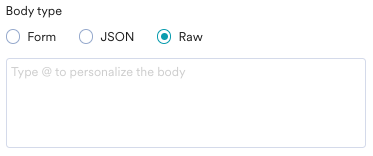

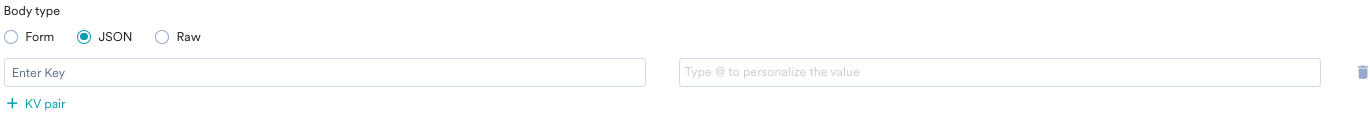

POST, PUT, and DELETE Body Type

Configure the Body for your requests using the following options:

Form JSON Raw Body

Create the body based on the form-encoded serialization for the webhook. Click + KV pair to add more form-encoded body.


Enable Authorization Settings

If your connector request involves a basic non-changing access token, you can simply add those as a key-value pair in the header.

If your connector request involves an OAuth 2.0 authentication, perform the following steps:

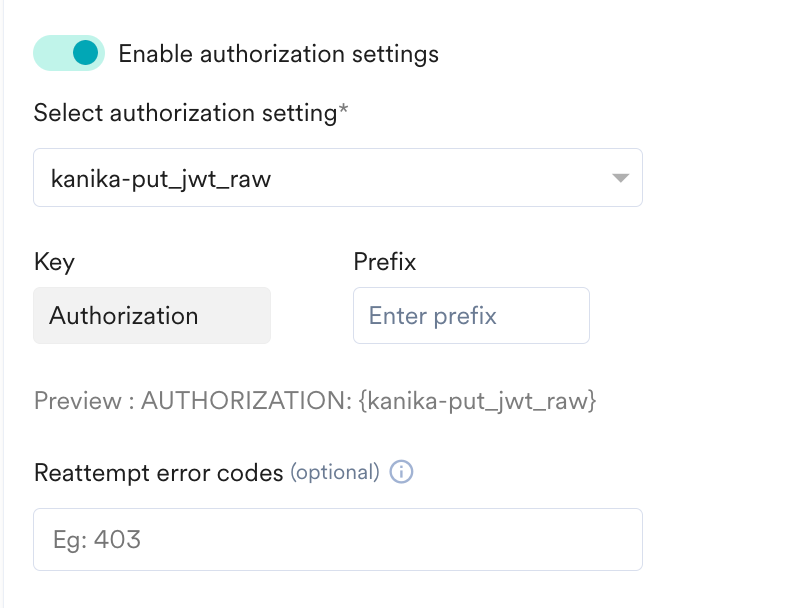

connector OAuth.png

  1. Turn on the Enable authorization settings toggle.
  2. From the Select authorization setting drop-down list, select an OAuth configuration.
    info

    Information


    You can see the OAuth settings configured in the MoEngage system at Settings > Advanced settings > Authorization configuration. For more information, refer to OAuth 2.0.

    You must select a healthy OAuth setting, which is in "Active" status. If you select an OAuth setting in "Failed" status, you cannot create a Connector campaign.

  3. The Key field is populated as "Authorization" by default.
  4. In the Prefix field, enter a prefix. You can enter the name of a prefix added in the selected OAuth configuration. You can also override those prefixes and create your own prefix.
  5. In the Reattempt error codes field, enter error codes to initiate a reattempt in case of a failed response. For example, use the error code "400" for the expired error code to inform MoEngage to reattempt creating a Connector campaign.
arrow_drop_down Test Campaign (Optional)

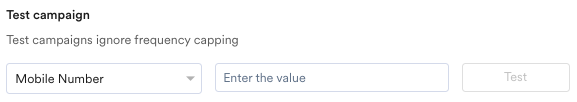

Test campaigns enable previewing the campaign on a test device to ensure that your notification is conveyed in the manner that you desire.

You can test the campaign you created by selecting any of the following options and providing the value for the attribute chosen for your test user:

  • Unique ID
  • Email ID
  • Mobile Number
  • Google Advertising Identifier
  • iOS Identifier For Advertising
  • Device Push Token
  • Custom Segment


Click Next or use the tabs on the top of the create campaign navigation to move to Step 3.

Step 3: Schedule and Goals

This section contains the following:

  • Delivery Schedule: Choose when the campaign should be delivered to your users and the periodicity of delivery.
  • Conversion Goals: Choose the conversion goals and revenue metrics to be tracked for the campaign.
  • Delivery Controls: Choose the advanced delivery control options such as throttling, frequency capping, and expiration settings for the notification.

Delivery Schedule

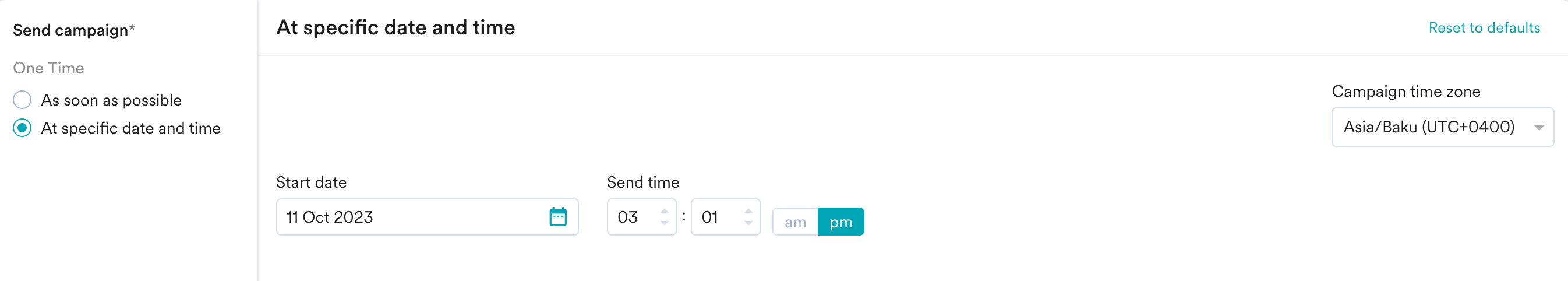

arrow_drop_down One Time

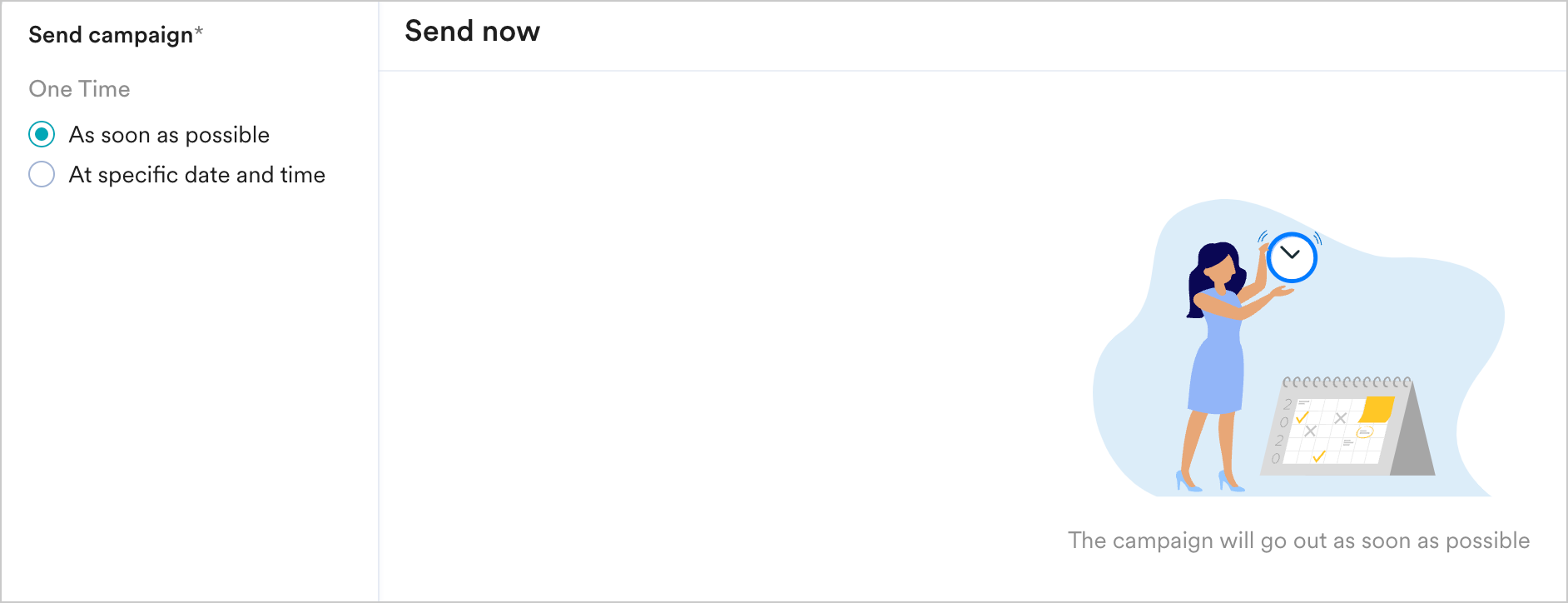

As soon as possible At specific date and time

Choose this option to send the campaign immediately to the target users.

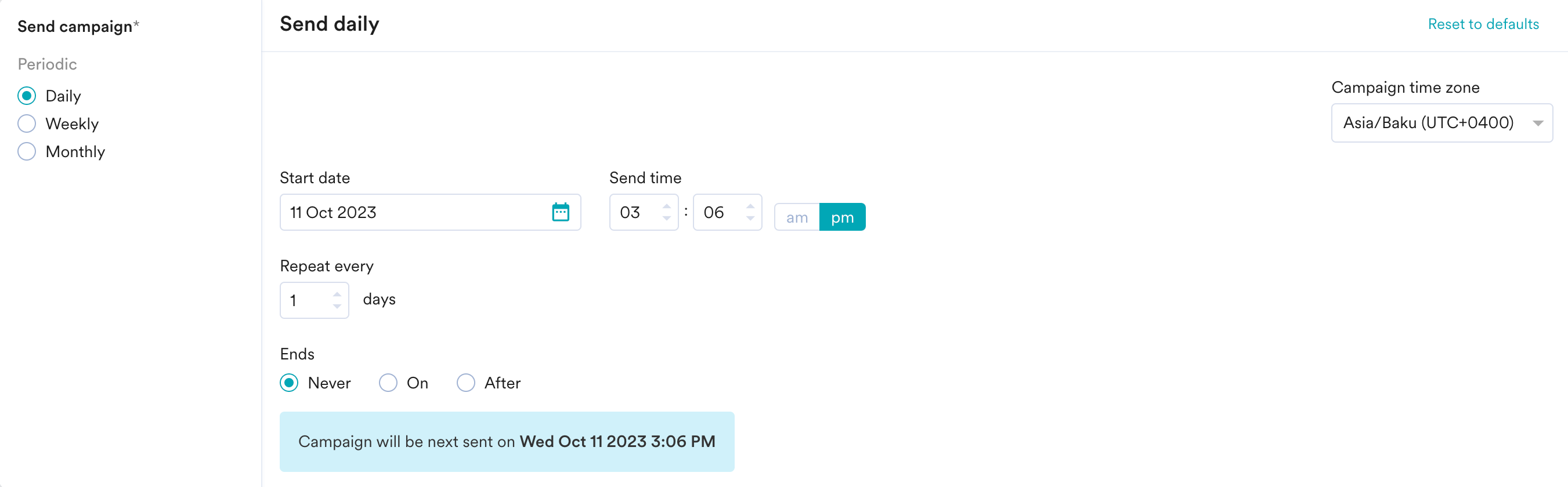

arrow_drop_down Periodic
Choose this option to send the campaign periodically on a specified date and time. The following fields are available in this section:
  • Campaign time zone: the timezone in which the campaign should be sent.
  • Start date: the date on which the campaign should be sent.
  • Send time: the time at which the campaign should be sent. Select am or pm depending on when the time of day at which the campaign should be sent.
  • Periodic: the periodicity of the campaign. You can choose from the following options available:
Periodicity Description
Daily Repeat every: This option allows you to specify the number of days after which the campaign should be repeated.
Weekly

Repeat every: This option allows you to specify the number of weeks for which the campaign should be repeated.

Repeat on: This option allows you to specify the day(s) of the week on which the campaign should be sent (For example, if you wish to send the campaign every Monday, Wednesday, and Friday, select these days in this option).

Monthly

Repeat every: This option allows you to specify the number of months for which the campaign should be repeated.

Repeat on: This option allows you do the following:

  • Days of month: Choose this option for repeating campaigns that are date specific. Select the date(s) of the month the campaign should be sent (For example, to send the campaign on the 5th and the 25th of a month, select the 5th and 25th in the calendar widget.).
    Note: If the selected date(s) do not exist in the month specified (as it is a shorter month), a campaign will be sent on the last date. (For example, if the 30th and 31st are selected and the month is February, one campaign would be sent on the 28th).
  • Days of week: Choose this option to specify the day(s) of the week on which the campaign should be sent (For example, if you wish to send the campaign every Monday, Wednesday, and Friday, select these days in this option).
    Note: In case of a day of the week not existing in a month (for example, fifth Saturday), the campaign would be skipped for that instance. And in case of overlap (for example, 4th Monday and last Monday), only one instance would be sent
    .
  • Ends: the date on which the campaign should end. The following options are available:
      • Never: the campaign runs daily.
      • On: the campaign ends on the end date specified in the End Date field.
      • After: the campaign ends after the number of occurrences specified in the occurrences field.

periodic connector campain.png

arrow_drop_down Event Triggered

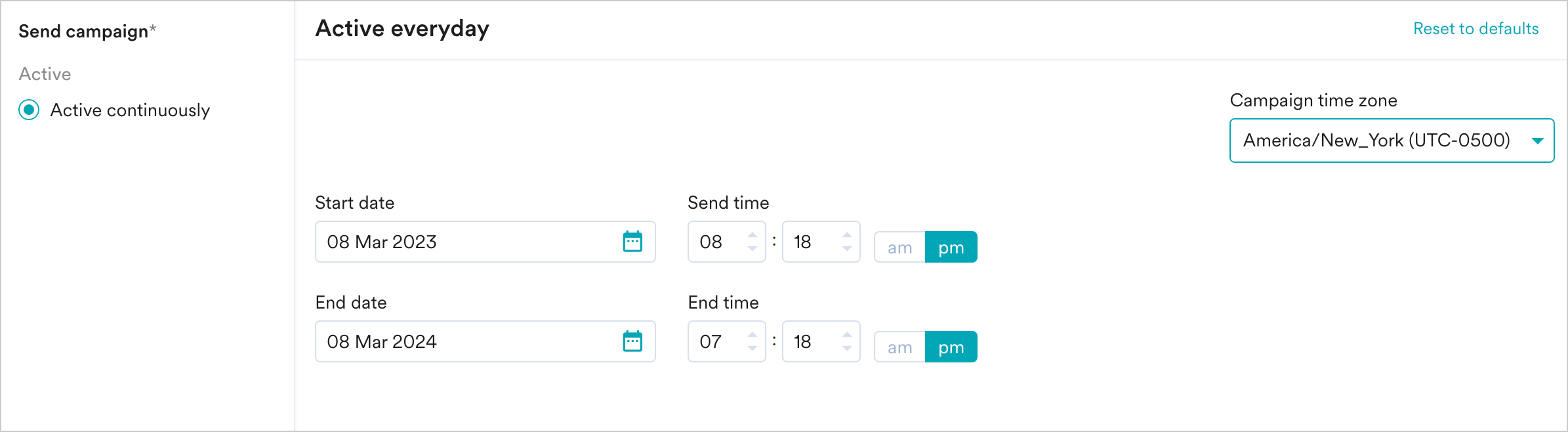

Choose this option to engage the right users (through segmentation) at the right time (through event triggering). The Active continuously option is selected by default under Send campaign and the following fields are available in this section:
  • Campaign time zone: the timezone in which the campaign should be sent.
  • Start date: the date on which the campaign should be sent.
  • Send time: the time at which the campaign should be sent. Select am or pm depending on when the time of day at which the campaign should be sent.
  • End date: the date on which the campaign should be stopped.
  • End time: the time at which the campaign should be stopped. Select am or pm depending on when the time of day at which the campaign should be stopped.


When will event-triggered campaigns be sent?

The campaign will be sent only when:

  • The event property or attribute, which is used to create these type of triggers (such as flight_time in previous example), is in a valid date-time format. If it is not in date-time format, the string should have data in one of the supported formats. If the selected attributes do not contain data in any of these formats, the campaigns are not sent to the users.
  • The date or time value from the attribute is greater than the time at which the trigger condition is fulfilled.
  • The date or time value from the attribute is less than 30 Days + the time at which the trigger condition is fulfilled. For example, if your trigger condition is fulfilled at date D, the notification is sent only when the attribute value is less than D+30.
  • The intelligent delay optimization (With Delay) does not work for campaigns sent on relative timing.

Conversion Goals

You can add conversion goals to track the business metrics for your campaigns. You can track a maximum of five conversion goals. You can choose any app event as a conversion goal activity and set more than one conversion goal. The first goal will be treated as a primary goal.

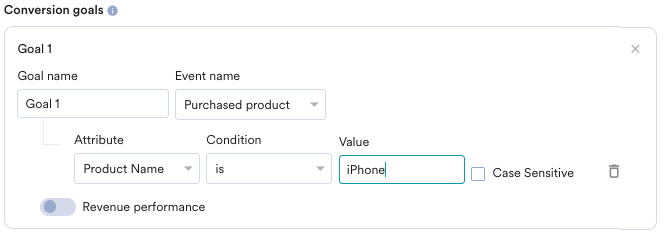

For example, if you want to track the number of customers who have purchased an iPhone after your campaign was sent. (Event: Purchase event, Product: iPhone). Your conversion goal setup might be similar to the following image:


With multiple conversion goals, you can track more than one business metric or visualize a funnel for your user actions. For example, if you want to check the following, you can do so with multiple conversion goals.

  • How many users have viewed the product page?
  • How many of them added that product to the cart?
  • How many of them made a successful order?
arrow_drop_down Tracking Revenue Performance (Optional)

With MoEngage, you can track the revenue generated by your campaigns. For example, you can track the revenue generated by your product after sending a communication. To track revenue performance, enable the Revenue performance toggle for the conversion goal for which you want to track the revenue.

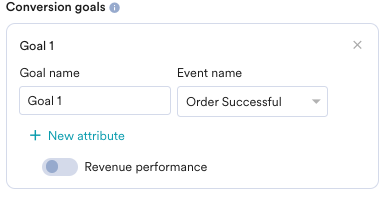

In the example here, to track revenue for orderSuccessful events, you must enable the Revenue performance toggle.

After choosing the goal, you can select the numeric attribute that captures the order's total monetary value. In this example, cartValue contains the total order value. You can choose the currency in which your monetary value is being reported. RevenuePerformance.png

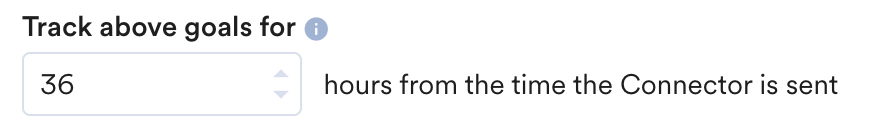

Set Attribution window: You can set an attribution window (a time period or window that is calculated since the user has received the campaign, for which you want to attribute the conversion goals to a specific campaign.) By default, it is set for 36 hours. track goals connector campain.png

Remove Duplicate Users

info

Information

Applicable to One Time and Periodic campaigns only.

Select the user attributes using which you can delete the duplicate users.

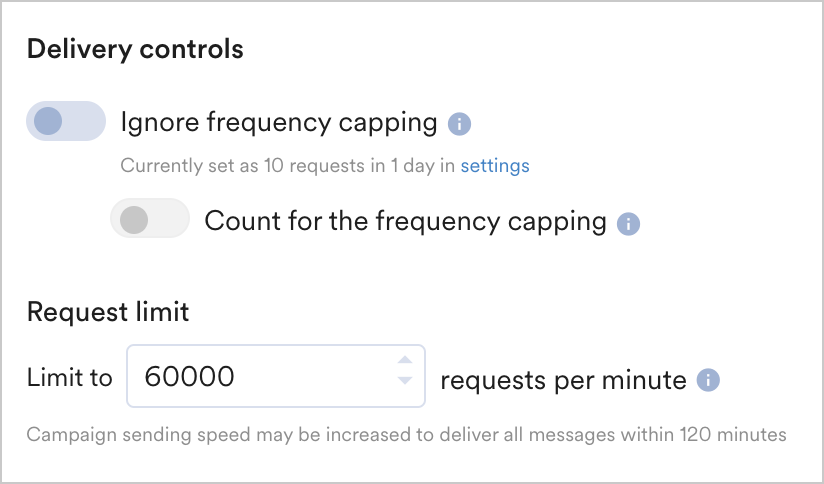

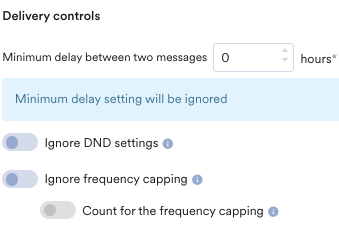

Delivery Controls

Delivery Control for One Time and Periodic Campaigns Delivery Control for Event-Triggered Campaigns

This section contains the following options:

  • Ignore frequency capping: Enable this toggle to ignore the frequency capping limit for this Connector campaign. For more information, refer to Frequency Capping.
  • Count for the frequency capping: Enable this toggle if you want this connector to be counted for frequency capping limit.
  • Request limit: Set the request limit to send the Connector campaign notifications. The maximum throughput is 200000 requests per minute.
    Note: If the estimated time to send the campaign exceeds 4 hours, MoEngage automatically increases the requests per minute to finish sending in 4 hours. If multiple campaigns are running in parallel, campaigns might be delayed.


Next Steps
