Create Push Campaigns

To create a push campaign,perform the following steps:

info

Information

If your system requires IP whitelisting, refer here before setting up the Push Campaign.
  1. Navigate to the MoEngage Dashboard and select Engage -> Campaigns from the left navigation.
  2. Click mceclip2.png at the top right corner of the All Campaigns Page.
  3. Select Push from the Outbound channels listed.
  4. Select one of the following campaign delivery types:
    • One Time
    • Periodic
    • Event Triggered
    • Business Event Triggered
    • Device Triggered
    • Location Triggered

    For more information about delivery types, refer to Delivery Types.

Steps to Create a Push Campaign

There are three steps to creating a push campaign, and they are:

  1. Target users: Define the target audience for the campaign
  2. Content: Define the content of the push notification to be sent
  3. Schedule and Goals: Define the campaign's delivery schedule and goals

Step 1: Target Users

This section contains the following:

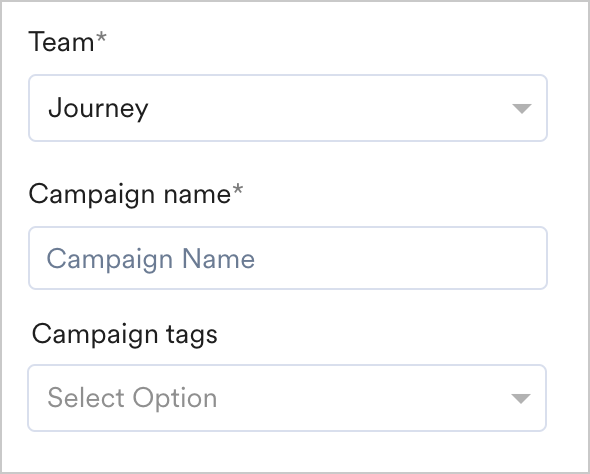

Campaign Details

The campaign details section contains the following fields:

    • Team -If your organization has teams enabled, select the Team in the dropdown. For more information, refer to Teams in MoEngage.
    • Campaign name - Type the name of the campaign to manage and identify the campaign.  The campaign name must have at least five characters, and the limit is 256.
    • Campaign tags - Select campaign tags from the drop-down list.  You can select up to 5 tags. For more information, refer to Campaign Tags.
 Push_CampaignDetails (1).png
arrow_drop_down Event Triggered Campaigns

Event-triggered campaigns allow you to send personalized notifications triggered by different user action events. For example, you can remind users about the item they added to the cart but have not purchased. For more information on creating such campaigns, refer to Create an Event-Triggered Campaign.

arrow_drop_down Business Event Triggered Campaigns

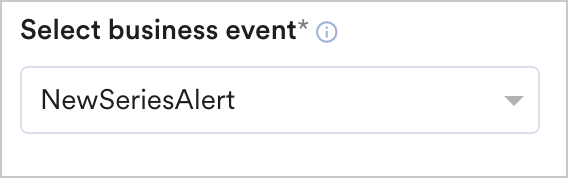

For business event-triggered campaigns, you can select the business event to be mapped to the campaign using the Select business event dropdown. The dropdown contains all the business events created in your MoEngage account.


Once the business event is selected, the event attributes associated with the business event are available in the segmentation filters. Business event attributes are available in the following segmentation filters:

  • segment by user property - you can map the user property to the business event attribute
  • segment by user behavior - you can map the attribute of an event executed by the user to that of the business event attribute
  • segment by user affinity- you can map the attribute of an event executed by the user to that of the business event attribute
info

Note

      • The data types of the user attribute or event attribute chosen should match with that of the business event attribute for segmentation to work.
      • Show count is disabled for business event-triggered campaigns as business events are modeled to run on dynamic segmentation (based on the values with which the business event is triggered).
arrow_drop_down Location Triggered Campaigns
Click AddGeoFence.png. In the Add Geofence popup that opens, do the following:
  1. Add the Geofence name.
  2. Select the trigger criteria from the user action drop-down to trigger the push message on entry/exit/stay inside the geo-fence. The following options are available:
      • User enters the Geofence - A message will be triggered when the user enters the defined perimeter.
      • User exits the Geofence - A message will be triggered when the user exits the defined perimeter
      • Dwell based (user stays in Geofence) - A message will be triggered when a user enters and stays inside the defined perimeter for X mins. Please note that this type of trigger is supported only for Android. If your customers receive many alerts when driving briefly past your geofences, dwell-based fences are very effective in reducing this spam.
  3. Specify the Geofence by searching for the location. The Latitude and Longitude are auto-populated in this case. Alternatively, you can provide the following information to specify the geofence:
    • Latitude
    • Longitude
    • Radius (in meters) - Enter an appropriate radius parameter for the geo-fence to be triggered. For example, if a geofence of 7 km is set around Foley Sq in New York, the push notification will be triggered based on the criteria chosen (entry/exit/dwell).
  4. Click Done to add the geofence. You can add multiple geo-fences with separate messages and locations for each. Remove a geofence by clicking the "x" sign in the geo-fence list.
info

Information

AB variation/Locales is not supported in Location-triggered and API triggered campaigns.

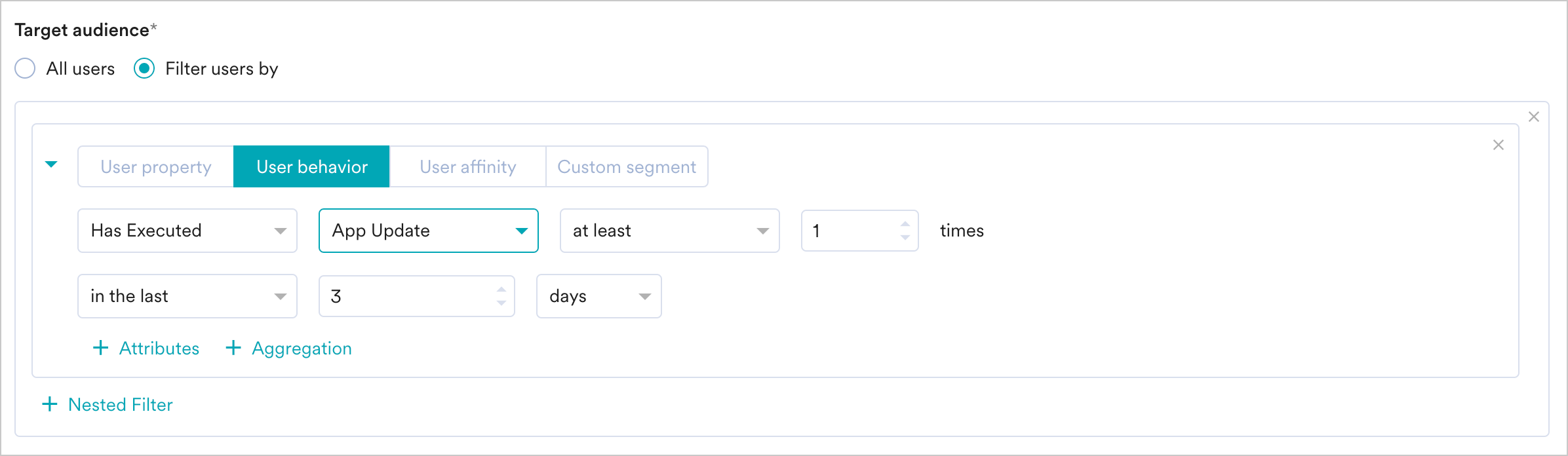

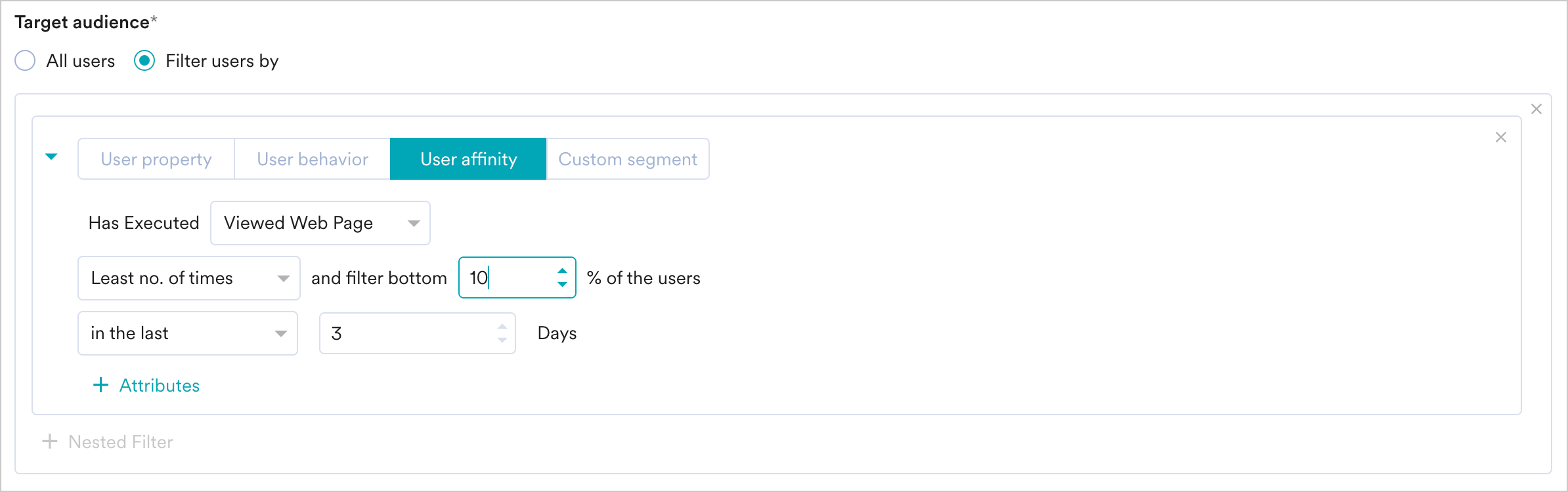

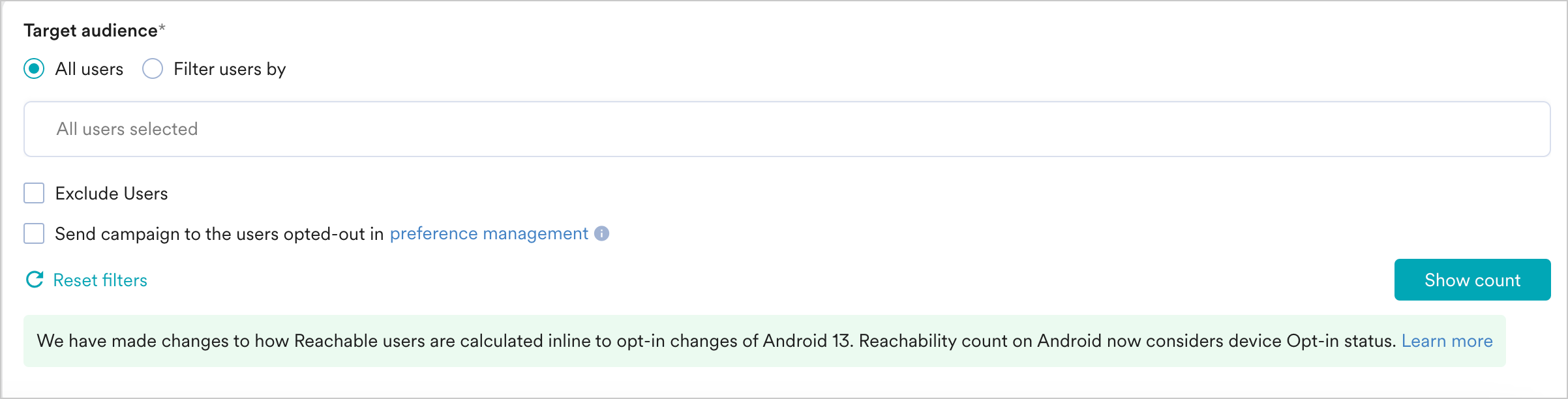

Target Audience

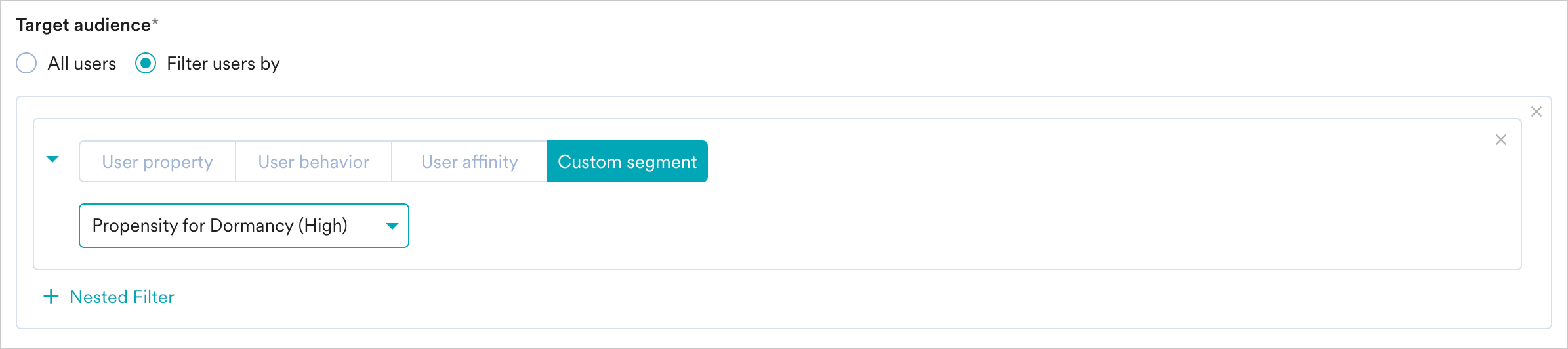

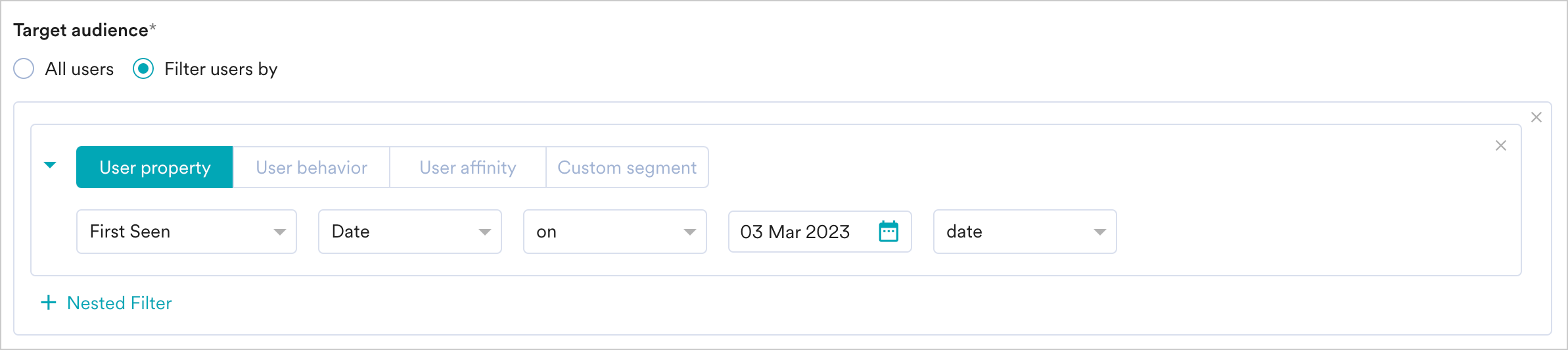

This section contains segmentation filters that help you choose the target audience for your campaign. The following options are available:

All Users Filter by User Property Filter by User Behavior Filter by User Affinity Filter by Custom Segment

This filter option allows you to send the campaign to all the app users. When you use this option, you cannot add multiple filters.


If teams are enabled for your account, the segmentation criteria specified for the team for which you are creating will get appended to the campaign with an AND condition. For more information, refer to Teams in MoEngage.

After choosing the filter criteria, you can do the following as well:

  • Create and combine multiple user property rules, user activity rules, and custom Segment rules to create a complex user segment using this option.

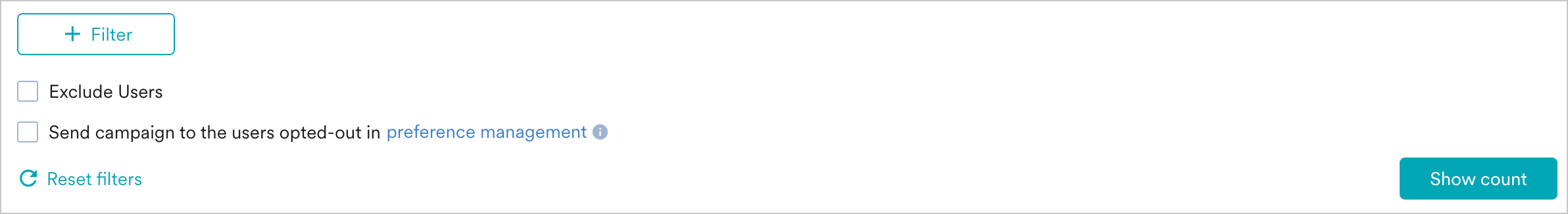

      • Click + Filter.
      • Click AND or OR.
      • Select the attribute or event and define the filter conditions.
  • Exclude Users - Check the Exclude Users checkbox to define the filter criteria for users to be excluded from the campaign.
  • Send campaign to the users opted out in preference management - Check this option to include users opted out in preference management for the campaign. For more information, refer to Preference Management.
  • Reset Filters - Click this option to reset the segmentation filters.
  • Show Count - Click Show Count to display the total number of users who are currently in the configured segment.

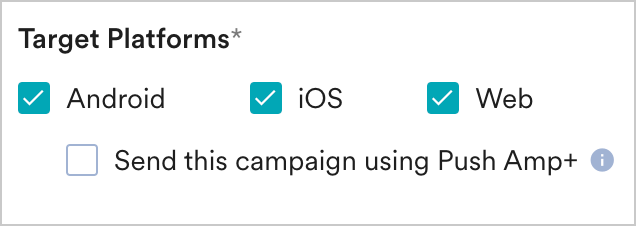

Target Platforms

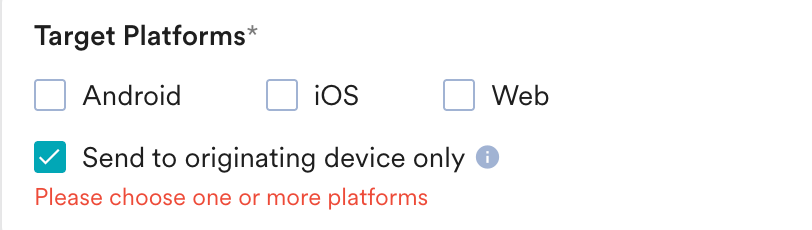

This section lets you choose the target platforms for your campaign. The following options are available:

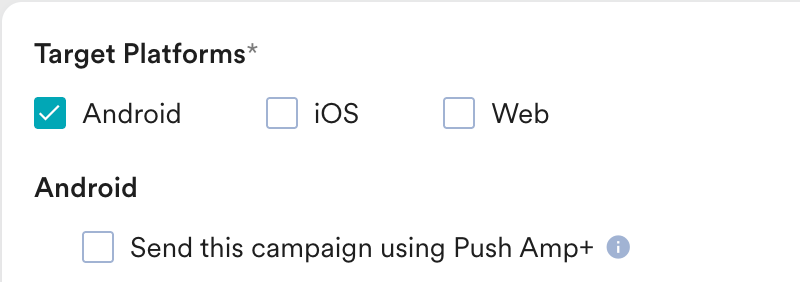

  • Android - Select this option to send campaigns only to Android devices. When this is selected, you get the following option: Send this campaign using Push Amp+. Push Amp+ and Delivery Impact.

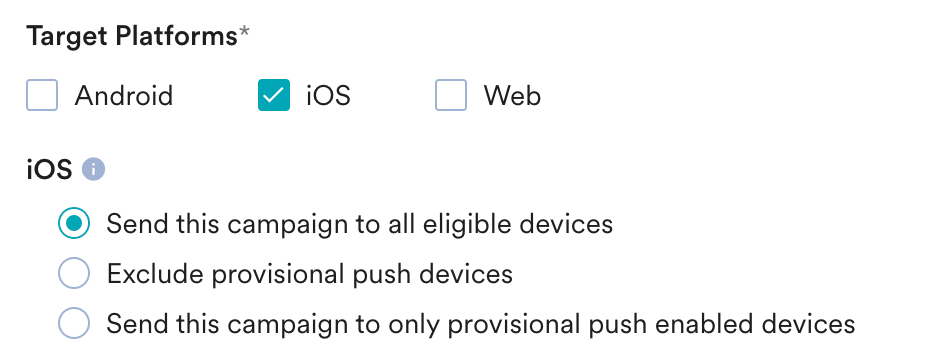

  • iOS - Select this option to send campaigns only to iOS devices. When this is selected, you get the following options:
    • Send this campaign to all eligible devices
    • Exclude provisional push devices
    • Send this campaign to only provisional push enabled devices. For more information refer to iOS Push Permission and Reachability.

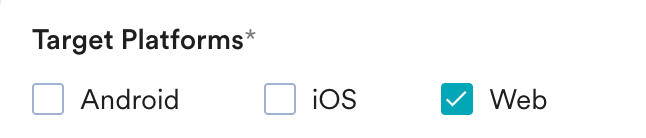

  • Web - Select this option to send a Web Push campaign. This option is available only for One Time and Periodic Push campaigns. For more information, refer to Web Push Campaigns

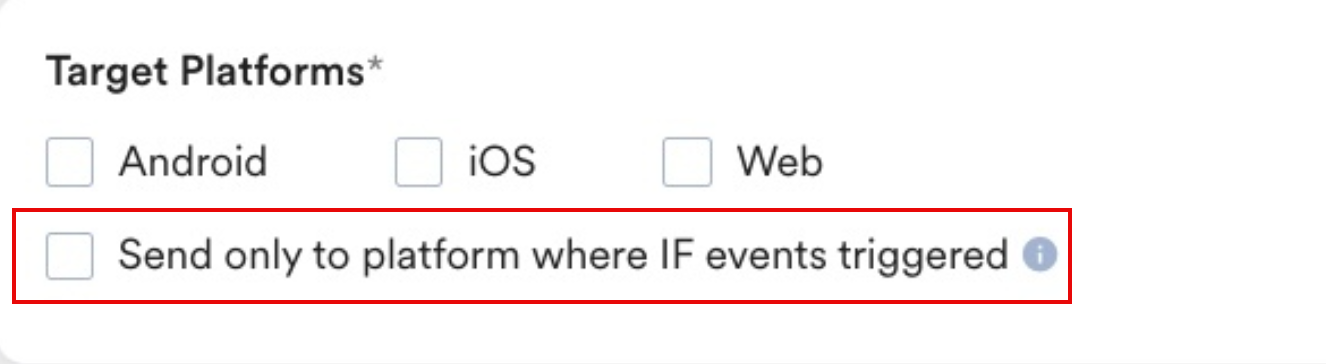

  • Send only to a platform where IF events triggered - This option is available only for Event Triggered Campaigns. Select this option to send the campaigns to users only when the IF event is triggered.

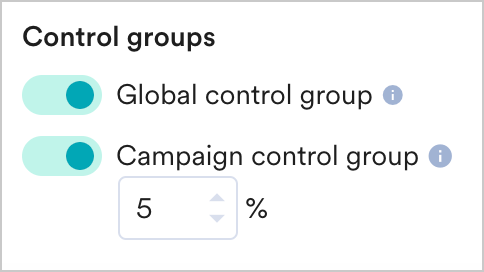

Control Groups

This section contains information about control groups for the campaign. To exclude users in the control groups, do the following:

    • Enable the  Global control group toggle to exclude the users in the control group from the campaign's target segment.
    • Enable the Campaign control group to exclude a fixed percentage of users in the campaign from the campaign's target segment. Specify the percentage of users to be excluded from the campaign in the box below the toggle. Note: This option is not available for location and device triggered campaigns.
    • For more information about control groups, refer to Control Groups.

Click Next or use the tabs on the top of the create campaign navigation to move to Step 2.

Step 2: Define Content

This section contains various templates that you can choose from to define the content of the push notification. Select one of the templates and follow the steps described in Push Templates.

MoEngage recommends that you verify your push message displayed in the preview and then click next to set the schedule and goals of the campaign.

arrow_drop_down Test campaign (Optional)

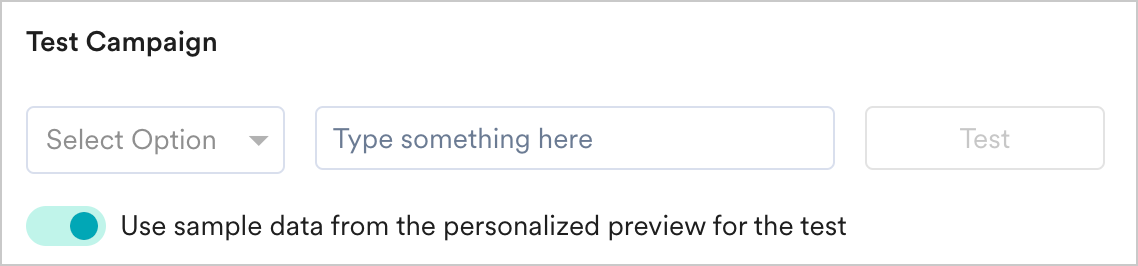

Test campaigns enable previewing the campaign on a test device to ensure that your notification is conveyed in the manner that you desire.

You can test the campaign you created by selecting any of the following options and providing the value for the attribute chosen for your test user.

  • Unique ID
  • Email ID
  • Mobile Number
  • Google Advertising identifier
  • iOS Identifier for advertising
  • Device Push Token
  • Custom Segment

TestCampaign (1).png

For business event-triggered campaigns, you will be asked to enter the attributes with which the event should be triggered, as shown below. If you have mapped any business event attribute(s) to user attribute(s) or event attribute(s) in segmentation, these values have to be passed while testing the campaign. If they are not passed, the test campaign will fail.

Step 3: Scheduling and Goals

This section contains the following:

      • Delivery Schedule - Choose when the campaign should be delivered to your users and the periodicity of delivery.
      • Pre-compute audience - this is an optional configuration for time-sensitive campaigns.
      • Conversion Goals - Choose the conversion goals and revenue metrics to be tracked for the campaign.
      • Delivery Controls - Choose the advanced delivery control options such as throttling, frequency capping, and expiration settings for the notification.

Delivery Schedule

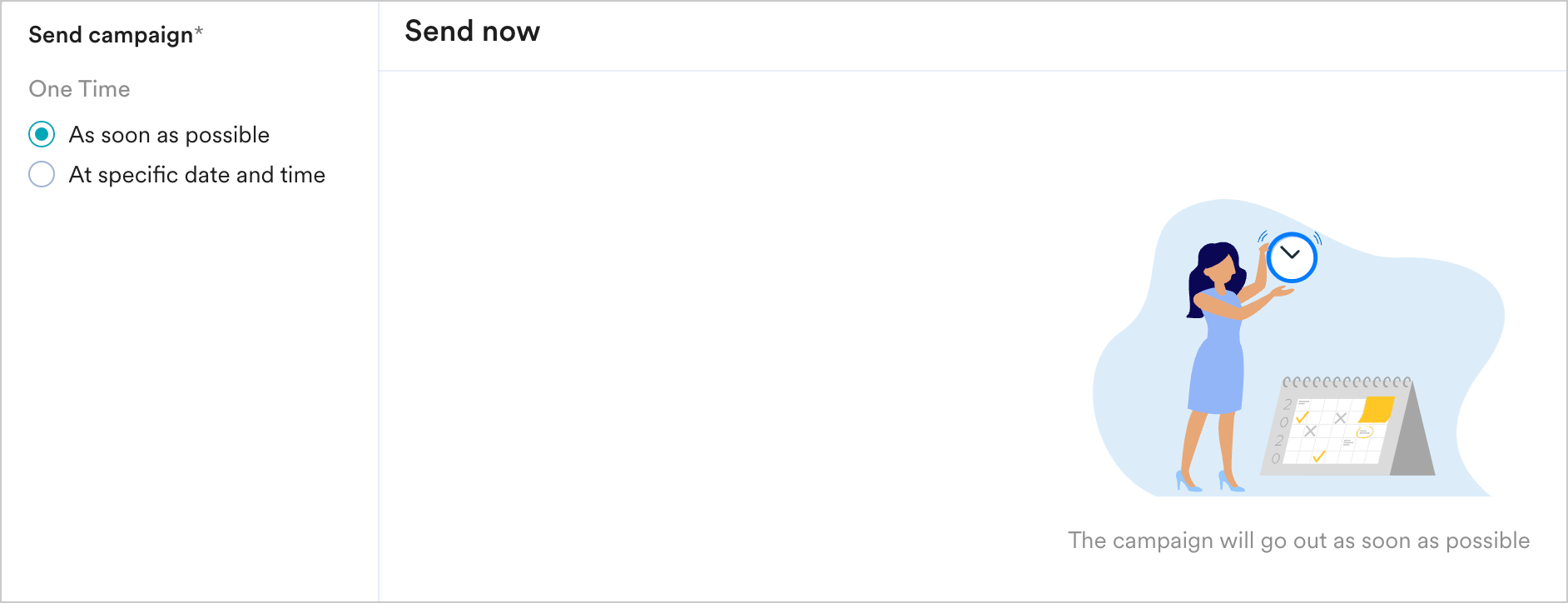

arrow_drop_down One Time

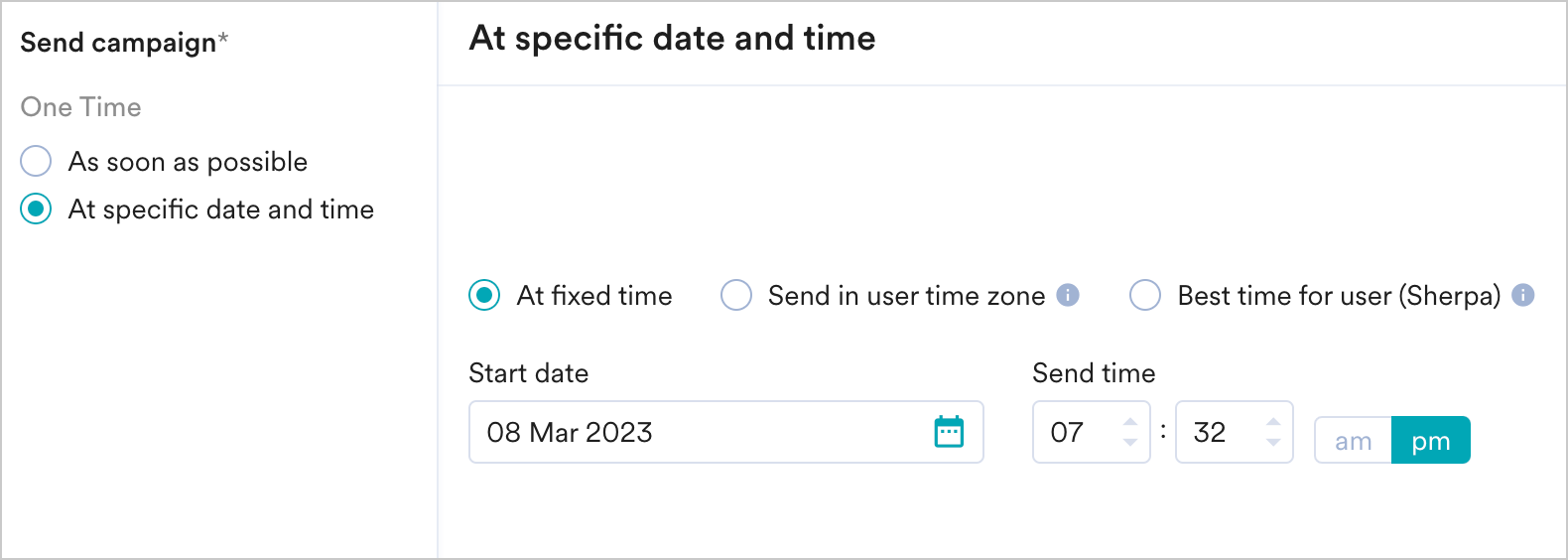

As soon as possible At specific date and time

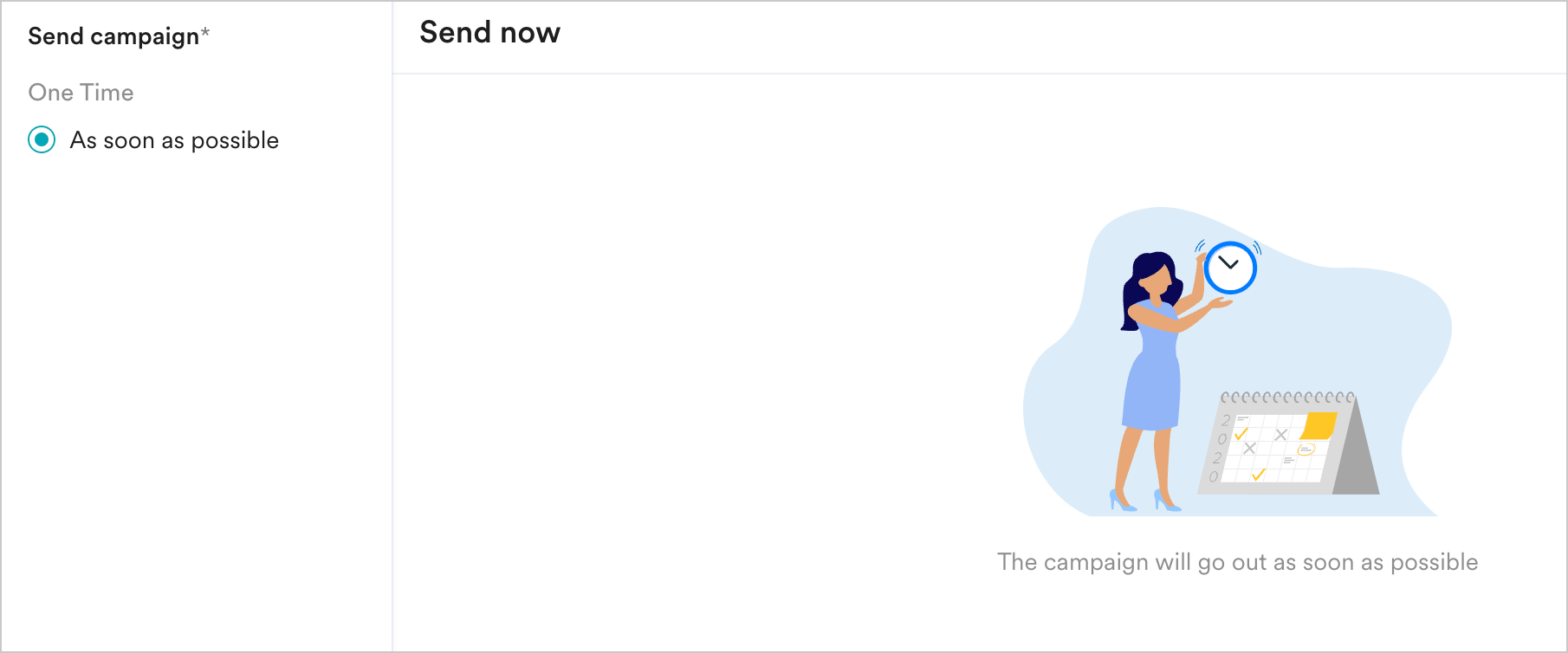

Send the campaign immediately to the target users.

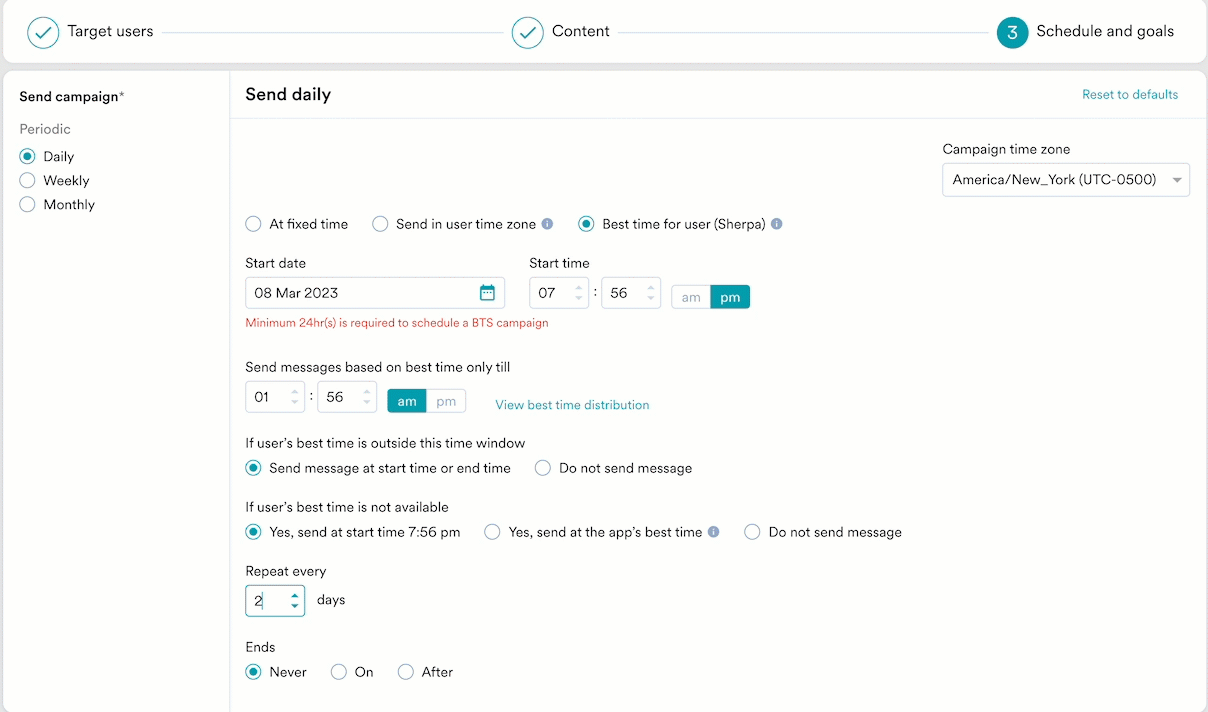

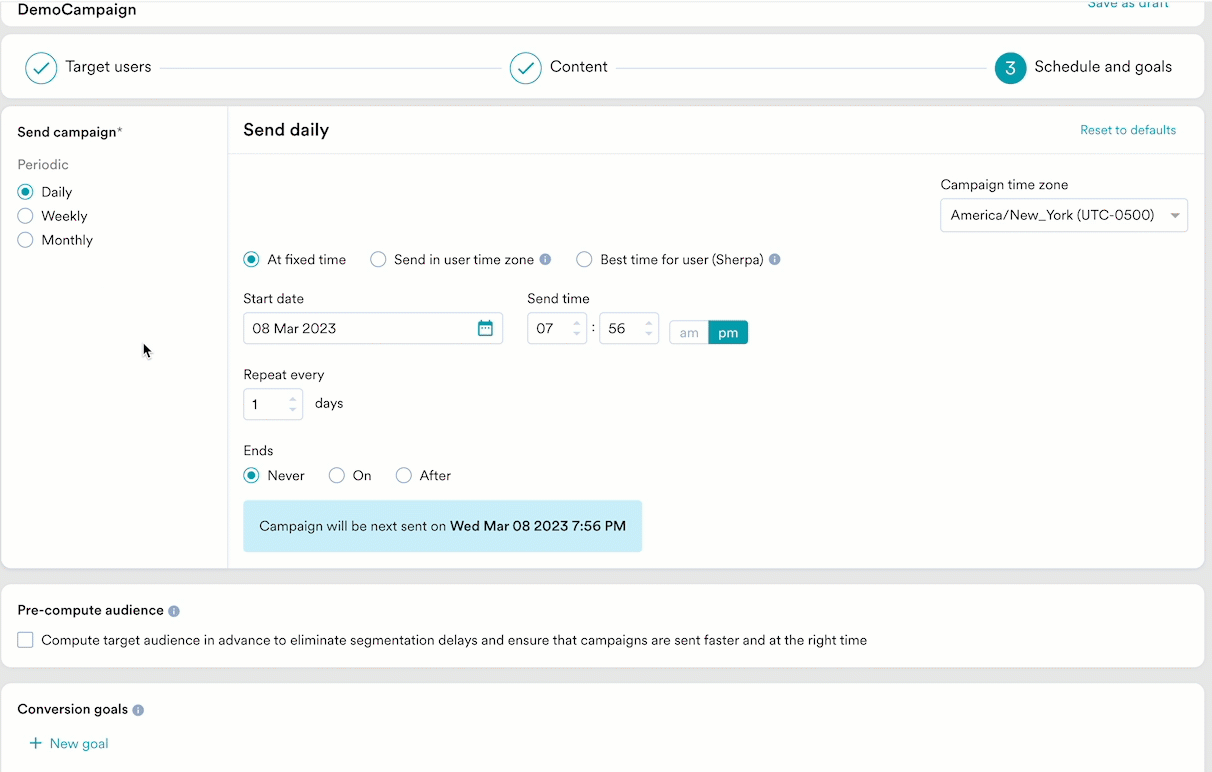

arrow_drop_down Periodic
At fixed time Send in user timezone Best time for user(Sherpa)
Choose this option to send the campaign on a specified date and time. The following fields are available in this section:
  • Campaign timezone - the timezone in which the campaign should be sent.
  • Start Date - the date on which the campaign should be sent.
  • Send Time - the time at which the campaign should be sent. Select am or pm depending on when the time of day at which the campaign should be sent.
  • Periodic - the periodicity of the campaign. You can choose from three options: Daily, Weekly, and Monthly, from the radio buttons available to the left of the screen.
    Periodicity Description
    Daily Repeat every - This option lets you specify the number of days after which the campaign should be repeated.
    Weekly

    Repeat every - This option lets you specify the number of weeks after which the campaign should be repeated.

    Repeat on - This option lets you specify the day(s) of the week on which the campaign is to be sent (For example, if you wish to send the campaign every Monday, Wednesday, and Friday, select these days in this option).

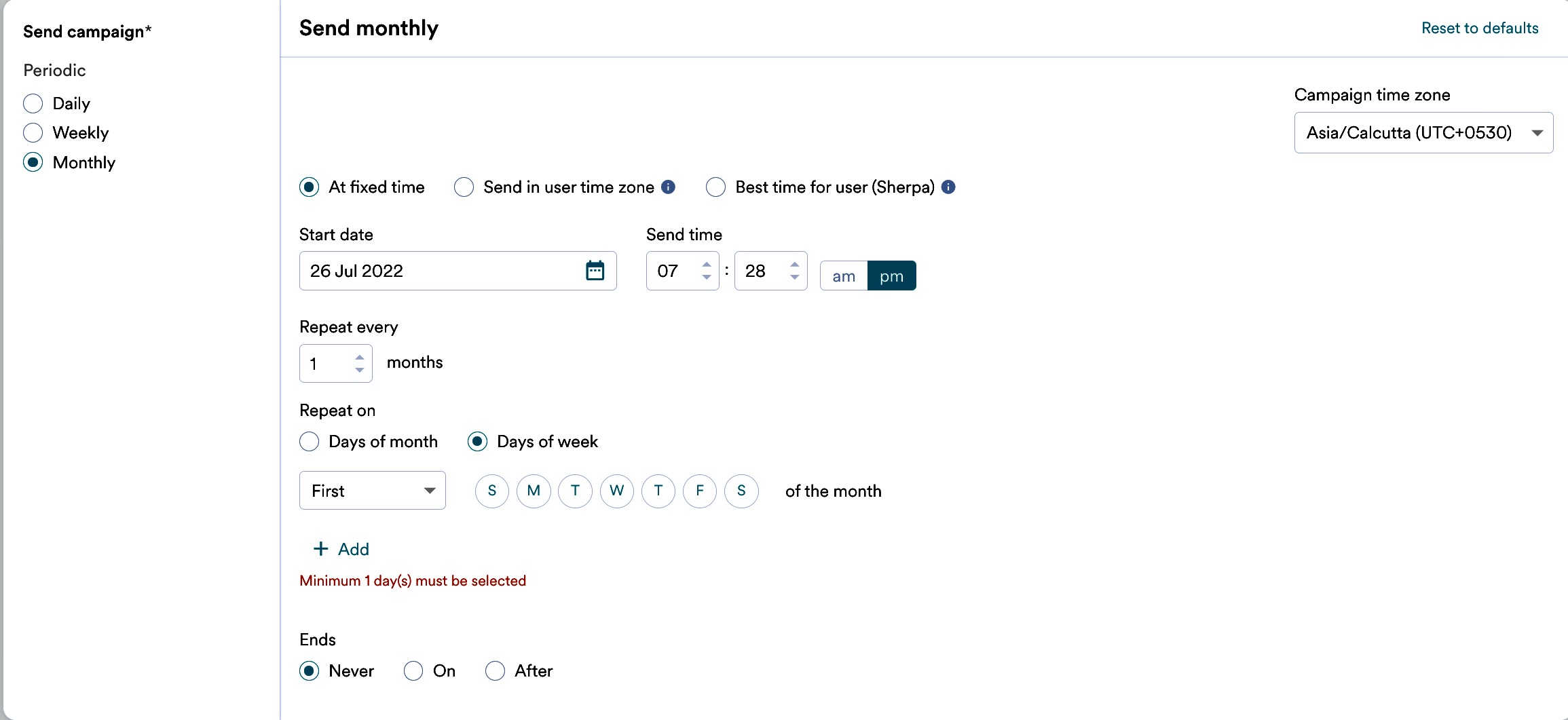

    Monthly

    Repeat every - This option lets you specify the number of months after which the campaign should be repeated.

    Repeat on - This option lets you do the following:

    • Days of month - Choose this option for repeating campaigns that are date specific. Select the date(s) of the month the campaign is to be sent(For example, to send the campaign on the 5th and the 25th of a month, select the 5th and 25th in the calendar widget.).
      Note: If the selected date(s) doesn't exist in the month specified (as it is a shorter month), a campaign will be sent on the last date. (For example, if the 30th and 31st are selected and the month is February, one campaign would be sent on the 28th).
    • Days of week -  Choose this option to specify the day(s) of the week on which the campaign is to be sent (For example, if you wish to send the campaign every Monday, Wednesday, and Friday, select these days in this option).


  • Ends - the date on which the campaign will end. The following options are available:
      • Never - the campaign will be scheduled to run daily.
      • On - the campaign will end on the end date specified in the End Date field.
      • After - the campaign will end after the number of occurrences specified in the occurrences field.
arrow_drop_down Event Triggered

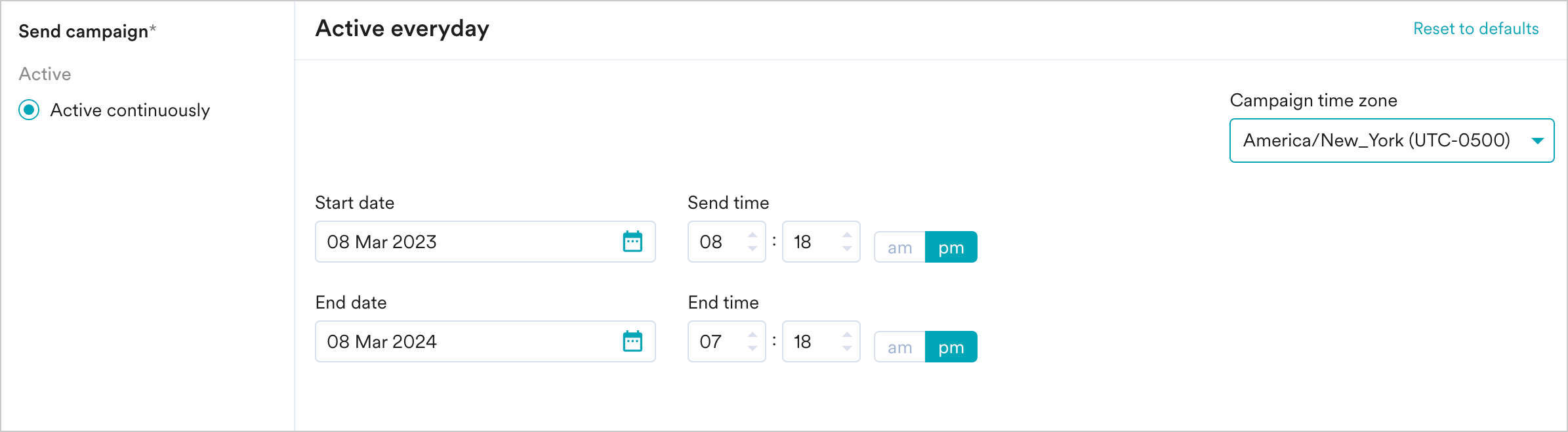

Click Active continuously under Send campaign and do the following:
Field Description
Campaign Time Zone

Select the campaign time zone in which the campaign is sent
Start Date

Set the start date at which the campaign is sent.
Send Time
      1. Set the send time at which the campaign is sent.
      2. Select AM or PM
End Date Set the end date at which the campaign is stopped.
End Time
      1. Set the end time at which the campaign is stopped.
      2. Select AM or PM

When will event triggered campaigns be sent?

The campaign will be sent only when:

  • The event property/attribute which is being used to create these types of triggers (like the flight_time example), is in a valid date-time format. If it is not in date-time format, the string should have data in one of the supported formats. If the selected attributes do not contain data in any of these formats, the campaign won't be sent to your users.
  • The date/time value from the attribute is greater than the time at which the trigger condition is fulfilled
  • The date/time value from the attribute is less than 30 Days + the time at which the trigger condition is fulfilled e.g. If your trigger condition is fulfilled at date D, your notification will be sent only when the attribute value is less than D+30
  • The Intelligent Delay Optimization does not work for campaigns sent on the relative timing.


arrow_drop_down Business Event Triggered
Click Active continuously under Send campaign and do the following:
Field Description
Campaign Time Zone

Select the campaign time zone in which the campaign should be sent.
Start Date

Set the start date at which the campaign should be sent.
Send Time

Set the send time at which the campaign should be sent. Select AM or PM
End Date Set the end date at which the campaign should be stopped.
End Time

Set the end time at which the campaign should be stopped. Select AM or PM

When will business event-triggered campaigns be sent?

The campaign will be sent only when:

  • The data type(s) of the user attribute(s) or event attribute(s) mapped to data type(s)the business event's attribute(s) match.
  • The attribute(s) used in segmentation is passed in the trigger request for the business event.
  • The Intelligent Delay Optimization does not work for campaigns sent on the relative timing.


arrow_drop_down Device Triggered
Click Active continuously under Send campaign and do the following:
Field Description
Campaign Time Zone

Select the campaign time zone in which the campaign is sent
Start Date

Set the start date at which the campaign is sent.
Send Time
  1. Set the send time at which the campaign is sent.
  2. Select AM or PM
End Date Set the end date at which the campaign is stopped.
End Time
  1. Set the end time at which the campaign is stopped.
  2. Select AM or PM


arrow_drop_down Location Triggered

Location campaigns are started as soon as the campaign is created and are triggered when a user satisfies the location/radius criteria. The campaign's frequency can be limited by setting an upper cap on the number of times to display the message in a defined time interval.

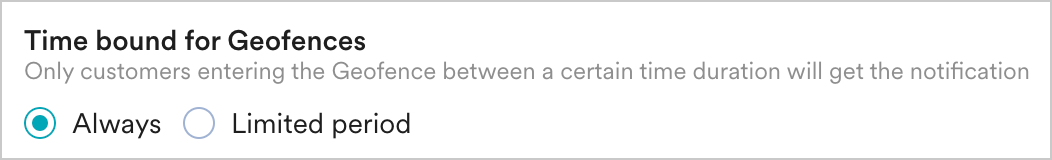

Location triggered campaigns have the option to include time-bounds. The following options are available for Time bound for Geofences:

  • Limited -The user will get a notification only between specified time intervals for a time zone. Multiple time bounds can be entered here (for example, cover both evening and morning times).
  • Always - This




Pre compute Audience

This option lets you pre-compute the target audience for time-sensitive campaigns with complex segments and unusually high volumes and ensure that campaigns are sent faster and at exactly the scheduled time to the target users, without even a few seconds of delay. For more information, refer to Pre-Compute Segments and send Push at the right time.


Conversion Goals

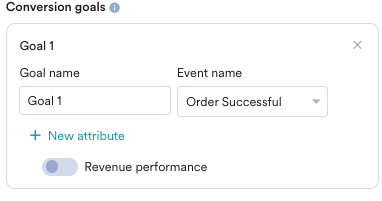

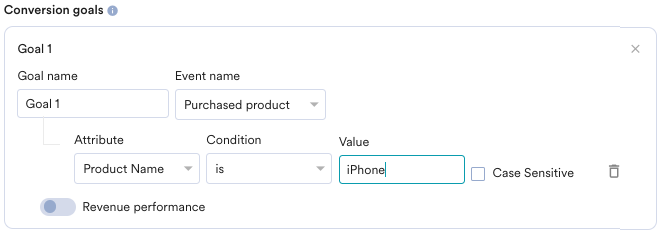

You can add conversion goals to track the business metrics for your campaigns. You can track up to five conversion goals. You can choose any app event as a conversion goal activity and set more than one conversion goal. The first goal will be treated as a primary goal.

For example, if you want to track the number of customers who've purchased an iPhone after your campaign was sent. (Event - purchase event, Product - iPhone). Your conversion goal set-up might look similar to the image shown below with the following details:

      • Goal Name - iPhonePurchase
      • App Event you wish to track- Made Purchase
      • Event Attribute/Property - product is event attribute/property
      • Value of Event Attribute/Property - iPhone


With multiple conversion goals, you can track more than one business metric or visualize a funnel for your user actions. For example, if you want to check the following, you can do so with multiple conversion goals.

  • How many users have viewed the product page?
  • How many of them added that product to the cart?
  • How many of them made a successful order?
arrow_drop_down Tracking Revenue Performance (Optional)

With MoEngage, you can track the revenue generated by your campaigns. For example, you can track the revenue generated by your product after sending a communication. To track revenue performance, enable the Revenue Performance toggle for the conversion goal for which you want to track the revenue.

In the example here, to track revenue for orderSuccessfulevents, the Revenue performance toggle needs to be enabled. After choosing the goal, you can select the numeric attribute that captures the order's total monetary value. In the example below, cartValue contains the total order value. You can also choose the currency in which your monetary value is being reported. TrackingRevenuePerformance.png
After you choose the goal, you can choose the numeric attribute which captures the total monetary value of the order. In the example, cartValue contains the total order value. You can also choose the currency in which your monetary value is being reported. RevenuePerformance.png

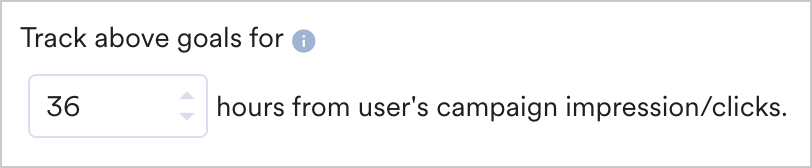

Set Attribution window - You can set an attribution window ( a time period or window that is calculated from the time at which the user has received the campaign, for which you want to attribute the conversion goals to a specific campaign.) As a default, it is set for 36 hours. Say, for the example above, we set it to 5 hrs. AttributionWindow.png

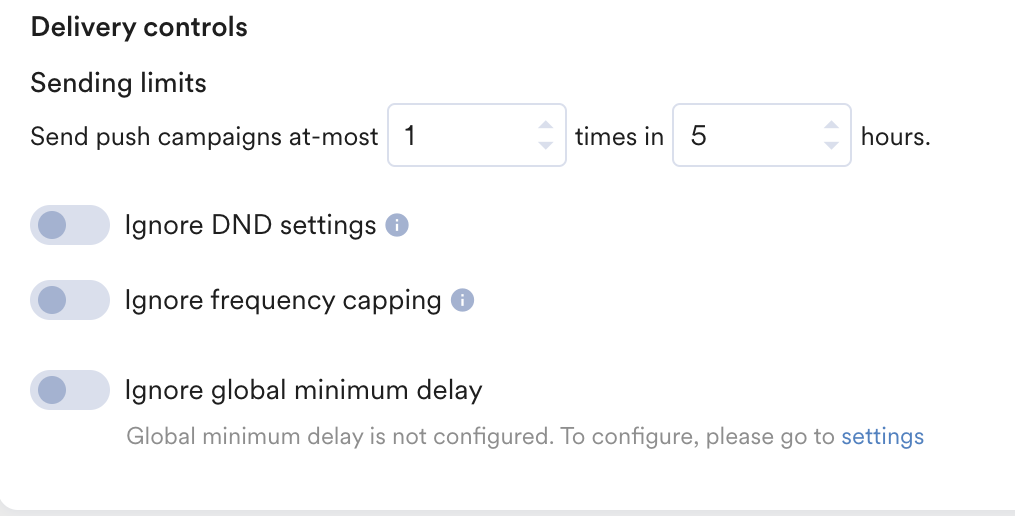

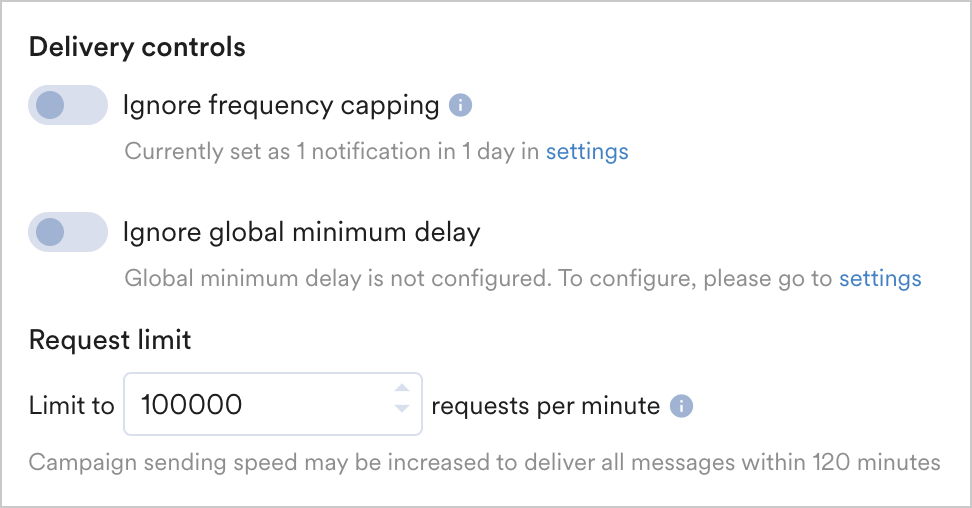

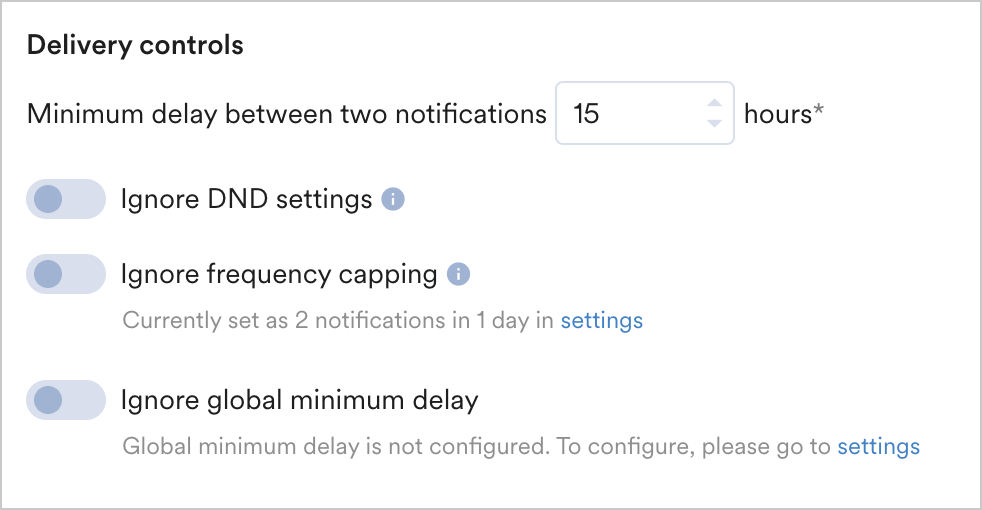

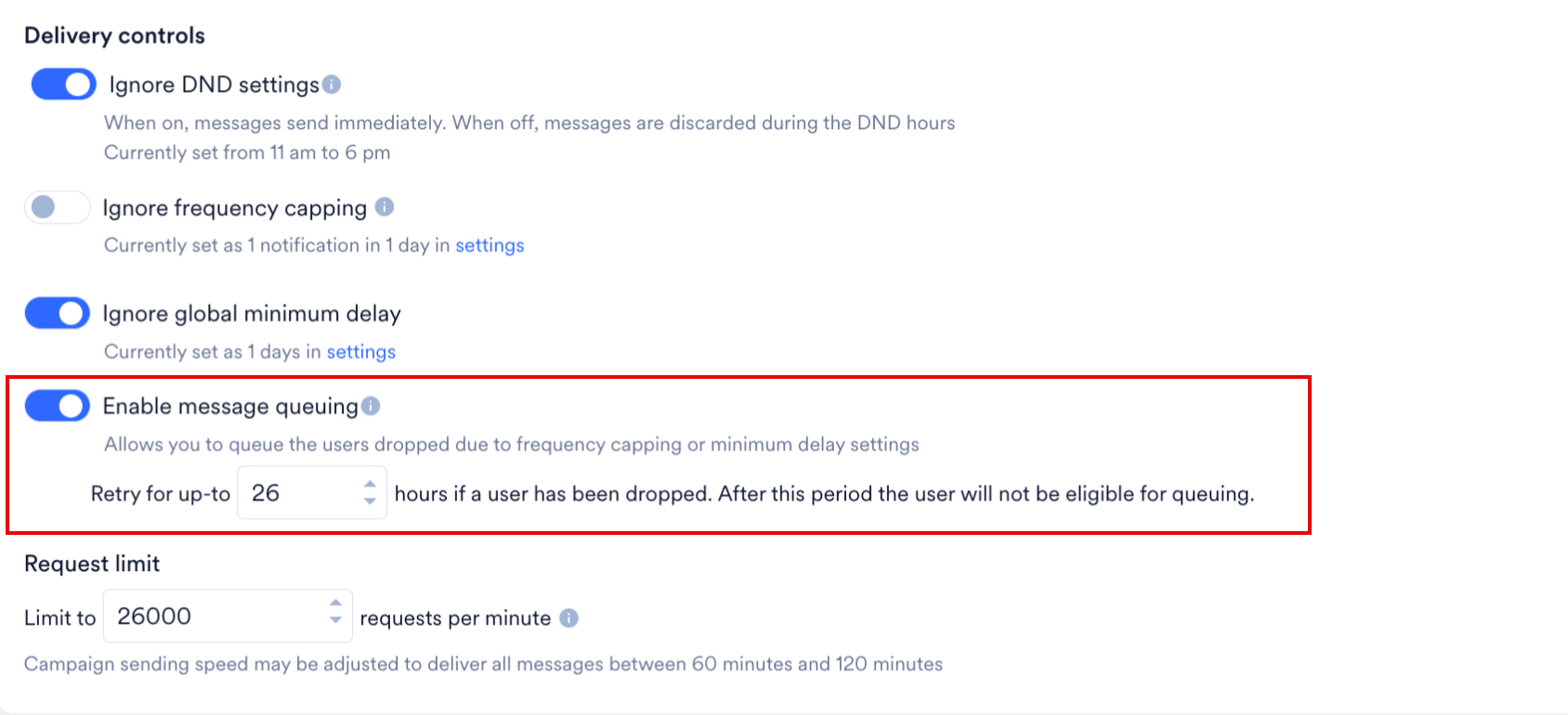

Delivery Controls

Delivery Controls for All Campaigns Delivery Controls for Triggered Campaigns

This section contains the following options:

  • Ignore frequency capping - Enable this toggle to ignore the frequency capping settings. For more information, refer to Frequency Capping.
  • Ignore global minimum delay - Enable this toggle to ignore the settings for the minimum delay set for Push notifications.
  • Throttle -Set the throttling for Push notifications. For more information, refer to Push Throttling.
    info

    Information

    With the reduction in the default FCM API rate limits to 600,000 RPM, we are changing the maximum allowed throttle speed for Push notifications to 500,000 RPM to ensure a single campaign does not breach the project limit. This change will apply to new and existing campaigns. You may still see drops because of multiple campaigns being triggered together. For more information, refer to Changes in Sending Speed with Private Key Configuration.

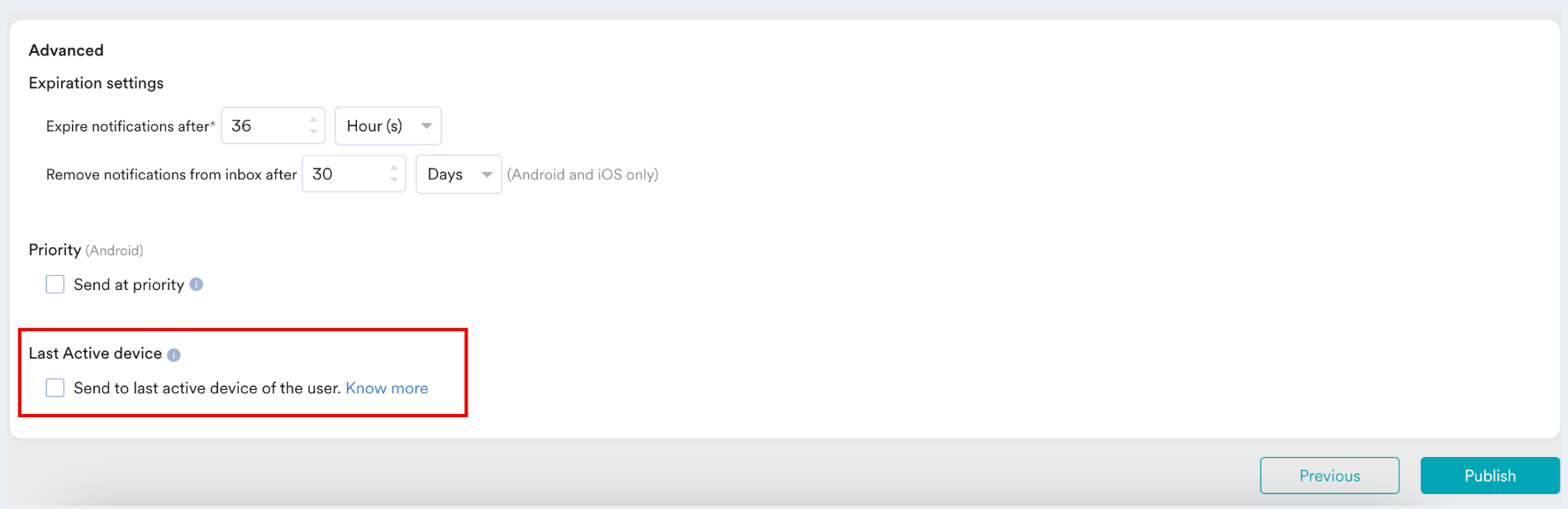

Advanced Settings

The following options are available in this section:

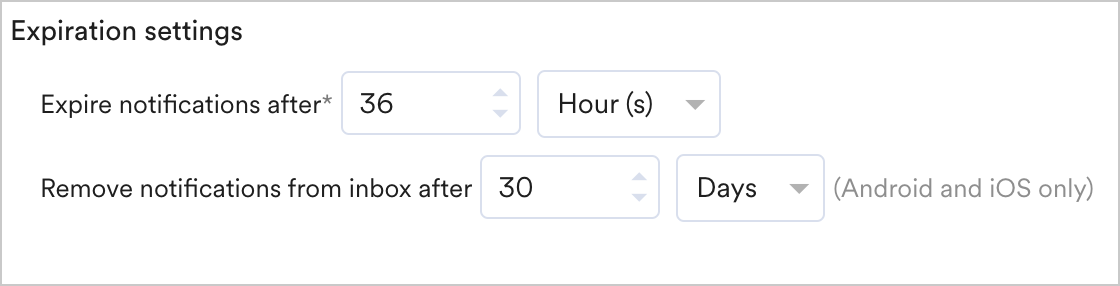

Expiration Settings - let you specify an expiry value for the push notification. This section contains information about when to stop sending push notifications (after a specific time duration mentioned) for the iOS and Android platforms.

 Expiration Settings.png

To set the push expiry value, the following options are available here:

  • Expire notifications after - set the expiration duration in this field.
  • Remove notifications from inbox after - If you use the Notification Center (Inbox) feature of the MoEngage SDK, you can specify the duration after which the notification should be removed from the Inbox. The duration can be set in days or hours. By default, the value will be set to 30 days.
    info

    Note

    The Inbox Expiry feature is available in the following SDK versions:

      1. iOS - version 3.6.0 and above
      2. Android- version 7.7.13. For SDK versions below 7.7.13, inbox expiry can be set using the gcm_msgttl key(set the value in this format: yyyy/MM/dd HH:mm:ss).

    In Android, use both the Inbox Expiry setting and the gcm_msgttl key if you have a user base in SDK version below 7.7.13 as well as at SDK version 7.7.13 or above.

Priority - choose this option for time-critical notifications. The following options are available:

  • Android:
    • Send at priority: Specifies whether the notification should be sent with high priority.
      • Selected: Delivers the notification immediately, bypassing device restrictions such as battery optimizations or low-power modes.
      • Cleared: Delivers the notification in a way that conserves device resources, such as when the device is idle or in low-power mode.

This checkbox ensures urgent notifications reach users promptly while non-urgent ones adhere to power-saving policies.

  • iOS:
    • APNS Priority: Specifies the priority of a notification's delivery, informing APNS how to handle delivery under network or power constraints.
      • A value of `10` delivers the notification immediately and wakes the device if necessary.
      • A value of `5` delivers the notification in a way that conserves device power, such as when the device is idle or in low-power mode.
      • A value of '1' delivers the notification, prioritizing power conservation over all other factors without waking the device.
    • Interruption Level: You can specify the importance and timing of the notification, helping to manage interruptions for the user. For more information, see Notifications in iOS 15.
    • Relevance Score: You can specify a value between 0 and 1 that indicates the importance of the notification in the notification center. For more information, refer to Notifications in iOS 15.



Image 18-11-24 at 12.42 PM.jpeg
info

Information

APNS stores only one notification per bundle ID and selects it non-deterministically when multiple notifications are sent to the same bundle ID. Note that the delivery depends on the APNS and is not controlled by MoEngage. In case of multiple undelivered notifications, typically, the notification with the highest priority gets delivered when the device returns online. For more information, see APNS documentation.

While you have the option to set your notification priorities based on your requirements, we recommend keeping the value at '10' (default) to ensure immediate delivery, unless there is a specific strategic need to prioritize the delivery of certain categories of notifications differently. For instance, if there is a need to deliver transactional notifications and it is observed that promotional notifications are hampering the delivery of transactional notifications, the marketer may choose to reduce the priority of the promotional campaigns to improve the chances of transactional notifications getting delivered.

Last Active device - Select the Last Active device checkbox to send this push campaign only to the latest active device of the target user. For more information, refer to Primary Device Per User.



Early Access

The Last Active device is an Early Access feature. To enable it for your account, contact your CSM or raise a support ticket.

Your campaign is now ready to be sent. To create the campaign, click Publish and confirm in the dialog box that opens.

The Campaign Info page will be displayed once the campaign has been created successfully.

Next Steps

Was this article helpful?
13 out of 18 found this helpful

How can we improve this article?
