Overview
MoEngage In-App campaigns provide pre-designed templates with built-in guidance for effective use cases. These templates help you create campaigns quickly and efficiently, offering the following benefits:
- Support popular and effective use cases.
- Include built-in help guides.
- Are easy to use.
- Support quick campaign creation.
MoEngage offers both native and HTML templates for In-App campaigns.
Template Types
Use different types of templates based on your campaign requirements:
Template Type | Description |
---|---|
Popup | A Popup template appears in the center of the screen over a transparent overlay. Use this template to focus user attention on promotions or important announcements. |
Full Screen | A Full Screen template occupies the entire screen, blocking the app. Use this template for critical information, such as mandatory app updates. |
Rating | The Rating template is a special pop-up template that allows users to provide a 5-star rating within the app. Use this template to collect user feedback for retargeting purposes. |
Nudges |
A Nudge template is a non-intrusive message that lets users continue interacting with your app. Nudges can appear embedded in the app or at the top or bottom of the screen. Use these templates to deliver new information or promotional alerts. Prerequisites: Nudges require additional SDK integration. For more information, refer here. Important: Do not select the On custom event trigger criteria when creating nudges, as nudges do not work with event triggers. To ensure in-app nudges are visible within the iOS app interface, turn on the iOS Safe Area toggle in the Template Settings section during content creation for the iOS platform, as shown in the following image: |
Self Handled | A Self-Handled template allows you to use MoEngage's In-App campaign delivery, segmentation, and personalization features while rendering the message content yourself. This option is useful for creating complex, custom message visuals. |
Customize Native In-App Templates
Follow these guidelines to ensure your In-App templates display optimally across all devices.
Customize Images
Upload high-definition images for your In-App campaigns, but keep the file size under 2 MB. Before an In-App message is shown on the device, the image within the message is downloaded from a CDN before being shown to the user. Larger images can cause delays in displaying the message, especially for users with slower internet connections.
Image Aspect Ratios
MoEngage recommends the following image aspect ratios for each template type:
Template Name | Recommended Aspect Ratio (width:height) |
Popup - Image, Text & 3 Buttons | Images automatically resize. For optimal display, use a 1:1 aspect ratio with at least 50x50 pixels. |
Popup - Image, Text & Button | Images automatically resize. For optimal display, use aspect ratios like 1:2, 2:3, 3:2, 2:1, and a minimum dimension of 450x450 pixels to prevent distortion. |
Popup - Image, Header, Text & Button | Images automatically resize. For optimal display, use aspect ratios like 1:2, 2:3, 3:2, 2:1, and a minimum dimension of 450x450 pixels to prevent distortion. |
Popup - Image & 2 Buttons | Images automatically resize. For optimal display, use aspect ratios like 1:2, 2:3, 3:2, 2:1, and a minimum dimension of 450x450 pixels to prevent distortion. |
Popup - Rating with Image | Images automatically resize. For optimal display, use a 1:1 aspect ratio with at least 50x50 pixels. |
Popup - Image | High-resolution images are recommended. Max 1200x2000 pixels, Min 450x450 pixels. |
Popup - Image & Button | High-resolution images are recommended. Max 1200x2000 pixels, Min 600x600 pixels. |
Full Screen - Image, Text & Button | Use images with an aspect ratio of 3:4 or 3:5, and at least 450x600 pixels to prevent distortion on larger devices. |
Full Screen - Image | Use images with an aspect ratio of 3:4 or 3:5, and at least 450x600 pixels to prevent distortion on larger devices. |
Nudge - Image | Use wide images with an approximate aspect ratio of 5:1 or 6:1. |
SMS Sign-up | Use this template to enable users to sign up and consent to receive SMS notifications. Two types are available: Fullscreen - SMS Sign-up with image and Popup - SMS Sign-up without image. |
Accepted Image Types
You can upload .png, .jpeg, and .gif images for any In-App native template.
To use GIFs in Android In-App native templates, ensure you complete the required integration steps outlined in the Android In-App NATIV SDK documentation. The iOS platform supports GIFs by default.
Image Quality and Size
Use high-resolution images for In-App native templates to prevent distortion on large screens. Large image files may fail to download on devices with unreliable internet connections. Keep images under 2MB to balance image quality and download time.
Image Scaling for Devices
In-app messages display on devices with various screen sizes and DPIs. This means that images you upload are scaled up or down to fit different device dimensions. For example, if you upload a 600 x 1000 pixel image for a Popup - Image template, and it displays on a device with a 320-pixel width where the message occupies 400 pixels, the image's width will be scaled down to 300 pixels. Its height is then calculated based on the original aspect ratio (3:5), resulting in a 300 x 500 pixel image. This process ensures the image remains proportional and does not distort.
Background Images

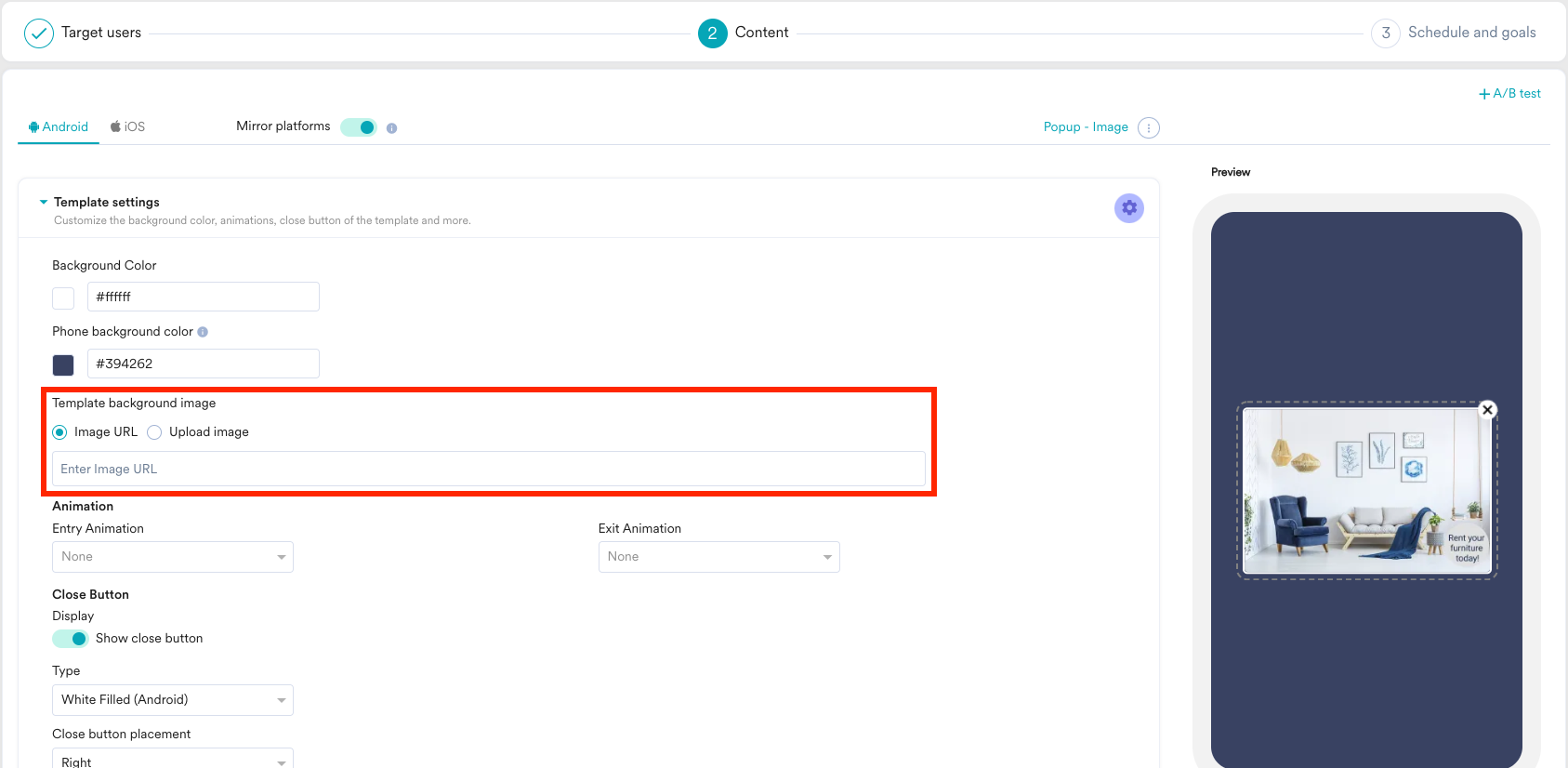

To configure background images for your in-app messages:
- In Step 2 of campaign creation (Content), click Template Settings.
- Under Template background image, select one of the following options:
- Click Image URL, and then type or paste the image URL.
- Click Upload Image, and then drag and drop the image, or click Upload from Computer to select the image.
warning |
Warning Background images do not scale like other in-app content images. Instead, the background image adjusts to fit the width and height of the message, which is calculated by inner widgets. This may cause the image to stretch. |
Background Color
You can set a background color for your in-app messages, or remove it to make your messages transparent.
- In Step 2 of campaign creation (Content), click Template Settings.
- Under Background color, select a color.
- Under Phone background color, select a color.
Create In-App Campaigns Using Nudge Templates
Nudge templates allow you to create non-intrusive in-app messages that enhance user experience and improve your return on investment (ROI) through impactful personalization. MoEngage offers the following Nudge templates:
Template Name | Description |
---|---|
Popup - GIF & button | This template includes a background image, GIF, and buttons. Use it for announcements. |
Nudge - Rating | This template includes a background image, text, ratings, and buttons. You can customize the rating text. Use it to collect user feedback. |
Nudge - Text & button | This template includes a background image, text, and buttons. Use it for new offers, promotional messages, and tips. |
Nudge - Image & text | This template includes a background image, text, and an image. Use it for new offers, promotional messages, and announcements. |
Nudge - GIF | This template includes a background image and a GIF. Use it for announcements. |
Nudge - Video | This template includes a background image and a video. Use it for announcements. |
Popup - Video & button | This template includes a background image, video, and a button. Use it for announcements. |
Nudge - Image only | This template includes a background image and an image. Use it for new offers and promotional messages. |
Nudge - Text only | This template includes a background image and text. Use it for new offers, promotional messages, and to display tips. |
Nudge - Image, text & button | This template includes a background image, text, images, and buttons. Use it for new offers, promotional messages, and to display tips. |
info |
Note Nudges are supported from InApp iOS SDK version 4.15.00 and InApp Android SDK version 7.0.0. For more information, refer to In-App Nativ Nudges. |

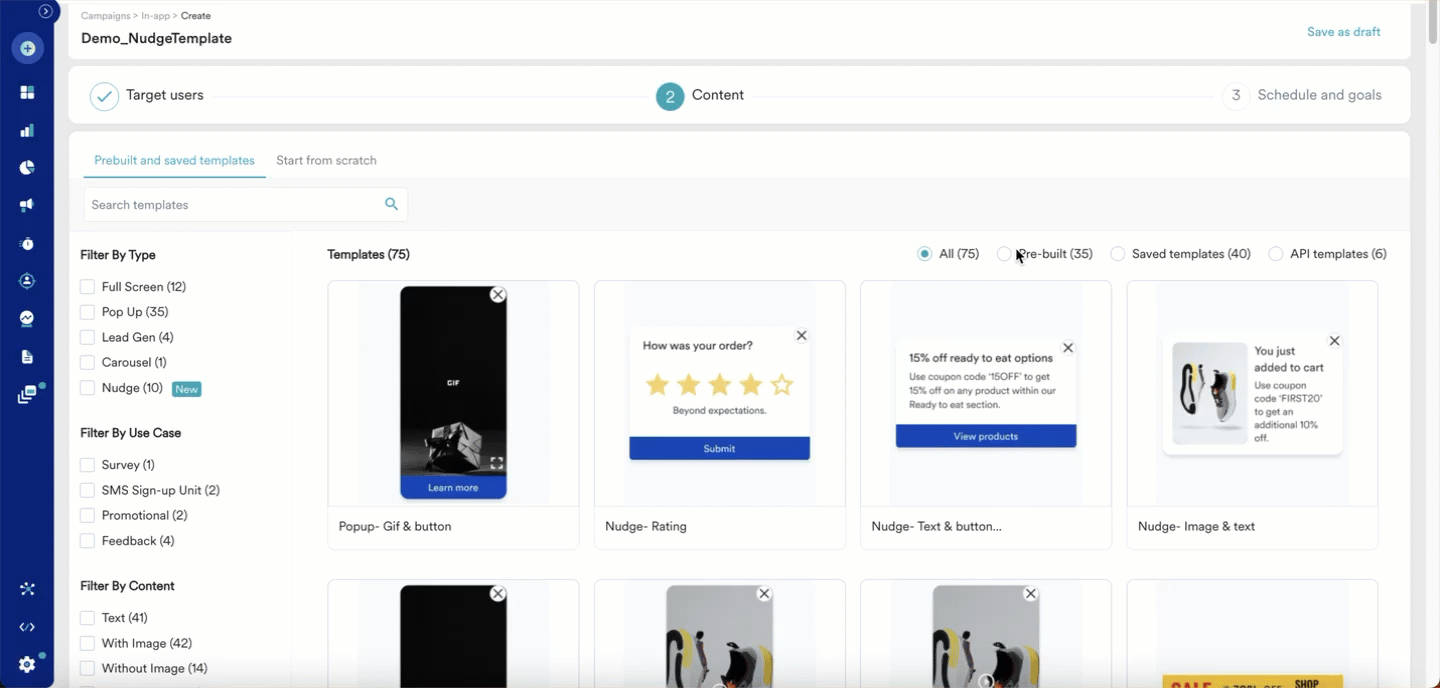

To create an In-App campaign with a Nudge template, follow these steps:
- In Step 2 of In-App campaign creation, type "Nudges" in the Search templates box or select Nudges from the Filter By Type menu on the left. The template selector displays all Nudge templates.
- Hover over the desired Nudge template, and then click Select. A preview of the template appears on hover. After you select a template, the template editor displays.
- Fill in the following fields in the template editor to create your Nudge. As you make changes, a preview of the template displays.
-
Template Settings
Section Field Description Placement and Background Nudge Placement Nudges appear at the bottom of the screen. Select Bottom-left or Bottom-right. Default Display Size Select the display size of the nudge from this dropdown list: Minimised or Fullscreen. Minimised Container Width Select the width of the nudge container. This option is available only for the minimized display. Nudge Background Select one of the following to add a background to the nudge:
- Upload Image: Upload an image from your computer.
- Image URL: Add a URL from which the background image should be retrieved.
- Background Color: Add a background color to the nudge.
Animation Entry Animation Select the animation for the nudge's entry (when the nudge first appears to the user) from the dropdown list. Exit Animation Select the animation for the nudge's exit (when the nudge is dismissed or removed) from the dropdown list. Close Button Display Toggle Display to show or hide the close button from the nudge. Type Select the button type from the dropdown list. Some options are available only for Android, and some only for iOS, indicated by the platform name in parentheses (for example, <ButtonName>(Android)). Close Button Placement Specify the close button's position using this dropdown list: Right or Left. Margin Margin Specify the margin for the nudge container. Top, Bottom, Right, and Left Specify the top, bottom, right, and left margins for the nudge container. Border Width Specify the border width in pixels using the scale. Radius Specify the border radius in pixels using the scale. Border Color Click the textbox to select the border color. -
GIF
Section Field Description Image Source Upload GIF Select the GIF to display in the nudge from your computer. GIF URL Add a URL from which the GIF should be retrieved. Margin Margin Specify the margin for the GIF. Top, Bottom, Right, and Left Specify the top, bottom, right, and left margins for the GIF. Padding Padding Specify the padding width for the GIF in pixels using the scale. Top, Bottom, Right, and Left Specify the top, bottom, right, and left padding for the GIF. Radius Specify the border radius for the GIF padding in pixels using the scale. Border Color Click the textbox to select the border color for the GIF padding. Border Width Specify the border width for the GIF inside the nudge container in pixels using the scale. Radius Specify the border radius for the GIF inside the nudge container in pixels using the scale. Border Color Click the textbox to select the border color for the GIF inside the nudge container. You can also click the GIF in the preview to customize it.
-
Buttons
Section Field Description Button Appearance Button Type Specify the button type: Filled, Outlined, or Text. Button Text Specify the text to display on the button. Font Size Specify the font size for the button text. Font Color Specify the font color for the button text. Custom Font Specify the name of the custom font (as available in your app bundle) for the button text. Button Color Specify the button color by clicking the textbox and selecting the color gradient. Focused State Font Size Specifies the text size when the user navigates to the button using a remote. Font Color Specifies the text color when the user navigates to the button using a remote. Button Color Specifies the button color when the user navigates to it using a remote. Actions Default The default action for the button is Dismiss (the nudge will close when clicked). You can remove this default action by clicking the Delete icon next to the Default dropdown. + Actions Click +Action to add a custom action. Select the action from the Custom dropdown list. The default action closes the nudge. For more information, refer to Custom Actions. Width, Margin & Padding Width Specify the width for the button. Margin Specify the margin for the button. Top, Bottom, Right, and Left Specify the top, bottom, right, and left margins for the button. Padding Specify the padding width for the button in pixels using the scale. Top, Bottom, Right, and Left Specify the top, bottom, right, and left padding for the button. Border Width Specify the border width for the button inside the nudge container in pixels using the scale. Radius Specify the border radius for the button inside the nudge container in pixels using the scale. Border Color Click the textbox to select the border color for the button inside the nudge container. You can also click the button in the preview to customize it.
- Preview the template.
- Test your campaign. For more information, refer to Test In-App Campaigns.
- Schedule your campaign in Step 3, and then publish it.
TV Templates
TV templates allow you to deliver engaging and personalized in-app experiences on TV platforms. These templates enhance user interactions and improve your return on investment (ROI). MoEngage provides a variety of TV templates to suit your needs:
Template Name | Description |
---|---|
TV Banner: Text and Image with 2 Buttons | This template includes a background image and text, and allows you to add up to two buttons. Use it to create banners. |
TV Pop-up: 3 Text with 3 Buttons | This template includes a background image and allows you to add up to three text fields and three buttons. Use it to create pop-ups. |
TV Pop-up: 3 Text with 1 Button | This template includes a background image and allows you to add up to three text fields and one button. Use it to create pop-ups. |
TV Pop-up: 3 Text with 2 Buttons | This template includes a background image and allows you to add up to three text fields and two buttons. Use it to create pop-ups. |
TV Banner: Text with 1 Button | This template includes a background image, text, and a button. Use it to create banners. |
TV Banner: Text with 2 Buttons | This template includes a background image, text, and two buttons. Use it to create banners. |
TV Banner: Text and Image with 1 Button | This template includes a background image, text, and an image, with one button. Use it to create banners. |
TV Pop-up: 3 Text with No Buttons | This template includes a background image and allows you to add up to three text fields. Use it to create a pop-up. |
To create an In-App campaign with a TV template, follow these steps:
- In Step 1 of In-App campaign creation, in the Target Platforms section, select TV. The template selector displays all TV templates in the next step of campaign creation.
- Hover over the desired TV template, and then click Select Template. A preview of the template appears on hover. After you select the template, the template editor displays.
- Fill in the following fields in the template editor to create your campaign. As you make changes, a preview of the template displays.
-
Template Settings
Section Field Description Placement and Background Nudge Placement Nudges appear at the bottom of the screen. Select Bottom-left or Bottom-right. Phone Background Color Specify the background color for the text. This color displays on top of your app screen and behind the in-app message. Template Background Image Select one of the following to add a background to the nudge:
- Upload Image: Upload an image from your computer.
- Image URL: Add a URL from which the background image should be retrieved.
- Background Color: Add a background color.
Animation Entry Animation Select the animation for the nudge's entry (when the nudge first appears to the user) from the dropdown list. Exit Animation Select the animation for the nudge's exit (when the nudge is dismissed or removed) from the dropdown list. Width and Margin Width Specify the width of the TV container. Margin Specify the margin for the TV container. Top, Bottom, Right, and Left Specify the top, bottom, right, and left margins for the TV container. Border Width Specify the border width in pixels using the scale. Radius Specify the border radius in pixels using the scale. Border Color Click the textbox to select the border color. -
Section Field Description Image Source Upload Image Select the image to display in the template from your computer. Image URL Add a URL from which the image should be retrieved. Margin & Padding Margin Specify the margin for the image. Top, Bottom, Right, and Left Specify the top, bottom, right, and left margins for the text. Padding Specify the padding for the text. Top, Bottom, Right, and Left Specify the top, bottom, right, and left padding for the text. Border Width Specify the width of the image border. Radius Specify the radius of the image border. Border Color Click the textbox to select the border color for the image included in the TV container. Image Container Width (15% Max) Specify the width of the image container. -
Text
Section Field Description Text Content Heading Specify the heading to display for the text. Font Size Specify the font size for the text. Font Color Specify the font color for the text. Custom Font Specify the name of the custom font (as available in your app bundle) for the text. Background Color Specify the background color for the text. Width, Margin & Padding Width Specify the width of the text. Margin Specify the margin for the text. Top, Bottom, Right, and Left Specify the top, bottom, right, and left margins for the text. Padding Specify the padding for the text. Top, Bottom, Right, and Left Specify the top, bottom, right, and left padding for the text. Border Width Specify the width of the border. Radius Specify the border radius for the text inside the TV container in pixels using the scale. Border Color Click the textbox to select the border color for the text inside the TV container. -
Buttons
Section Field Description Button Appearance Button Type Specify the button type: Filled, Outlined, or Text. Button Text Specify the text to display on the button. Font Size Specify the font size for the button text. Font Color Specify the font color for the button text. Custom Font Specify the name of the custom font (as available in your app bundle) for the button text. Button Color Specify the button color by clicking the textbox and selecting the color gradient. Focused State Font Size Specifies the text size when the user navigates to the button using a remote. Font Color Specifies the text color when the user navigates to the button using a remote. Button Color Specifies the button color when the user navigates to it using a remote. Actions Default The default action for the button is Dismiss (the template will close when clicked). You can remove this default action by clicking the Delete icon next to the Default dropdown. + Actions Click +Action to add a custom action. Select the action from the Custom dropdown list. Width, Margin & Padding Width Specify the width for the button. Margin Specify the margin for the button. Top, Bottom, Right, and Left Specify the top, bottom, right, and left margins for the button. Padding Specify the padding for the button. Top, Bottom, Right, and Left Specify the top, bottom, right, and left padding for the button. Border Width Specify the border width for the button inside the TV container in pixels using the scale. Radius Specify the border radius for the button inside the TV container in pixels using the scale. Border Color Click the textbox to select the border color for the button inside the TV container. - Preview the template.
- Test your campaign. For more information, refer to Test In-App Campaigns.
- Schedule your campaign in Step 3, and then publish it.
SMS Sign-Up Templates
warning |
Warning This feature is currently enabled only for the North America region. For more information, contact your CSM or raise a support ticket. |
The SMS Sign-Up template allows you to request consent from your users to receive SMS notifications. For more information on compliance for the North America region, refer to SMS for North America Region.

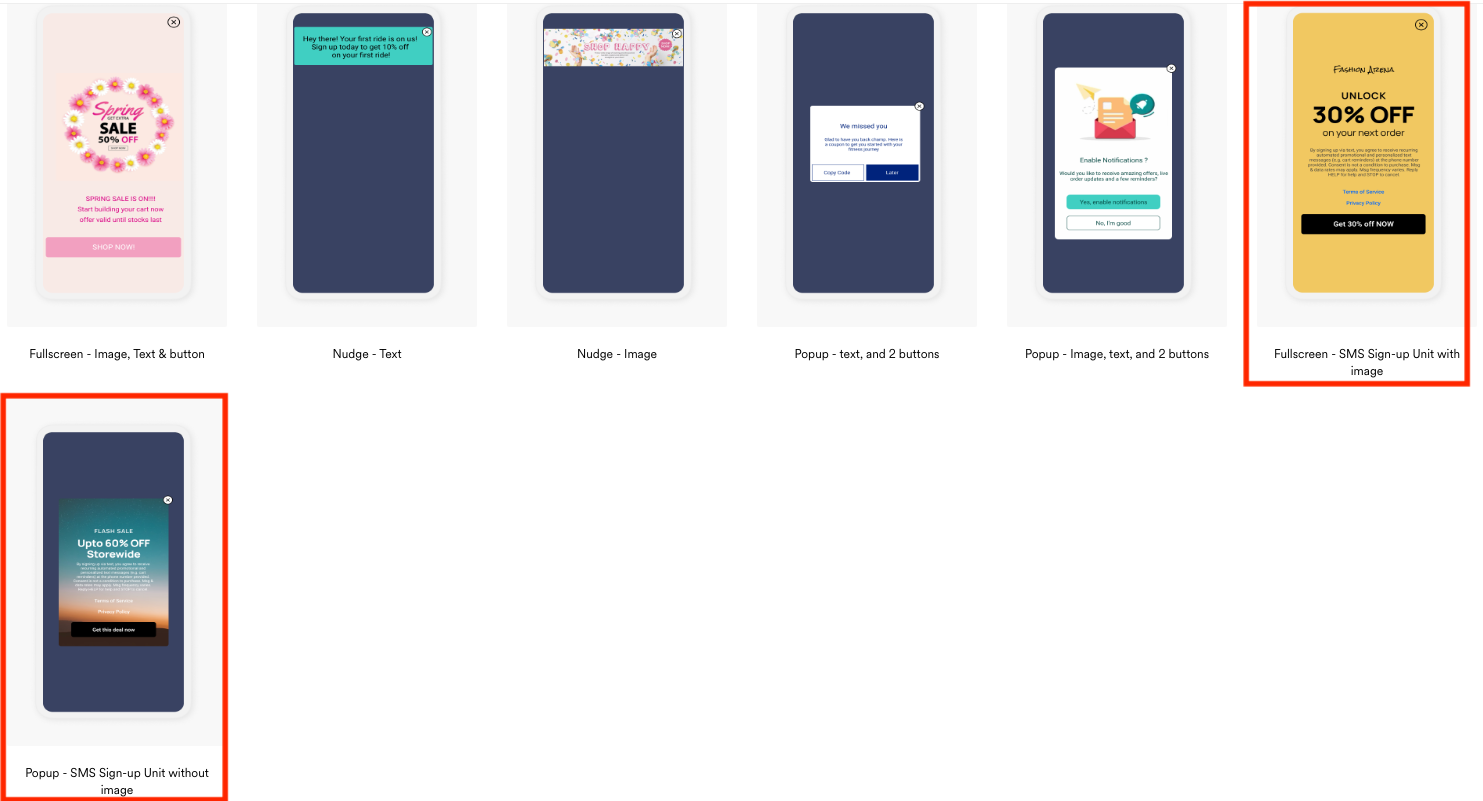

MoEngage provides two SMS Sign-Up templates:
- Fullscreen - SMS Sign-Up with Image
- Popup - SMS Sign-Up without Image
Fullscreen - SMS Sign-Up with Image
When creating an SMS sign-up template with an image, modify the image and text as needed, and then follow these steps:
- Review the default legal text provided by MoEngage:
"By signing up for text messages, you agree to receive recurring automated promotional and personalized text messages (cart reminders) at the phone number provided. Consent is not a condition to purchase. Msg & data rates may apply. Msg frequency varies. Reply HELP for help and STOP to cancel."
- Configure the Terms of Service as needed.
- Configure the Privacy Policy as needed.
- Configure the button to receive consent.
Field | Description |
---|---|
Mobile Number | Provide the mobile number used to receive consent and subscribe for notifications. |
Message | Add the Opt-In keyword. For more information about keywords, refer to Configure Subscription & Keywords. |
Popup - SMS Sign-Up without Image
When creating an SMS sign-up template without an image, modify the text as needed, and then follow these steps:
- Review the default legal text provided by MoEngage:
"By signing up for text messages, you agree to receive recurring automated promotional and personalized text messages (cart reminders) at the phone number provided. Consent is not a condition to purchase. Msg & data rates may apply. Msg frequency varies. Reply HELP for help and STOP to cancel."
- Configure the Terms of Service as needed.
- Configure the Privacy Policy as needed.
- Configure the button to receive consent.
Field | Description |
---|---|
Mobile Number | Provide the mobile number used to receive consent and subscribe for notifications. |
Message | Add the Opt-In keyword. For more information about keywords, refer to Configure Subscription & Keywords. |
Personalization
You can personalize your campaign content using various data sources. For more information, refer to the following:
- MoEngage Templating Language (Jinja)
- Derived Events & Attributes
- Product Sets
- Content APIs
- Content Blocks
To personalize content, follow these steps:
- Type @ in the content editor to open the personalization options.
- Select either Data Personalization or Content Block.
- If you select Data Personalization, choose one of the following options:
- User Attributes
- Select one of the following options as an alternative (fallback) if personalization does not work:
- No Fallback: No alternative content is displayed if personalization fails.
- Do Not Send In-App: The in-app message is not sent if personalization fails.
- Replace Text: Specify text to display if personalization fails.
- Product Sets
- Content API: Modify the values of the Content API parameters.
- If you select Content Block:
- Select the content block to insert.
- Click Insert Only the Content of the Content Block.
info Information
- Only the content from the block is inserted.
- The inserted content is disconnected from the original content block.
- Any future updates to the original content block do not reflect in the inserted content.
- Click Done.
Configure In-App Message Accessibility
Configure accessibility features for your in-app messages in MoEngage to make them accessible to all users. For a comprehensive understanding of accessibility principles, refer to Accessible Campaigns in MoEngage.
Add Alternative Text (Alt Text) for Visuals
Alt text provides a textual description for images and GIFs, making them understandable to users who rely on screen readers.
-

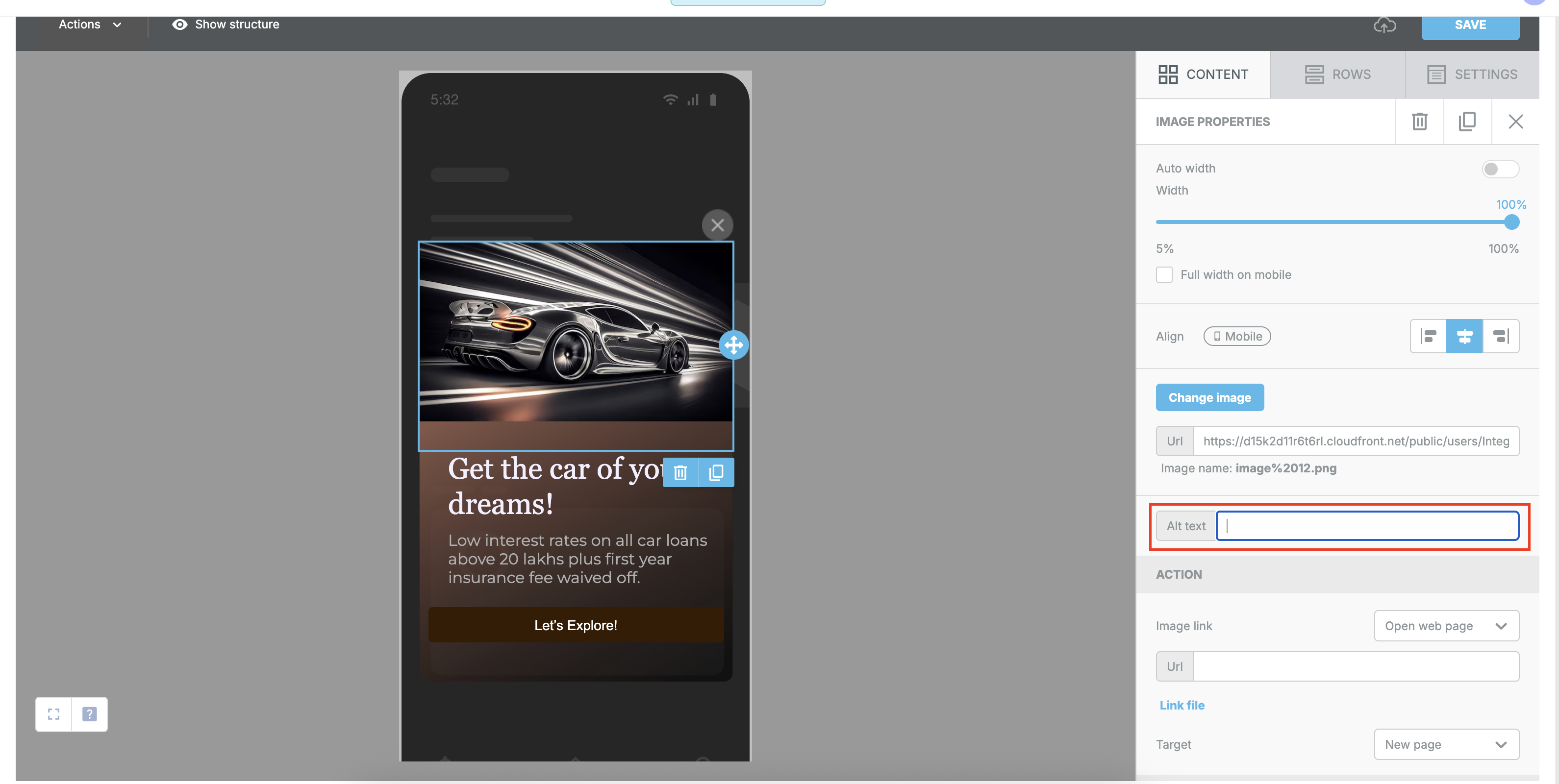

Using the drag-and-drop editor: When you add an Image or GIF element to your In-App campaign, type a clear and concise description in the Alt Text box.
-

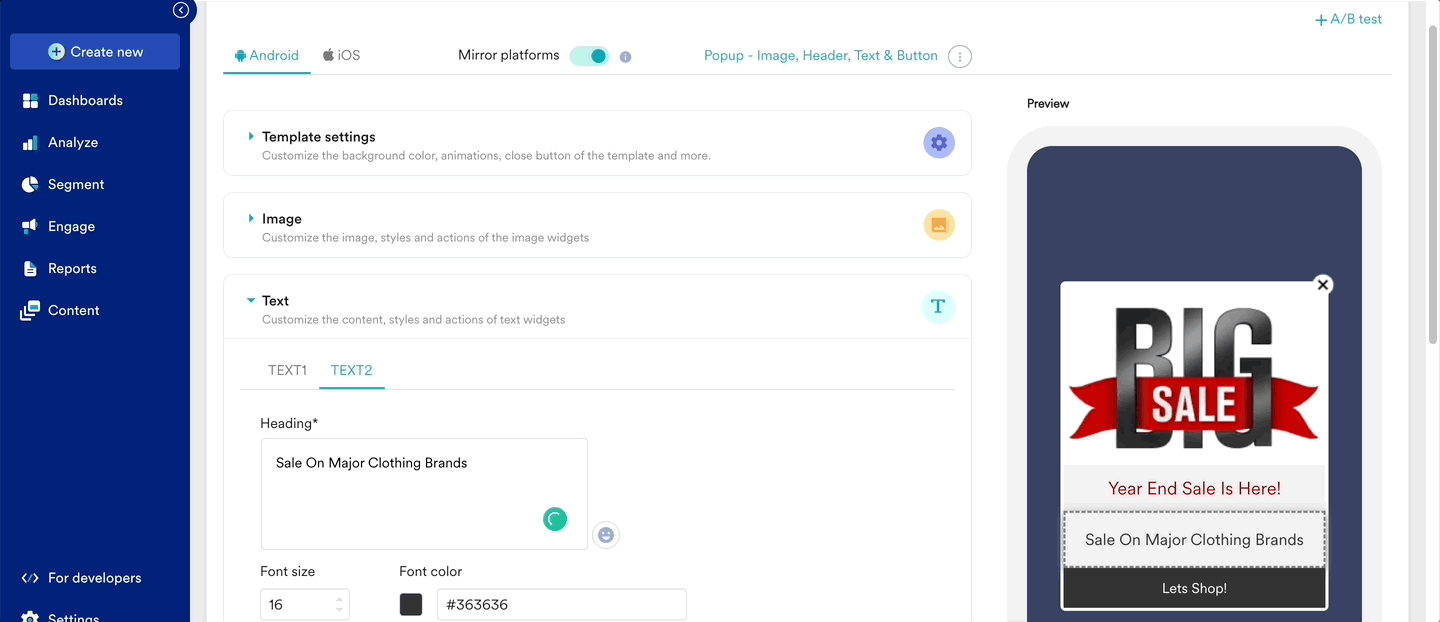

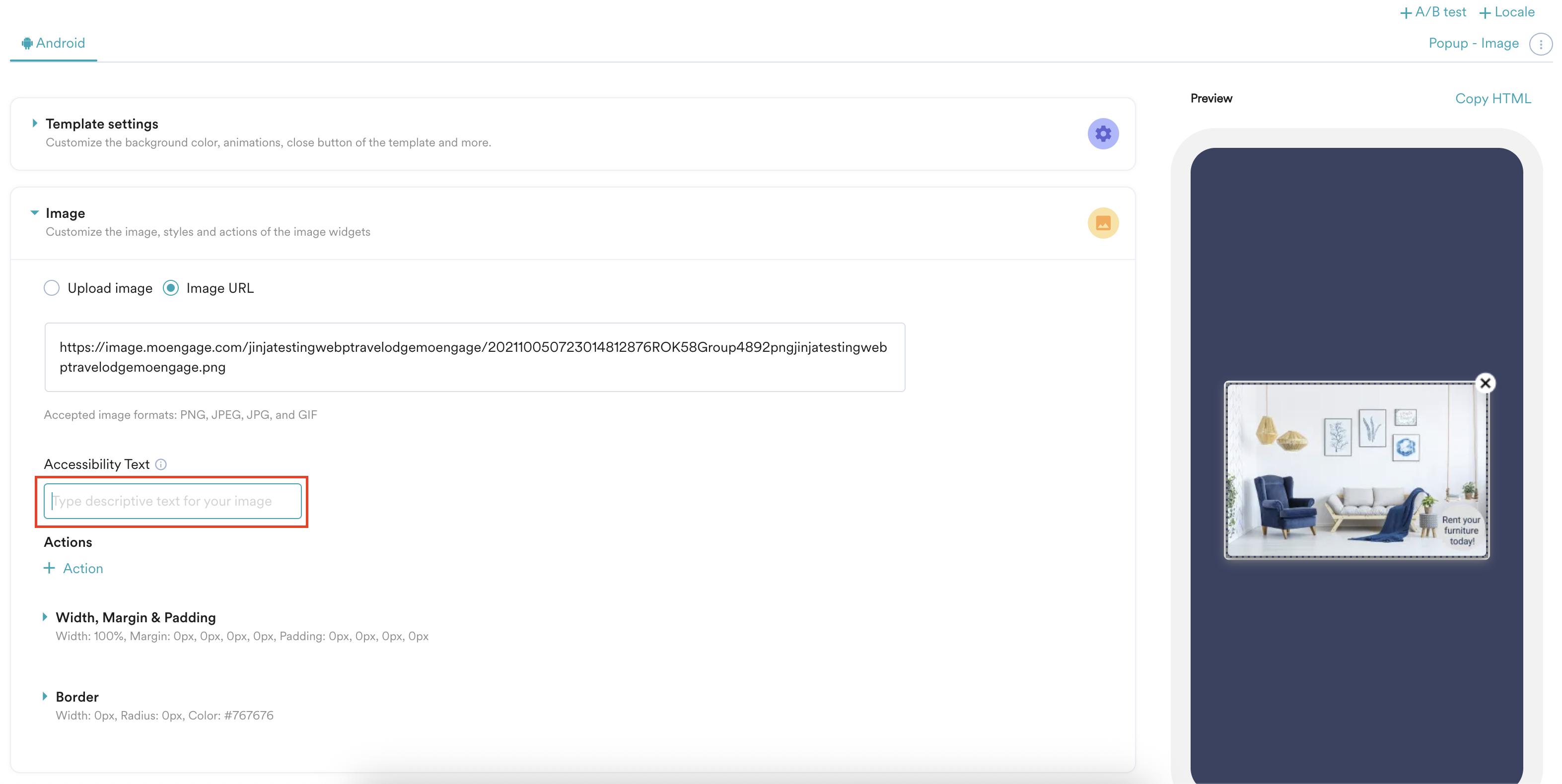

For native In-App templates: In a native template, such as Popup—Image, Text, and Button, type alt text for images in the Accessibility Text box.
-
For custom HTML In-App messages: If you build your in-app message with custom HTML, you are responsible for adding the
alt
attribute with a meaningful description to all your<img>
tags directly in your code.For example:
<img src="image_url.png" alt="Description of the image">
Considerations for Alt Text:
- Describe your images: Ensure your alt text accurately describes the image's content and purpose. If the image contains important text, include this in the alt text. For tips on writing effective alt text, refer to Accessible Campaigns in MoEngage.
- Use personalization in alt text: The alt text boxes in MoEngage support dynamic descriptions based on user attributes or event data.
- Static user interface elements: MoEngage automatically includes default alt text for standard user interface elements like the Close button (X). You do not need to configure these manually.
Video Content Accessibility
If your in-app message includes video content, consider the following for accessibility:
- Add captions and transcripts: Create captions and a transcript for your video content using external tools or services.
- Link or embed transcripts: When you add video content to your in-app message (whether embedded or linked), ensure you also provide a way for users to access the transcript. For example, include a link to the transcript near the video. MoEngage does not automatically generate transcripts.
-

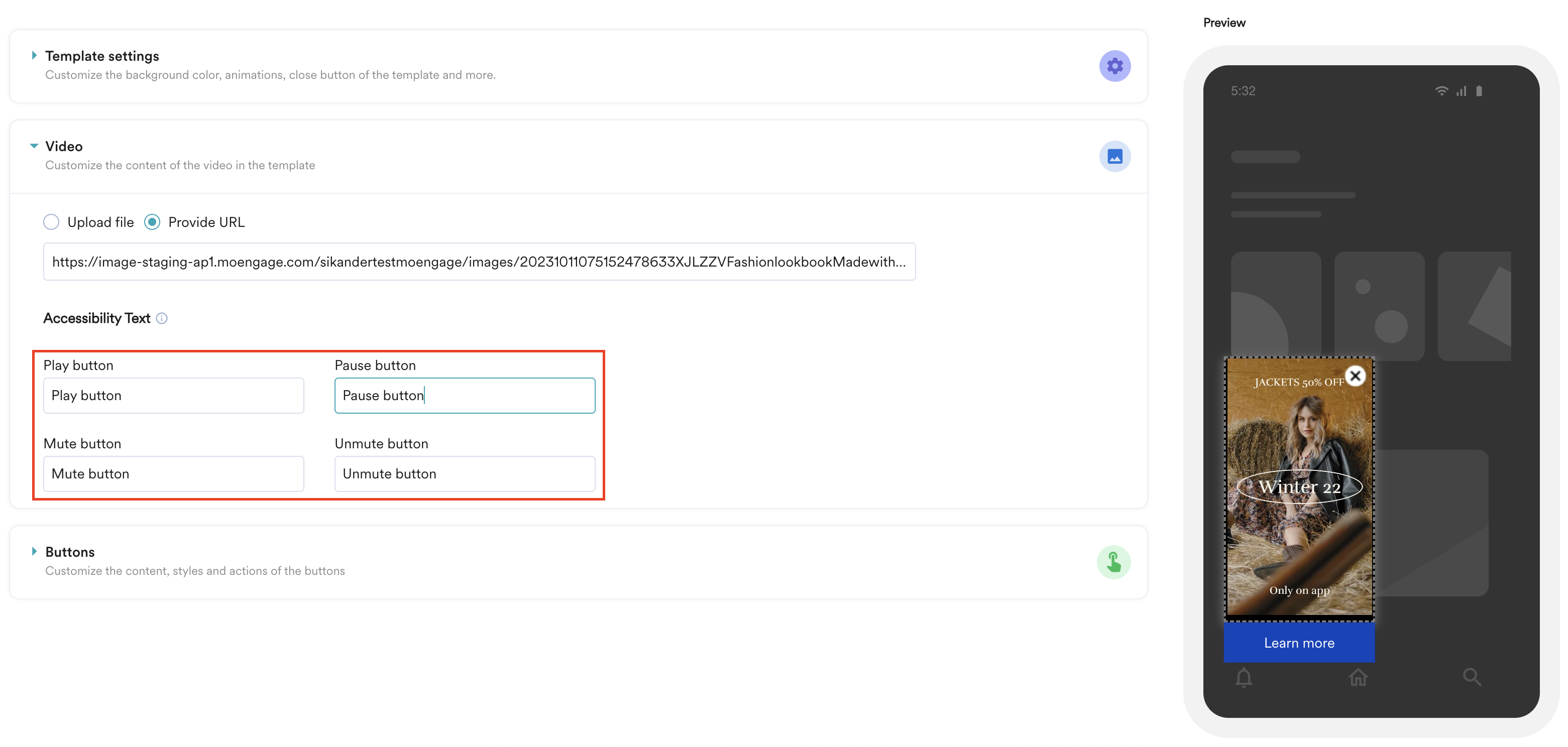

Video controls: Add Accessibility Text to video controls such as Play, Pause, Mute, and Unmute buttons. This ensures all users, including those using assistive technology, can easily understand them.
Rating Template Accessibility
For the Nudge - Rating template, the screen reader automatically reads the selected rating, followed by the associated text. For example: "4 out of 5 stars, Beyond Expectations."
Ensure Font Size and Layout Adaptability
MoEngage In-App messages are designed to adapt to user preferences:
- Automatic font scaling: Text in in-app messages generally respects the font size settings users choose on their Android or iOS devices. You typically do not need to configure this manually. However, consider how very large text might affect your layout.
-
Content scrolling:
- For Full Screen In-App messages: If a user's larger font settings cause content to overflow, scrolling is automatically enabled.
- For Nudges (non-intrusive In-App messages): The content within the nudge becomes scrollable if necessary, while the nudge itself maintains its position.
Keyboard Navigation and Focus Management
The MoEngage SDK manages keyboard navigation and focus to ensure a good user experience:
- Focus handling: When an in-app message appears, focus automatically shifts to the message and is appropriately trapped for intrusive messages. When the message closes, focus typically returns to the previous element.
- Accessible Close button: The standard Close button (X) on in-app messages includes an accessible label by default. If you create a custom Close button (for example, in an HTML In-App message), ensure it is keyboard accessible and has a proper accessible name.
Set Up Touch Target Sizes
- Native templates: MoEngage's native In-App templates are designed with touch target sizes that aim to meet accessibility guidelines.
- Custom HTML In-App messages: If you design in-app messages using custom HTML, ensure all interactive elements (buttons, links) are large enough for easy tapping. For general guidelines on touch target sizes, refer to Accessible Campaigns in MoEngage.
Address TV In-App Considerations
If you design In-App messages specifically for TV platforms:
- Platform Guidelines: Be aware of the target TV platform's specific accessibility requirements and navigation patterns (e.g., remote control interaction). Ensure your content, especially any custom interactive elements, is compatible.
By configuring these elements in your In-App campaigns, you can significantly improve their accessibility. Always test your in-app messages on different devices and, if possible, use accessibility tools to ensure a good user experience.
Frequently Asked Questions
-
What happens if an In-App message exceeds device height?
An In-App message will not render if its height exceeds the device's display height. -
Are images mandatory for In-App templates?
Images are mandatory only for In-App templates that are designed to contain images. If you do not provide images for these templates, they will not display on the user's device. -
Is text scaled across different device sizes?
Currently, text does not scale automatically across different device sizes. The font size you specify when creating the message will be used on all devices. -
Can I remove images from In-App messages?
Images are currently mandatory for In-App messages that include image components to display on end-user devices. -
Can I remove the background color from In-App messages?
Yes, you can remove the background color from an In-App message by setting its opacity to 0. -
What happens to In-App messages when the app is in landscape mode?
Pre-built In-App messages currently do not display when the app is in landscape mode. However, HTML In-App messages will display if landscape orientation is allowed during their creation. -
Are In-App messages supported on tablets?
No, pre-built In-App messages are not currently supported on tablets. However, HTML In-App messages are supported.
