Preview Settings

With Preview Settings in Push, you can modify the icons and text that appear on the device preview in the second step of the campaign creation process.

This device preview lets you envision how the push notification will look on real devices and whether you need to format something or not.

To use this feature, navigate to Settings > Channels > Push > Preview Settings.

info

Note

Preview Settings do not affect real device output. The icons that you add here will only be shown to you on the device preview for push campaigns.

Android

  1. App Name (preview): Enter the name of your app as seen on the device. The real app name is the one that appears on the Google Play console.
  2. App icon: You can upload your app icon by clicking on the upload box. The real app icon is set when you integrate your app with MoEngage Push. To know more, refer to Push Configuration
    • Only Alpha Channel images are supported.
    • RGB images are not supported.
    • Minimum required resolution: 72 x 72 px
    • Only images with the format .png are supported.
  3. Large app icon: You can upload a large app icon by clicking on the upload box. The real Large app icon can be set while creating push campaigns.
    • Recommended resolution: 120 x 120 px
    • Only images with the format .png are supported.

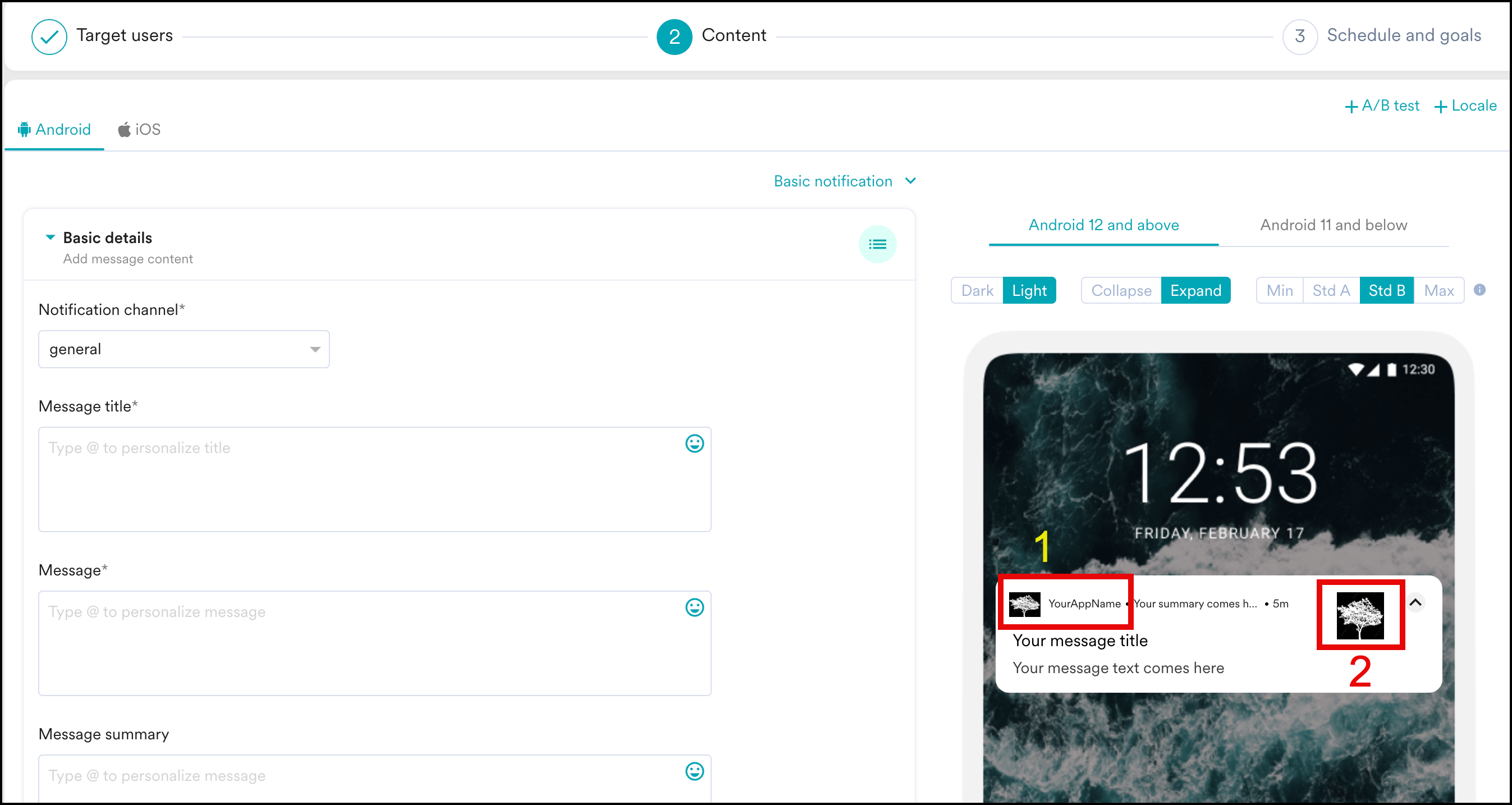

Campaign Preview

In this image, the number highlights the App Icon and App Name. The number highlights the Large App Icon

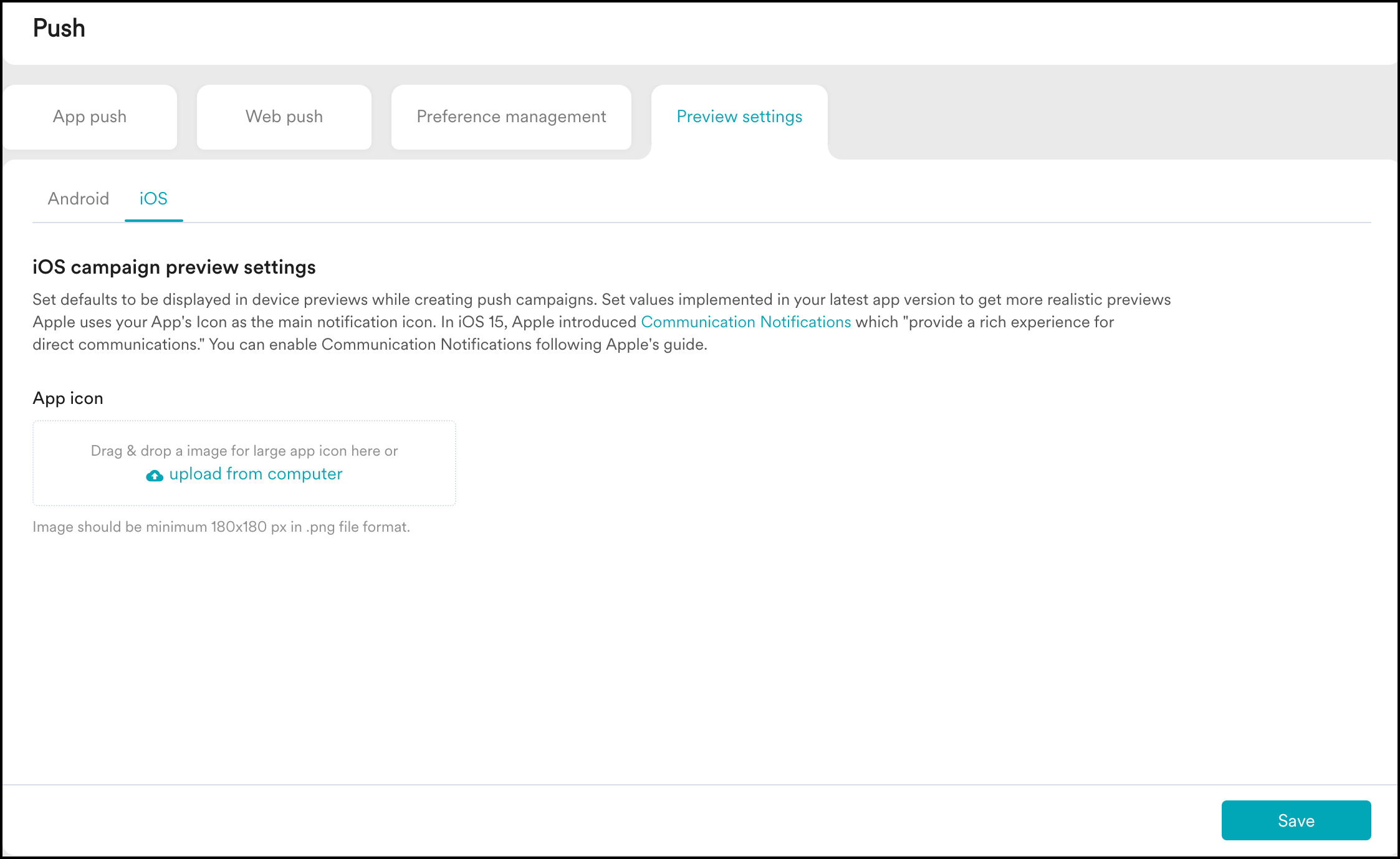

iOS

App Icon: You can upload your custom app icon by clicking on the upload box. Use the same icon you have used as the app icon for your iOS app.

  • Minimum resolution: 180 x 180 px
  • Only images with the format .png are supported.

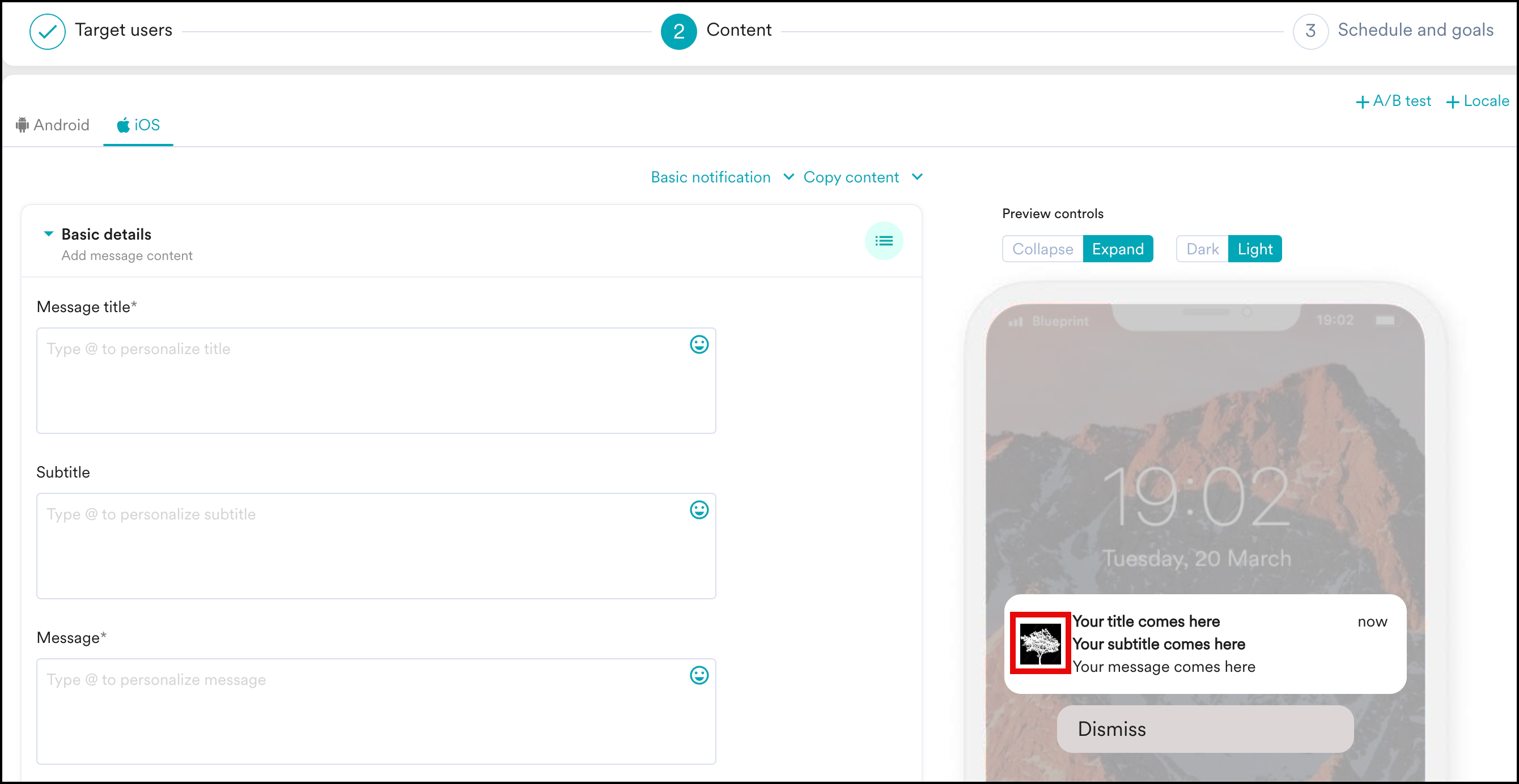

Campaign Preview

In this image, the highlighted box in the preview is the App Icon
