Overview

MoEngage allows you to import users and events through tables in your Databricks databases.

Types of Imports

MoEngage supports the following types of imports from your Databricks data warehouse:

• Registered Users: Users who are already registered on MoEngage.
• Anonymous Users: Users who are not yet registered on MoEngage.
• Events (standard and user-defined): MoEngage can import standard events like campaign interaction events and your user-defined events.

Prepare the Data

MoEngage does not require a specific table schema for imports; all columns in the table can be skipped or mapped individually on the MoEngage dashboard. However, certain considerations must be addressed before configuring the imports.

To import standard MoEngage events, ensure that the event names in your table align with MoEngage standard event names.

Required Access Permissions

MoEngage requires READ access to your database so that we can fetch data into MoEngage. You can grant the following permissions to an existing database user or create a new dedicated database user for MoEngage:

Query 1 (Required)

-- Grant SELECT permission on all tables in the schema GRANT SELECT ON SCHEMA `catalog_name`.`schema_name` TO `user@example.com`;

The query above grants the SELECT permission on all tables within the schema schema_name in the catalog  catalog_name to the user with the email user@example.com.

Granting the SELECT permission enables MoEngage to perform the following actions within the schema:

• Read data from all tables within the schema.
• Execute SELECT queries on any table.
• View the contents of tables without the permission to modify the underlying data.

Query 2 (Required)

-- GRANT USE SCHEMA ON SCHEMA `catalog_name`.`schema_name` TO `user@example.com`;

The query above grants the USE SCHEMA permission on all tables within the schema schema_name in the catalog  catalog_name to the user with the email user@example.com.

The USE SCHEMA permission grants a user the ability to:

• Access and view the schema's metadata.
• Set the schema as their active working context (for example, using  USE SCHEMA).
• View the schema in schema listings.
• Utilize the schema name when referring to fully-qualified object names.

When you use both Query 1 and Query 2, the permissions function as follows:

• USE SCHEMA: This permission is required to access and reference the specified schema.
• SELECT: This permission allows data to be read from tables within that schema.
• Without the USE SCHEMA permission, a user cannot access the schema, even if they have SELECT permissions on its tables. Query 2 explicitly grants the USE SCHEMA permission to enable schema access.

In all the queries provided, ensure you replace the following placeholder values with your specific details:

• <catalog_name>: The name of your catalog.
• <schema_name>: The name of your database/schema.
• <user@example.com>: The email ID of the user who created the token.

Import Datetype Attributes

Importing Datetype attributes requires additional steps. For more information, refer here.

Set Up Imports from Databricks

To set up Databricks Imports, perform the following steps:

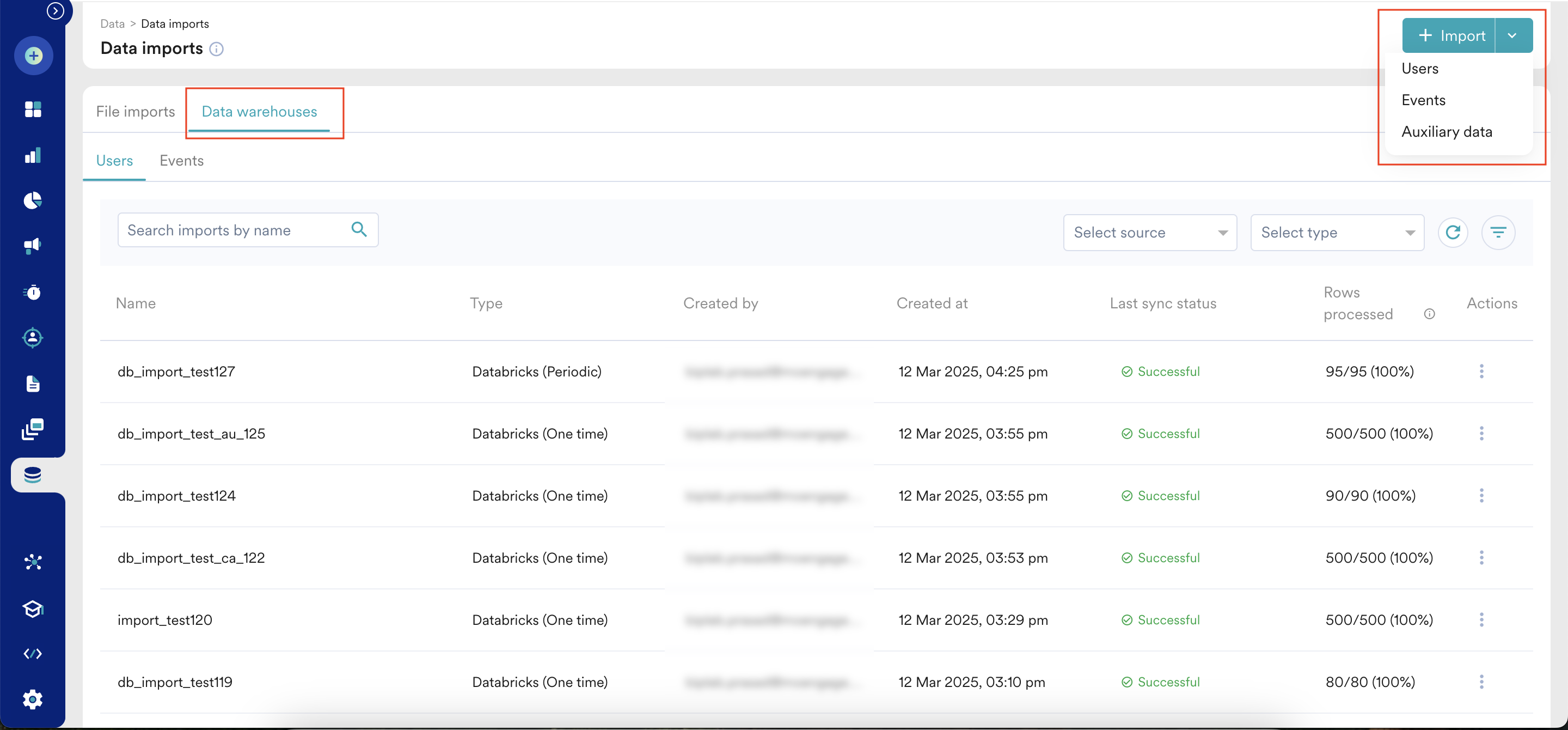

1. On the left navigation menu in the MoEngage dashboard, click Data > Data imports.
2. On the Data imports page, click Data warehouses.
3. Click + Import in the upper-right corner and select Users or Events to create a new import.

4. Click the Databricks tile.
5. Click Continue.

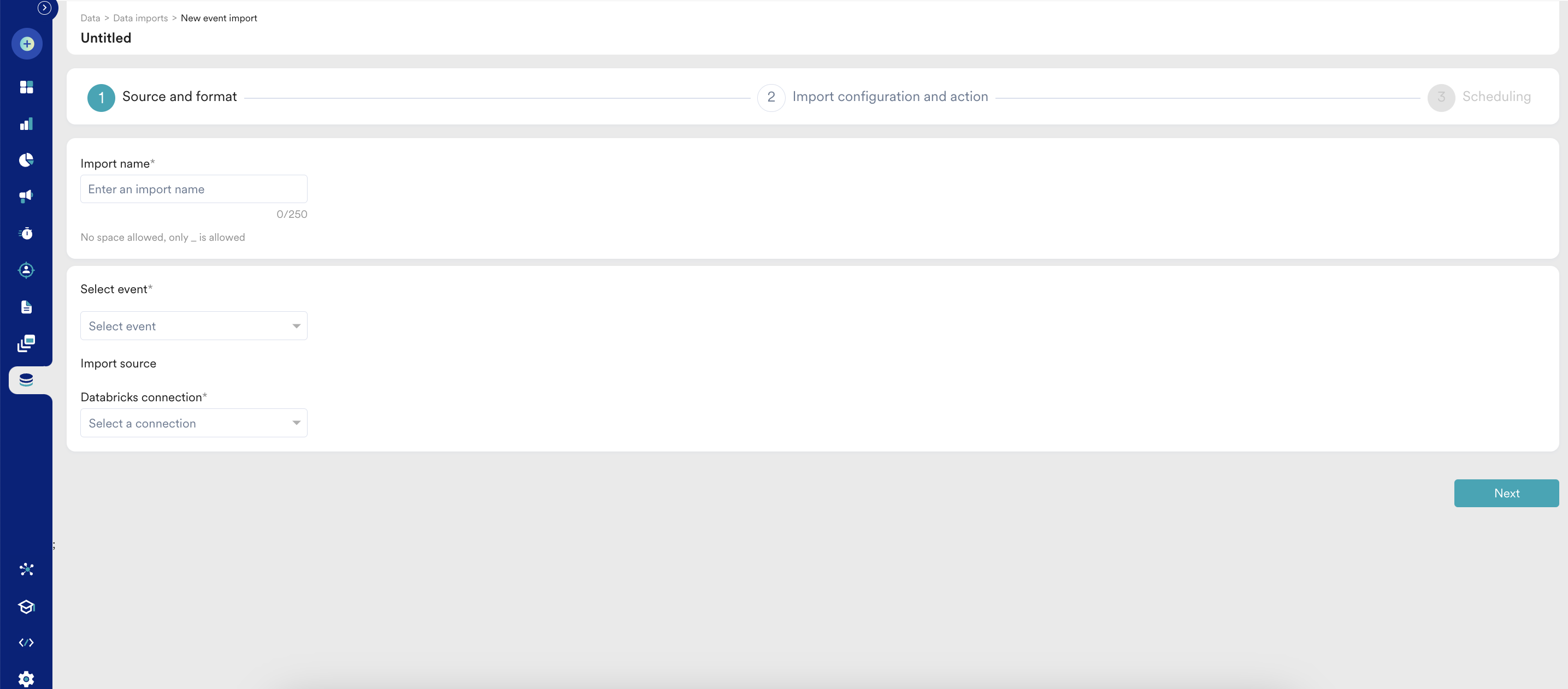

Step 1: Select Your Databricks Connection and Table Source

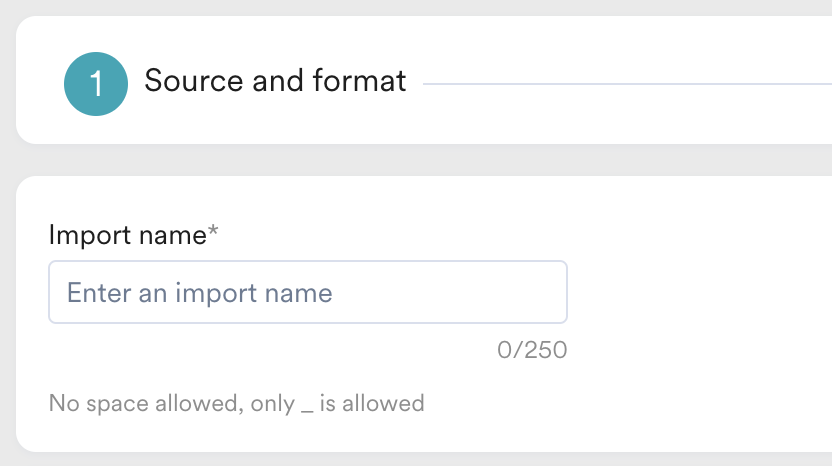

Import Name

Enter a name for this import to identify it on the Imports Dashboard easily. Based on the type of import selected, your next steps might vary:

User Imports Events Imports

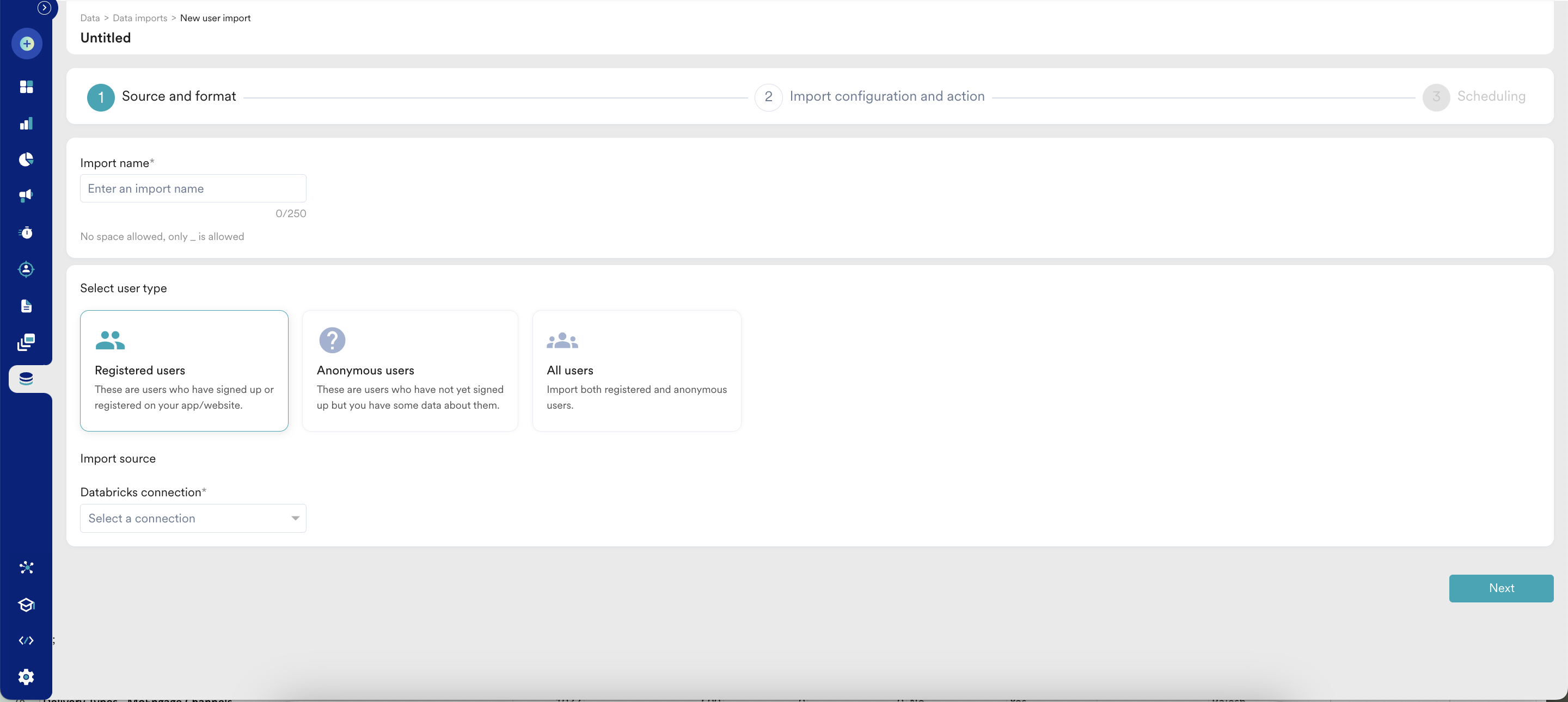

You can now select whether to import Registered users or Anonymous users. You can also choose to import both together:

For Event imports, you can select which event it is that you want to import:

You can either select an existing event or create a new one. If you have multiple events stored in a single table, MoEngage determines matching rows to import based on the Event Name column. The value of the Event name column is determined by the event you pick. Some of these events might have different Display name and Event name. You can always view the event information on the Data Management page. For example, the event App/Site Opened must have the value of the Event name column as MOE_APP_OPENED:

To create a new event, perform the following steps:

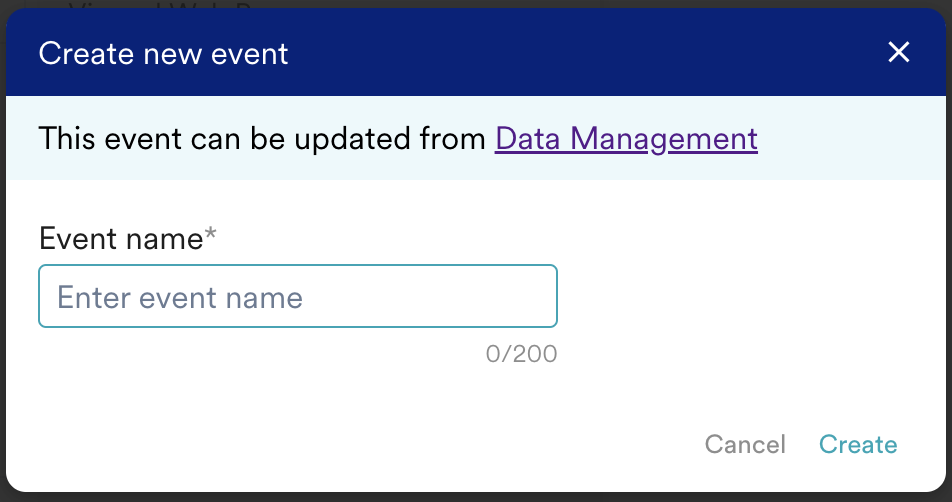

1. Click the + Create event at the end of the Select event list. The Create new event dialog box is displayed.
2. In the Event name box, type a unique name for your event. By default, your Display Name will be the same as the Event Name.

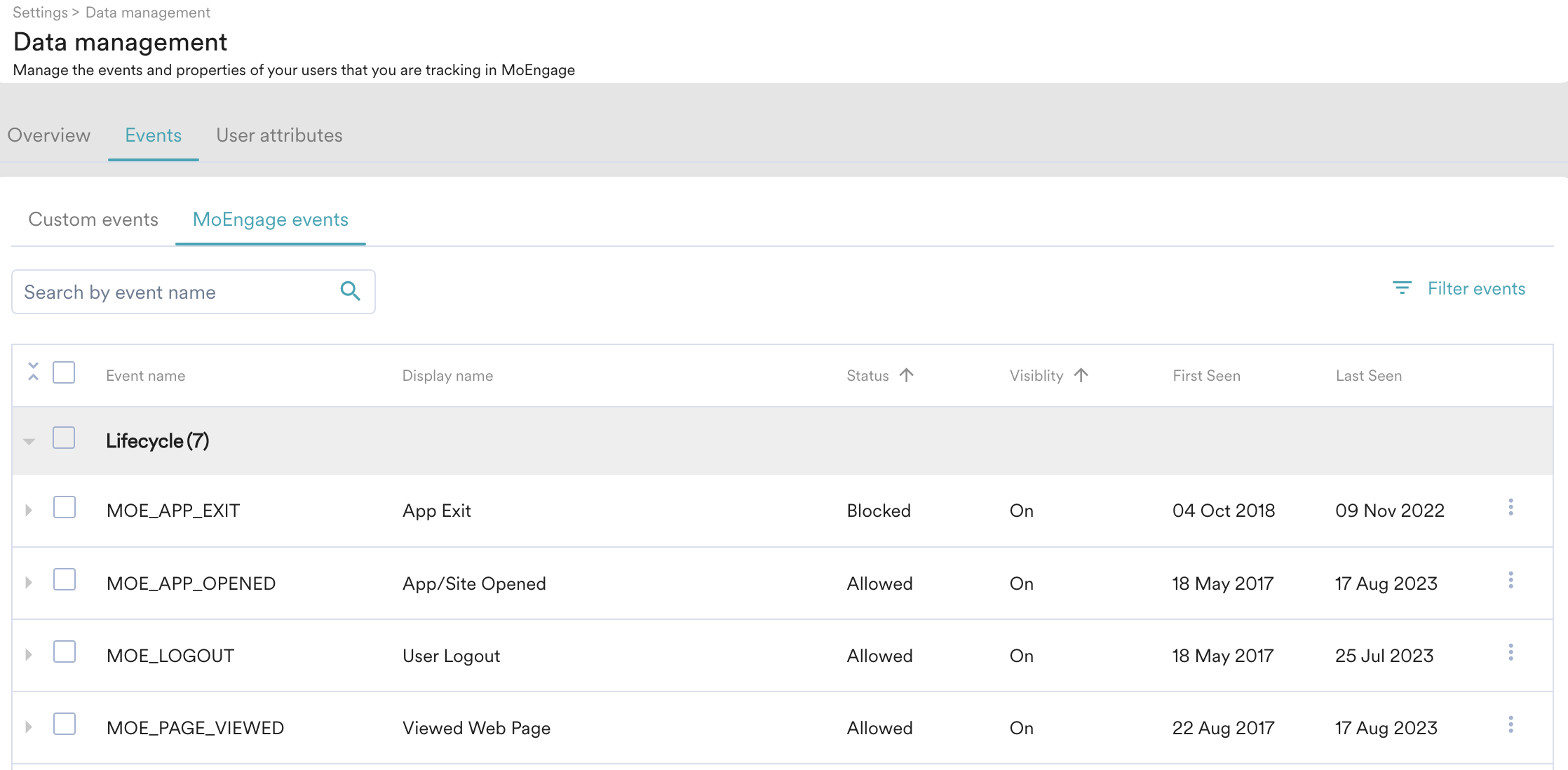

You can go to the Data Management page to view or edit this event and your other MoEngage events.

info	Information The newly created events do not appear on the Data Management page until the initial import is successful.

Import Source

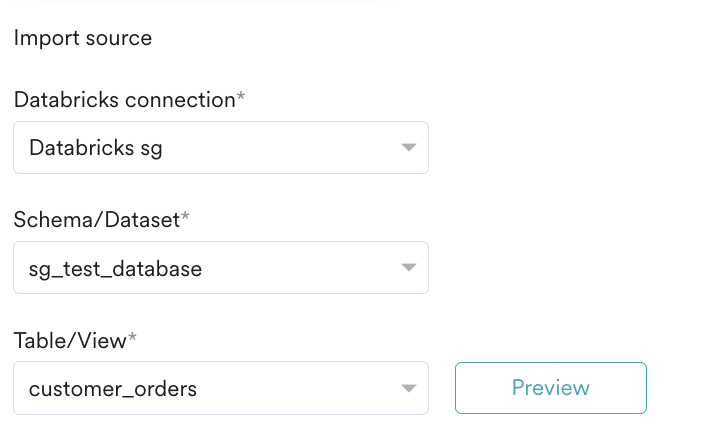

In this first step, Source and format, you must specify MoEngage, which Databricks connection to use, and the table from which to import. To get started, perform the following steps:

1. In the Databricks connection list, select a connection to use for this Import.
   If you have not already created a Databricks connection, click + Add connection at the end of the Databricks connection list, and you will be redirected to the App Marketplace to set it up. You can learn more about connecting your Databricks warehouse to MoEngage here.
2. After you have selected your Databricks connection, the Schema/Dataset and Table/View lists are displayed.
3. In the Schema/Dataset, select the schema/dataset.
   Note: Ensure that MoEngage has been granted the necessary permissions detailed in the Prerequisites if your schemas are loading incorrectly.

4. In the Table/View list, select table/view to import data from.

Event Imports

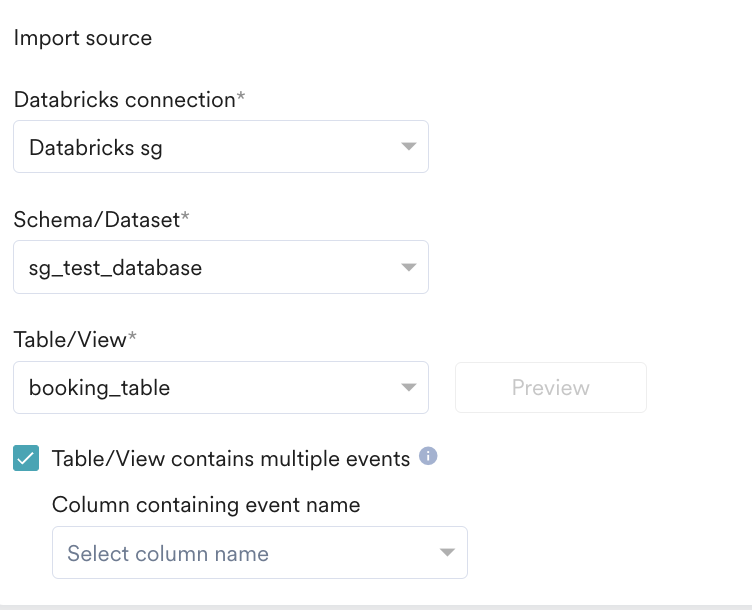

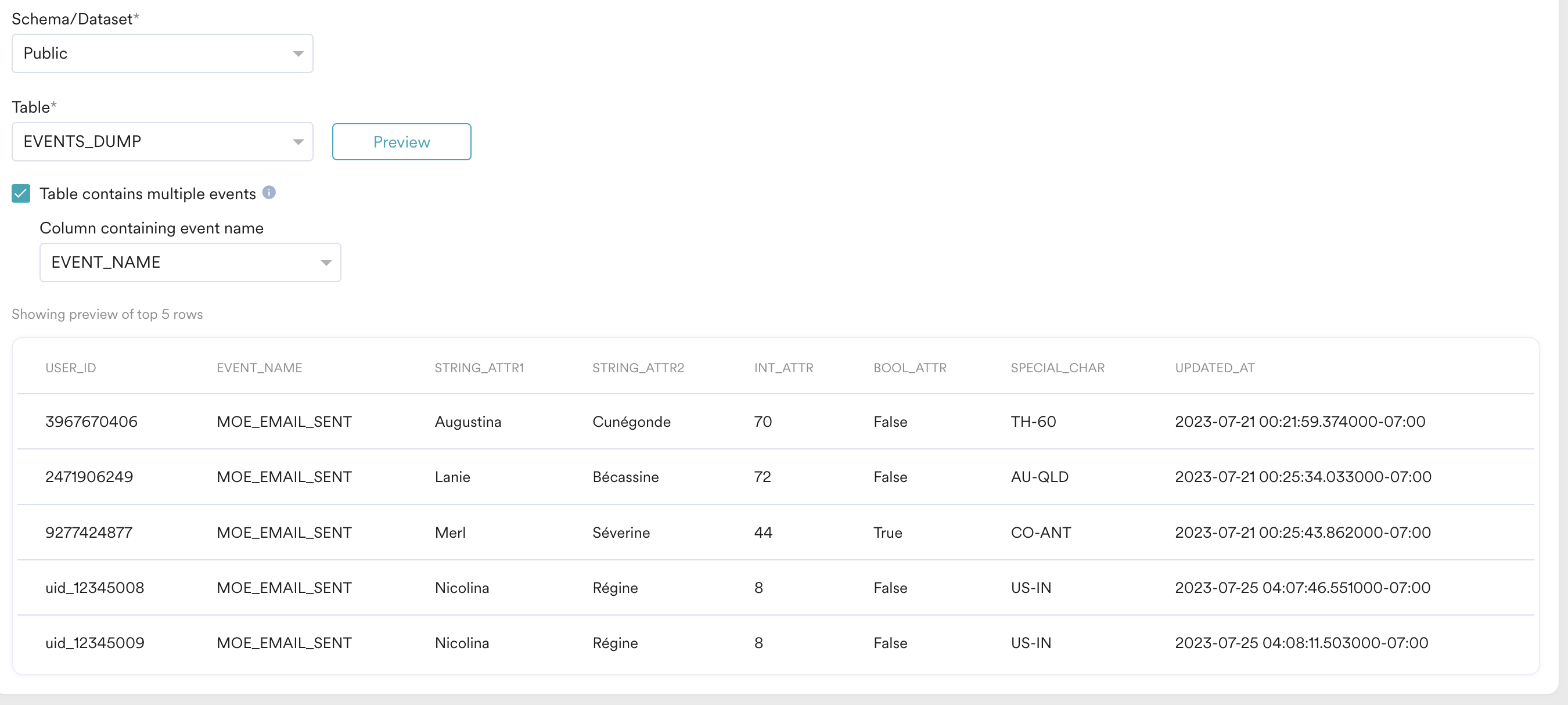

In addition to the above steps, MoEngage provides additional support for tables containing multiple events. If your table contains multiple events, you must first Preview the table and then select the Table contains multiple events check box.

MoEngage uses the values of the Event name column to filter out rows that need to be imported. It imports only those rows that match the selected event name. You can designate an existing column in your table as the event name column. After selecting this column and previewing the data again, filtered rows are displayed for your review before proceeding with the import:

After you preview your table, you will move to the second step, Import configuration and action.

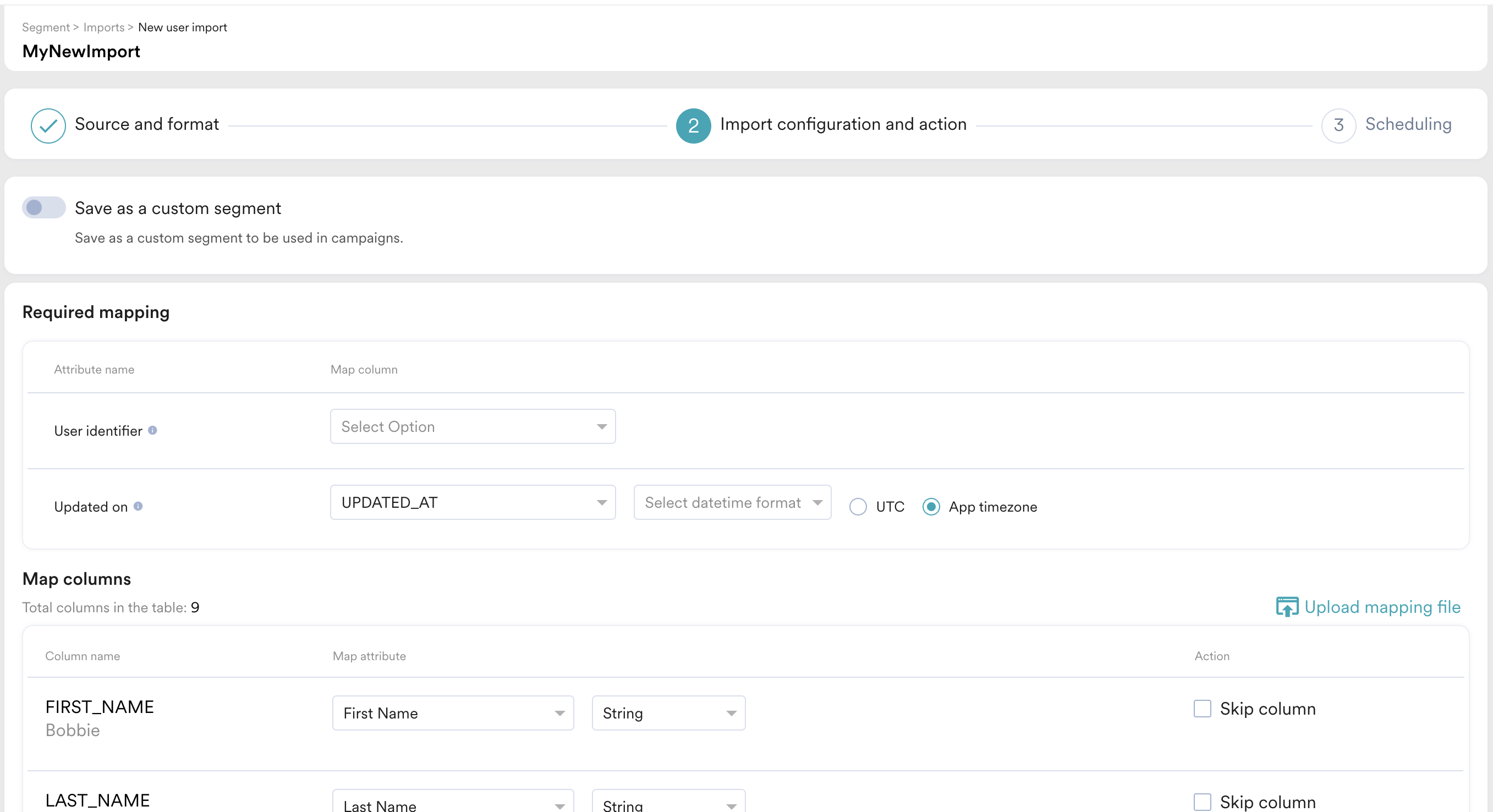

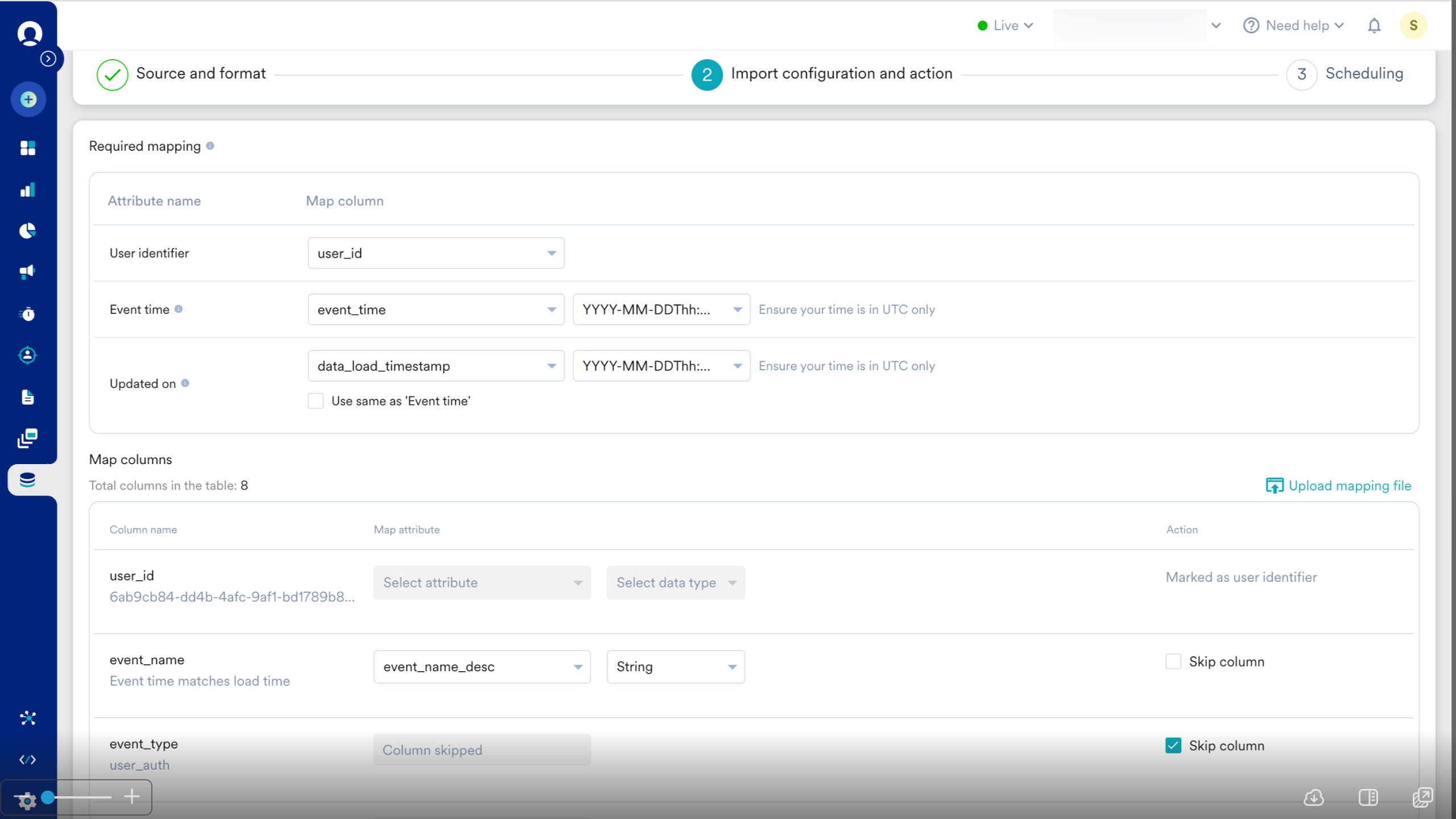

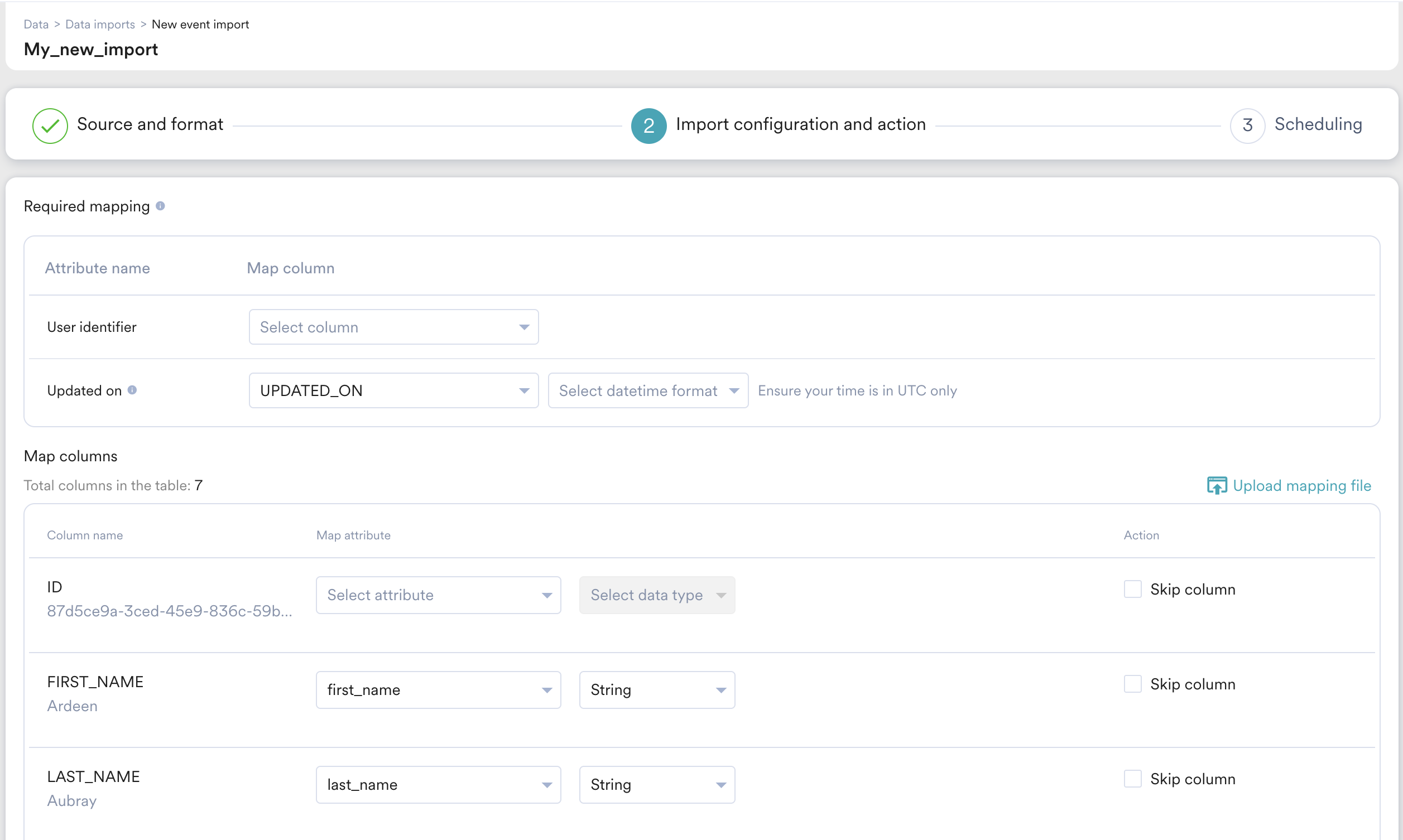

Step 2: Map Your Columns to MoEngage Attributes

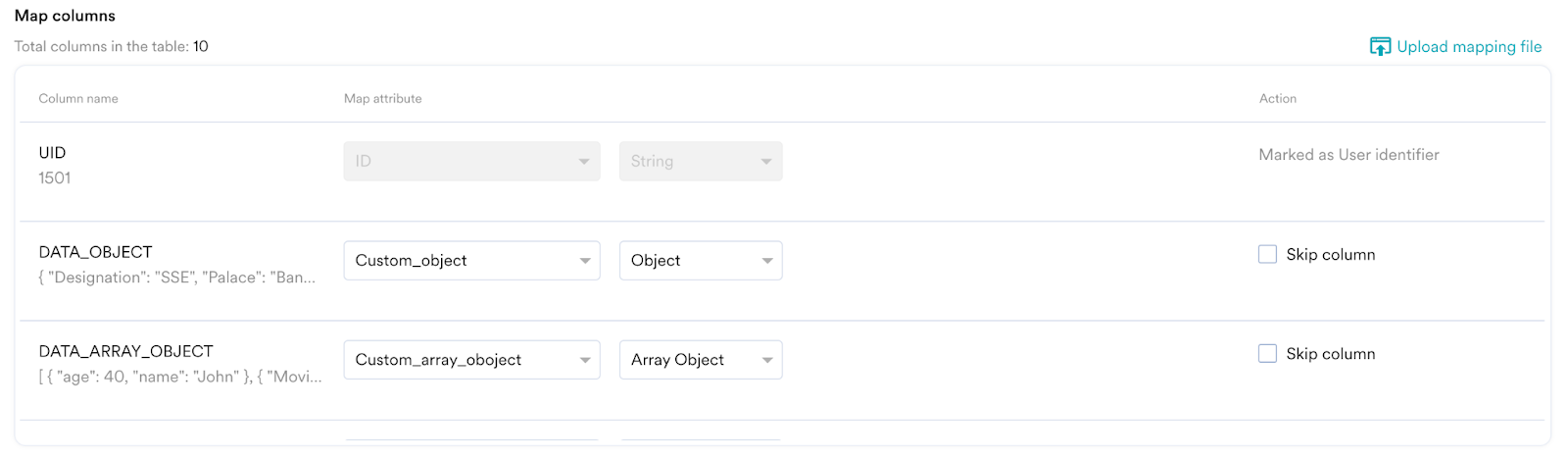

In this step, you need to map the columns of your table to the attributes present in MoEngage. All your columns are shown one below the other:

1. Column name: This specifies the column name to be mapped. Below the column name, MoEngage also displays a sample value (picked from the first row of the fetched table in the previous step) for your reference.
2. Map attribute: This specifies the MoEngage attribute you want to map the table column to. You can also choose to create a new attribute. Some attributes support ingestion from multiple data types, so you need to pick the column's data type as well. For the datetime columns, you must pick the format. For more information, refer here.
3. Action: You can optionally choose to skip the column. The skipped column will not be imported.

Depending on the type of import, there are a few mandatory mappings required:

After a mandatory mapping is marked, it will reflect against the column name in the mapping table, and you can no longer mark the column as skippable.

Just like new events, you can also create a new user attribute. To do so:

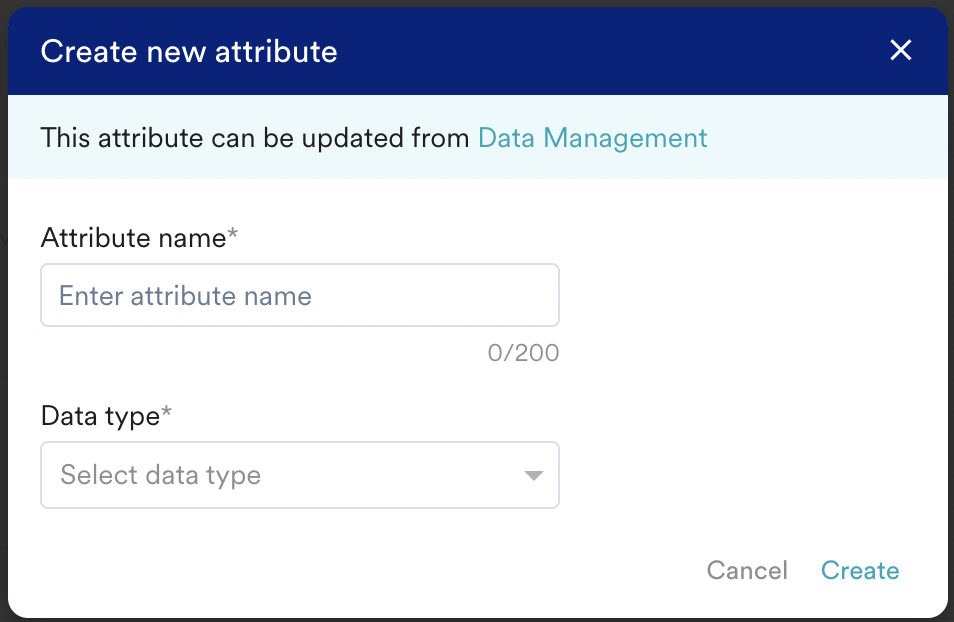

1. Click + Create attribute available in the Select attribute list. The Create new attribute dialog box is displayed.

2. In the Attribute name box, type a name for your attribute.
3. In the Data type list, select a data type. You can edit this and existing attributes from the Data Management page.

Manifest Files

Optionally, you can choose to auto-map these columns by uploading a Manifest file. To upload a manifest file:

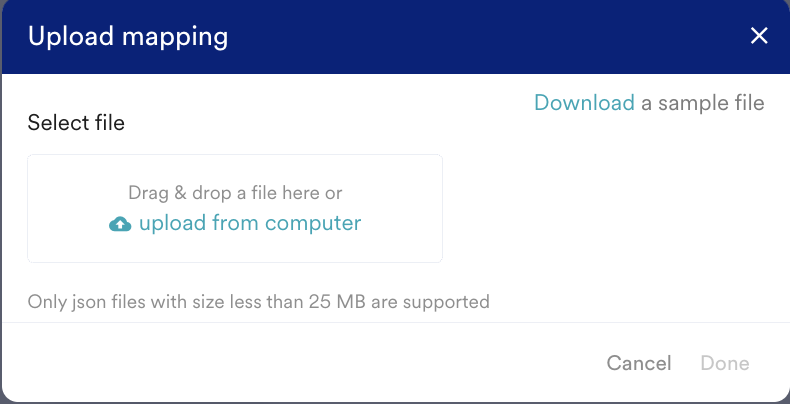

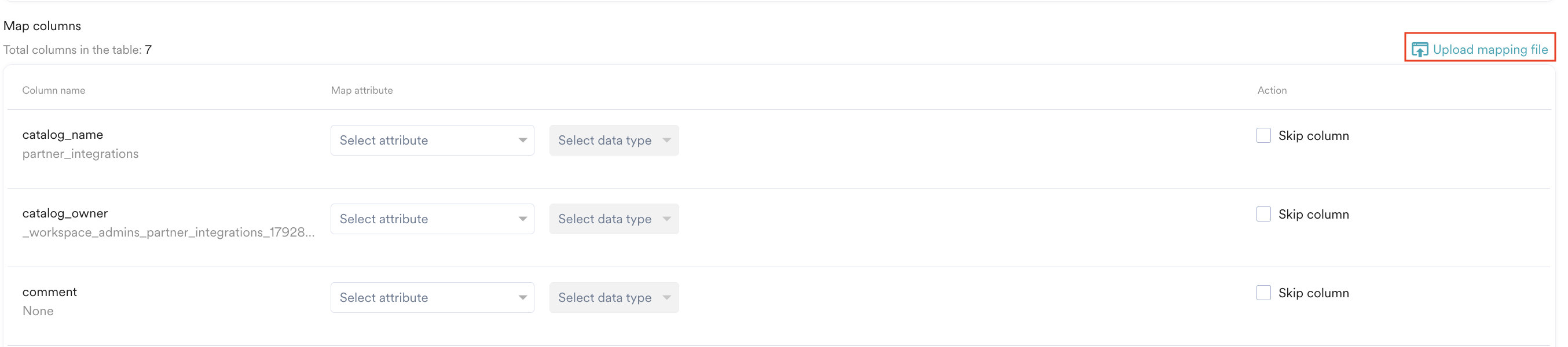

1. Click the Upload mapping file in the upper-right of the mapping table.

2. On the Upload mapping dialog box, upload your manifest file.

3. Click Done.

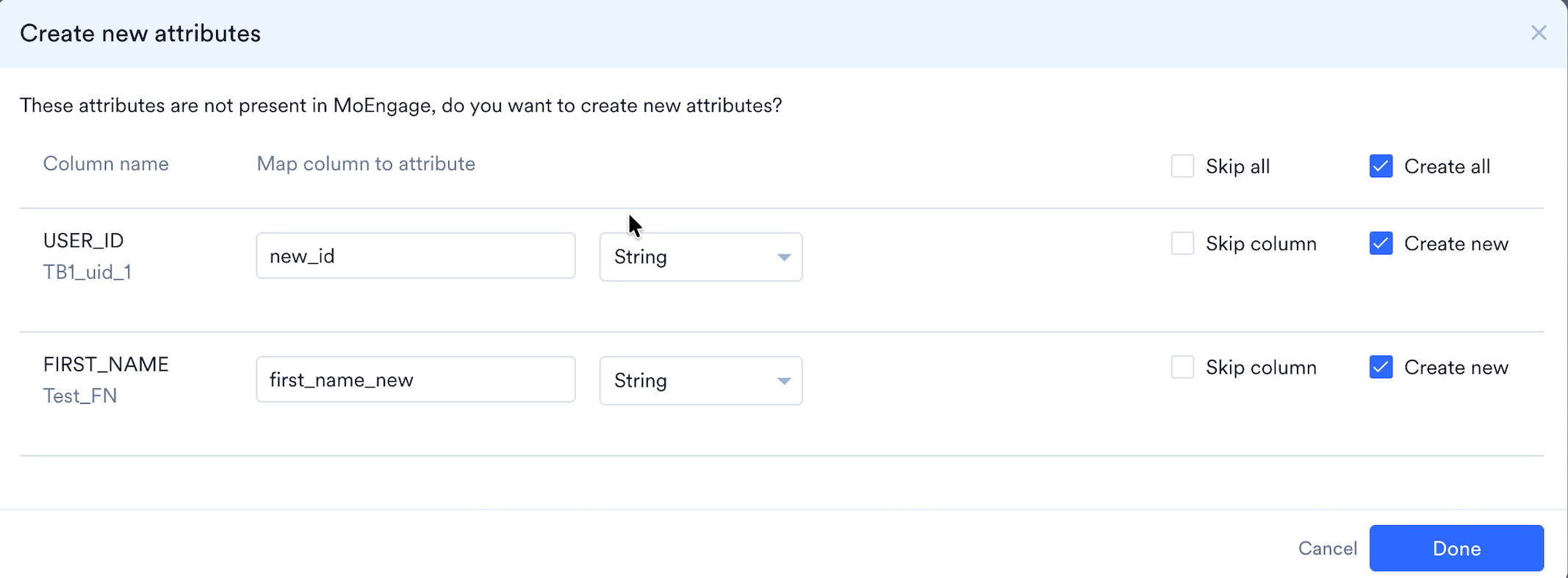

Your mappings are auto-configured accordingly. Any columns with non-MoEngage attributes are left blank, and you can either manually map the column or create a new attribute for it. Make sure your manifest file follows the expected conventions.

Any additional columns in your Manifest File that are not in your table will be ignored. Also, if the mapping for an existing table column is not present in the manifest file, MoEngage will keep the mapping blank so that you can manually configure it.

Support for Object Data Type

The Object data type is supported in Databricks as well.

Store Compatible JSON Data in Databricks

To store JSON data inside Databricks, you must change the data type of the column to VARIANT type. For more information, refer here. The JSON stored inside Databricks should be a valid JSON; otherwise, the values will not be written as JSON. Here is an example JSON column:

{ "Designation": "SSE", "Palace": "Banglore", "age": 30, "name": "Shasha" }

Import JSON Data via Databricks

The JSON data can be imported into Databricks by associating existing attributes in the MoEngage platform that have been designated as Object type with columns in Databricks.

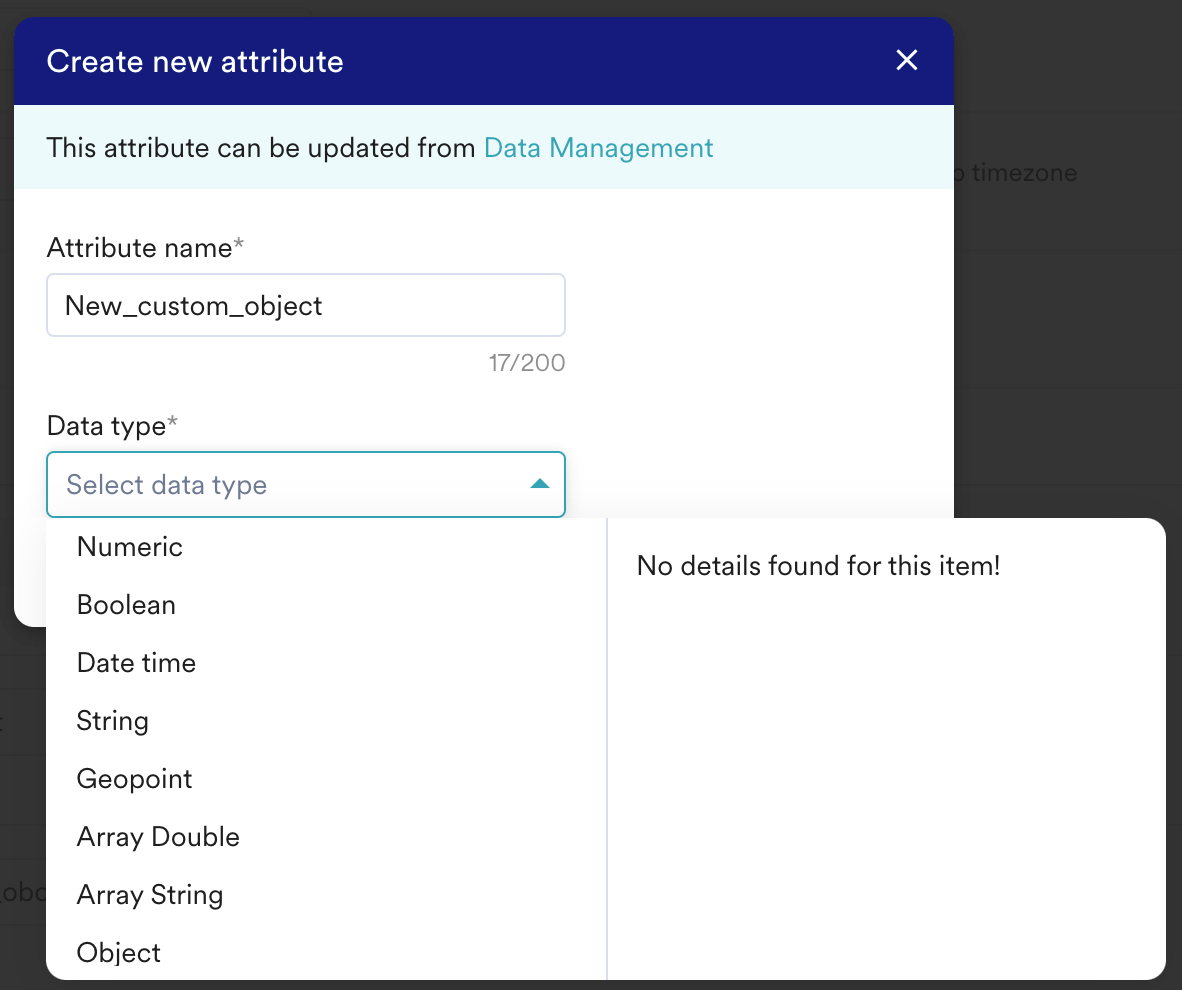

You can also create new Object attributes by clicking the Create new attribute in the Select attribute list under Map attribute mapping section.

Save Users as a Segment

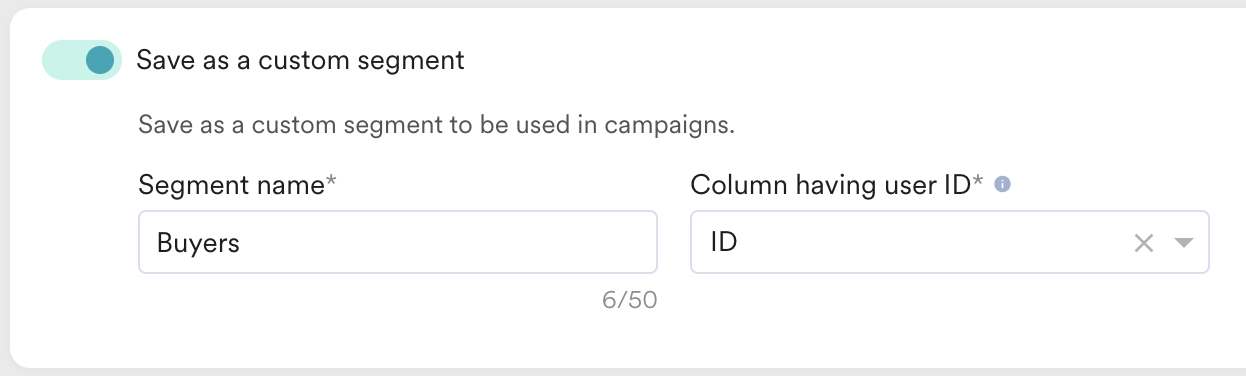

When importing users, you can include them in a custom segment in MoEngage. The imported users are consistently added to this segment with each sync, and no users will be removed. To save imported users as a custom segment, perform the following steps:

1. Turn the Save as a custom segment toggle on to save your imported users in a custom segment and send tailored campaigns to the same.

2. In the Segment name box, type a name for your segment.
3. In the Column having user ID list, select the Identifier column in your table.

Import Behaviour

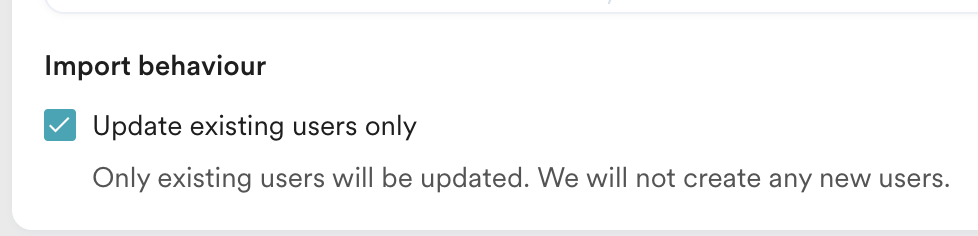

In the case of User Imports, you can also choose to update existing users only. This is helpful when you want to bulk update users' attributes in MoEngage without creating any new users. To enable this, select the Update existing users only check box under Import Behaviour:

Send Import Notifications

You can choose to be notified about the status of your imports via email. To do so:

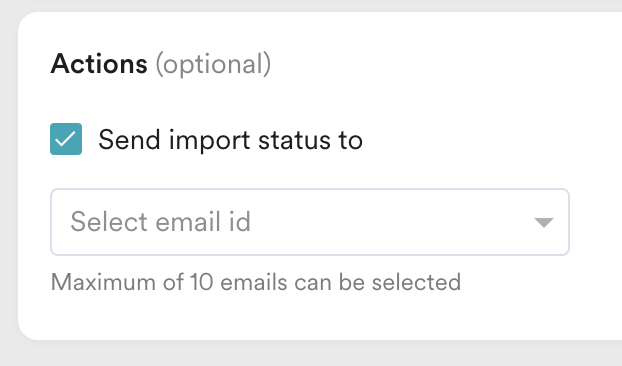

1. Select the Send import status to check box.
2. In the Select email id list, select the email ID. You can select up to 10 emails to send the status emails to.


The import status email contains info about the following events:

• An import was created
• An import was successful
• An import failed

After completing all mappings, click Next.

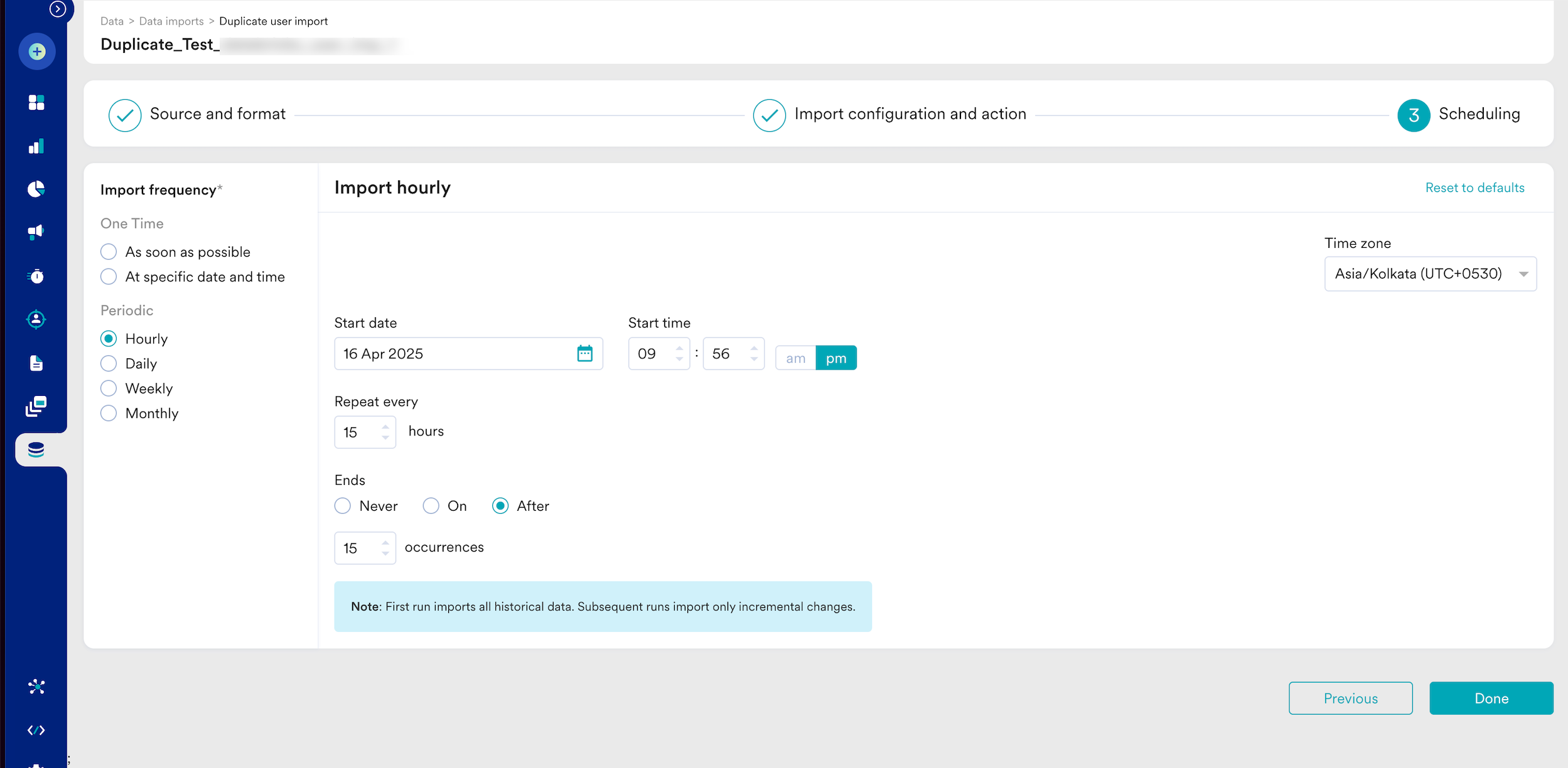

Step 3: Select the Import Frequency

In this step, you must define when to sync with your tables. We support the following types of imports:

• One-Time: You can run the import as soon as possible or at a later date and time (scheduled). All existing rows that match the import criteria are imported.
• Periodic: You can run your imports hourly, daily, weekly, or monthly, or with intervals and advanced configurations.

Optionally, you can specify whether the import should end after a specified set of occurrences or at a particular date. Click Done when ready.

Duplicate Imports

A duplicate import is considered when the:

• Users/ Events import types are the same.
• Event name/ Registered/ Anonymous/ All users import subtypes are the same.
• Event name/ Registered/Anonymous/All users import types with the same Databricks connection.
• Event name/ Registered/Anonymous/All users import types with the Schema/Dataset and Table/View are the same.
