Webhooks

The Webhook alert destination allows you to receive real-time alert notifications by sending an HTTP POST request with a detailed JSON payload to a URL you specify. This guide details the structure of the JSON payload and provides sample requests for different alert types.

info	Information When a configured alert is triggered, MoEngage sends an HTTP POST request to your designated webhook URL, enabling seamless integration with your internal systems, monitoring tools, or third-party services.

Set Up Your Webhook URL

To set up a webhook destination, you must provide a URL. Your URL must be a publicly accessible endpoint that accepts HTTP POST requests with a JSON body.

info	Information Your webhook URL is the address of your application or service that will listen for and process the incoming alert notifications.

After obtaining your URL using one of these methods, enter it in the Webhook URL field when configuring the alert destination.

Webhook Payload Structure

All webhook notifications follow a consistent JSON structure. The table below describes each field in the payload. Note that some fields, particularly within the entity_data object, are specific to certain alert types.

Field Name	Data Type	Description
alert_id	String	The unique identifier for the alert that was triggered.
alert_name	String	The user-defined name of the alert.
alert_type	String	The type of the alert. Possible values include: CAMPAIGN_STATS FLOW_STATS CAMPAIGN_EXPIRY APNS_TOKEN_EXPIRY FACEBOOK_TOKEN_EXPIRY
db_name	String	The name of the workspace associated with the alert.
alert_evaluation_frequency	Object	An object describing how often the alert condition is checked.
alert_evaluation_frequency.value	Number	The numeric value for the frequency (for example, 1).
alert_evaluation_frequency.unit	String	The unit of frequency (for example, day, hour).
alert_triggered_at	String	The ISO 8601 timestamp indicating when the alert was triggered.
alert_evaluation_criteria	Object	An object containing the specific conditions that triggered the alert.
alert_evaluation_criteria.name	String	The name of the metric being evaluated (for example, DELIVERY_RATE, EXPIRY_DAYS).
alert_evaluation_criteria.operator	String	The comparison operator used. For example, gt (greater than), lt (less than).
alert_evaluation_criteria.threshold	Number	The threshold value that was breached.
alert_evaluation_criteria.unit	String	The unit for the threshold (for example, percentage, count, day).
alert_evaluation_criteria.range_start	String	The ISO 8601 timestamp for the start of the evaluation window.
alert_evaluation_criteria.range_end	String	The ISO 8601 timestamp for the end of the evaluation window.
alert_evaluation_criteria.moving_avg_range	Object	Available only for relative alerts. Describes the window used to calculate the moving average (for example, the last 7 days).
entity_data	Object	A flexible object containing details about the specific entities (for example, campaigns, flows) that triggered the alert. This object is not available for certain alerts, such as APNS_TOKEN_EXPIRY.
entity_data.count	Number	The total number of entities listed in the content array.
entity_data.content	Array	An array of objects, where each object represents a single entity that met the alert criteria. The fields within each object vary depending on the alert_type.

entity_data.content Object

The following table describes the possible fields in each object in the entity_data.content array.

Field Name	Data Type	Description
campaign_name	String	The name of the campaign.
campaign_id	String	The unique identifier for the campaign.
flow_name	String	The name of the flow.
flow_id	String	The unique identifier for the flow.
version_name	String	The name of the flow version.
channel	String	The communication channel (for example, PUSH, EMAIL).
delivery_type	String	The delivery type (for example, PROMOTIONAL, TRANSACTIONAL).
current_value	Number	The metric's current value for the entity that triggered the alert.
moving_avg_value	Number	The metric's calculated moving average value. Available only for relative alerts.
expiry_in_days	Integer	The number of days until the campaign expires.
event_type	String	The type of the event being tracked.
event_name	String	The name of the event being tracked.

Verify the Webhook Signature

To ensure that webhook requests are authentic and originate from MoEngage, we include a digital signature in the request headers.

info	Info It is recommended to validate this signature on your server to prevent unauthorized access and ensure data integrity.

The signature is passed in the Signature HTTP header. It is generated by creating a SHA-256 hash of your API key concatenated with the raw request body.

Generate and Verify the Signature

Get your Campaign Report API Key: You can find this key in your MoEngage UI by navigating to Settings > Account > APIs.
Prepare the Signature String: Concatenate your Campaign Report API key, a pipe character (|), and the raw JSON request body.
Format: YOUR_API_KEY + "|" + RAW_REQUEST_BODY
Calculate the Hash: Create a SHA-256 hash of the signature string and encode it as a hexdigest.
Compare Signatures: Compare the hash you generated with the value from the Signature header in the incoming request. If they match, the request is authentic.

Example: Generate the Signature in Python

from hashlib import sha256
request_body_str = '{"alert_id":"","alert_name":"",...}'# step 1
campaigns_report_api_key = "YOUR_CAMPAIGN_REPORT_API_KEY"
signature_base_string = campaigns_report_api_key + "|" + request_body_str # step 2
generated_signature = sha256(signature_base_string.encode('utf-8')).hexdigest() # step 3
print("Generated Signature: ", generated_signature) #step 4

Sample Payloads and cURL Requests

Below are samples of cURL commands demonstrating the POST request and JSON payload your webhook endpoint will receive. Replace 'https://your-webhook-url.com/endpoint' with your actual endpoint URL.

Campaign Stats (CAMPAIGN_STATS)

Absolute Threshold Alert

This alert triggers when a metric crosses a fixed value.

curl -X POST 'https://your-webhook-url.com/endpoint' \
-H 'Content-Type: application/json' \
-d '
      {
    "alert_id": "{{alert_id}}",
    "alert_name": "Delivery Rate Breach",
    "alert_type": "CAMPAIGN_STATS",
    "db_name": "{{db_name}}",
    "alert_evaluation_frequency": {
        "value": 1,
        "unit": "day"
    },
    "alert_triggered_at": "2025-03-21T23:59:00Z",

    "alert_evaluation_criteria": {
        "name": "DELIVERY_RATE",
        "operator": "gt",
        "threshold": 10,
        "unit": "percentage",
        "range_start": "2025-03-21T23:59:00Z",
        "range_end": "2025-03-22T23:59:00Z"
    },

    "entity_data": {
        "count": 2,
        "content": [
            {
                "campaign_name": "",
                "campaign_id": "",
                "flow_name": "",
                "flow_id": "",
                "version_name": "",
                "channel": "",
                "delivery_type": "",
                "current_value": 70.5
            },
            {
                "campaign_name": "",
                "campaign_id": "",
                "flow_name": "",
                "flow_id": "",
                "version_name": "",
                "channel": "",
                "delivery_type": "",
                "current_value": 70.5
            }
        ]
    }

}
'

Relative Threshold Alert (with Moving Average)

This alert triggers when a metric deviates from its historical moving average. A moving average is the average of a metric over a specific number of past periods (for example, the last 7 days), which helps identify significant deviations from recent performance trends.

curl -X POST 'https://your-webhook-url.com/endpoint' \
-H 'Content-Type: application/json' \
-d '
{
      {
    "alert_id": "{{alert_id}}",
    "alert_name": "Delivery Rate Breach",
    "alert_type": "CAMPAIGN_STATS",
    "db_name": "{{db_name}}",
    "alert_evaluation_frequency": {
        "value": 1,
        "unit": "day"
    },
    "alert_triggered_at": "2025-03-21T23:59:00Z",

    "alert_evaluation_criteria": {
        "name": "DELIVERY_RATE",
        "operator": "gt",
        "threshold": 10,
        "unit": "percentage",
        "moving_avg_range": {
            "value": 7,
            "unit": "day"
        },
        "range_start": "2025-03-21T23:59:00Z",
        "range_end": "2025-03-22T23:59:00Z"
    },

    "entity_data": {
        "count": 2,
        "content": [
            {
                "campaign_name": "",
                "campaign_id": "",
                "flow_name": "",
                "flow_id": "",
                "version_name": "",
                "channel": "",
                "delivery_type": "",
                "current_value": 70.5,
                "moving_avg_value": 10.9
            },
            {
                "campaign_name": "",
                "campaign_id": "",
                "flow_name": "",
                "flow_id": "",
                "version_name": "",
                "channel": "",
                "delivery_type": "",
                "current_value": 70.5,
                "moving_avg_value": 10.9
            }
        ]
    }

}
'

Flow Stats (FLOW_STATS)

These alerts are similar to Campaign Stats but focus on flow-level metrics.

curl -X POST 'https://your-webhook-url.com/endpoint' \
-H 'Content-Type: application/json' \
-d '
{
      {
    "alert_id": "{{alert_id}}",
    "alert_name": "new alert for the flow commons",
    "alert_type": "FLOW_STATS",
    "db_name": "{{db_name}}",
    "alert_evaluation_frequency": {
        "value": 1,
        "unit": "day"
    },
    "alert_triggered_at": "2025-03-21T23:59:00Z",

    "alert_evaluation_criteria": {
        "name": "TRIP_STARTED",
        "operator": "lt",
        "threshold": 20,
        "unit": "count",
        "range_start": "2025-03-21T23:59:00Z",
        "range_end": "2025-03-22T23:59:00Z"
    },

    "entity_data": {
        "count": 2,
        "content": [
            {
                "campaign_name": "",
                "campaign_id": "",
                "flow_name": "",
                "flow_id": "",
                "version_name": "",
                "channel": "",
                "delivery_type": "",
                "current_value": 70.5
            },
            {
                "campaign_name": "",
                "campaign_id": "",
                "flow_name": "",
                "flow_id": "",
                "version_name": "",
                "channel": "",
                "delivery_type": "",
                "current_value": 70.5
            }
        ]
    }

}
'

Campaign Expiry (CAMPAIGN_EXPIRY)

This alert notifies you when campaigns are nearing their expiration date.

curl -X POST 'https://your-webhook-url.com/endpoint' \
-H 'Content-Type: application/json' \
-d '
{
      {
    "alert_id": "{{alert_id}}",
    "alert_name": "Expiry Breach",
    "alert_type": "CAMPAIGN_EXPIRY",
    "db_name": "{{db_name}}",
    "alert_evaluation_frequency": {
        "value": 1,
        "unit": "day"
    },
    "alert_triggered_at": "2025-03-21T23:59:00Z",

    "alert_evaluation_criteria": {
        "name": "EXPIRY_DAYS",
        "operator": "lt",
        "threshold": 7,
        "unit": "day",
        "range_start": "2025-03-21T23:59:00Z",
        "range_end": "2025-03-22T23:59:00Z"
    },

    "entity_data": {
        "count": 2,
        "content": [
            {
                "campaign_name": "",
                "campaign_id": "",
                "channel": "",
                "delivery_type": "",
                "expiry_in_days": 5
            },
            {
                "campaign_name": "",
                "campaign_id": "",
                "channel": "",
                "delivery_type": "",
                "expiry_in_days": 5
            }
        ]
    }

}
'

APNS Token Expiry (APNS_TOKEN_EXPIRY)

This alert warns you when your Apple Push Notification Service (APNS) token is about to expire. Note that this payload does not contain an entity_data object.

curl -X POST 'https://your-webhook-url.com/endpoint' \
-H 'Content-Type: application/json' \
-d '
{
    "alert_id": "{{alert_id}}",
    "alert_name": "Apns token Breach",
    "alert_type": "APNS_TOKEN_EXPIRY",
    "db_name": "{{db_name}}",
    "alert_evaluation_frequency": {
        "value": 1,
        "unit": "day"
    },
    "alert_triggered_at": "2025-03-21T23:59:00Z",

    "alert_evaluation_criteria": {
        "name": "EXPIRY_DAYS",
        "operator": "lt",
        "threshold": 7,
        "unit": "day",
        "range_start": "2025-03-21T23:59:00Z",
        "range_end": "2025-03-22T23:59:00Z"
    }
}
'

Facebook Token Expiry (FACEBOOK_TOKEN_EXPIRY)

This alert warns you when your Facebook token is about to expire. This payload also does not contain an entity_data object.

curl -X POST 'https://your-webhook-url.com/endpoint' \
-H 'Content-Type: application/json' \
-d '
{
      {
    "alert_id": "{{alert_id}}",
    "alert_name": "fb token Breach",
    "alert_type": "FACEBOOK_TOKEN_EXPIRY",
    "db_name": "{{db_name}}",
    "alert_evaluation_frequency": {
        "value": 1,
        "unit": "day"
    },
    "alert_triggered_at": "2025-03-21T23:59:00Z",

    "alert_evaluation_criteria": {
        "name": "EXPIRY_DAYS",
        "operator": "lt",
        "threshold": 7,
        "unit": "day",
        "range_start": "2025-03-21T23:59:00Z",
        "range_end": "2025-03-22T23:59:00Z"
    }
}
'

Integrate Alert Management via Webhook URL

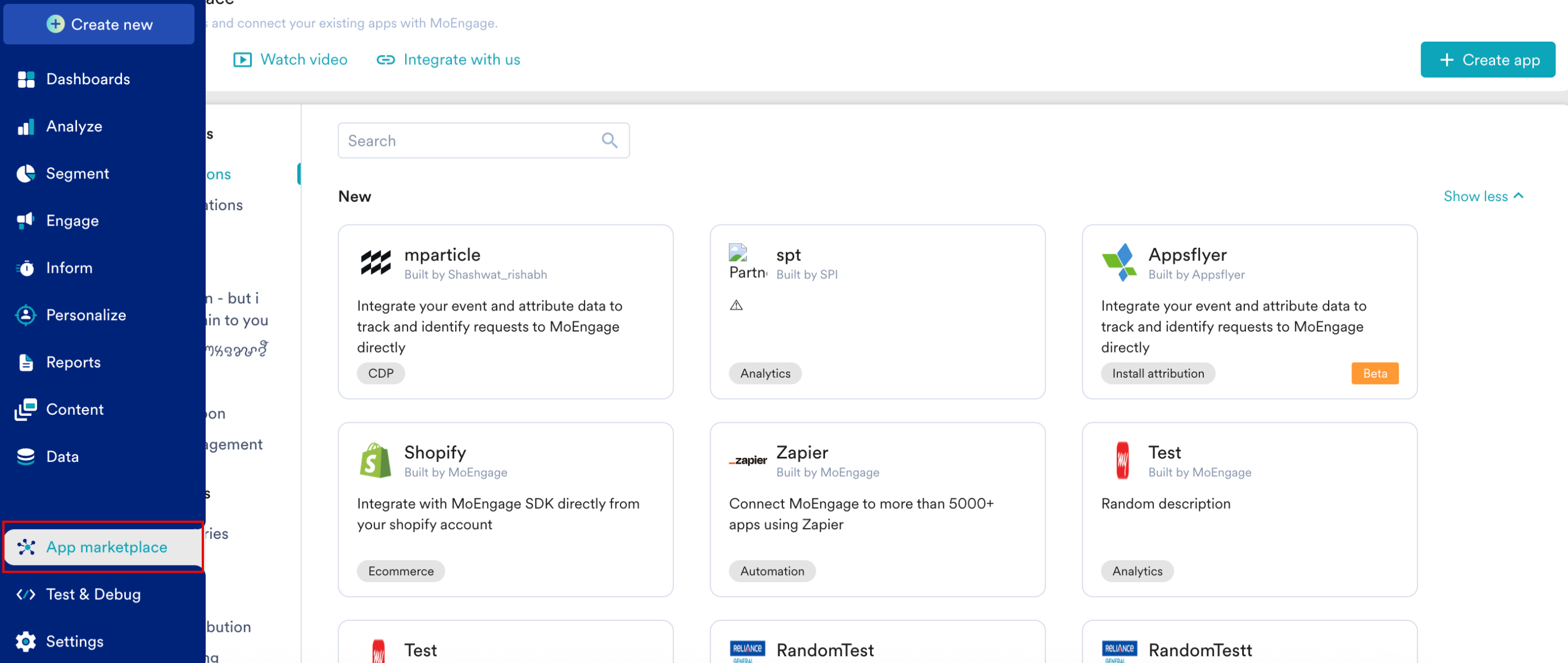

On the left navigation menu of your MoEngage UI, click App marketplace.

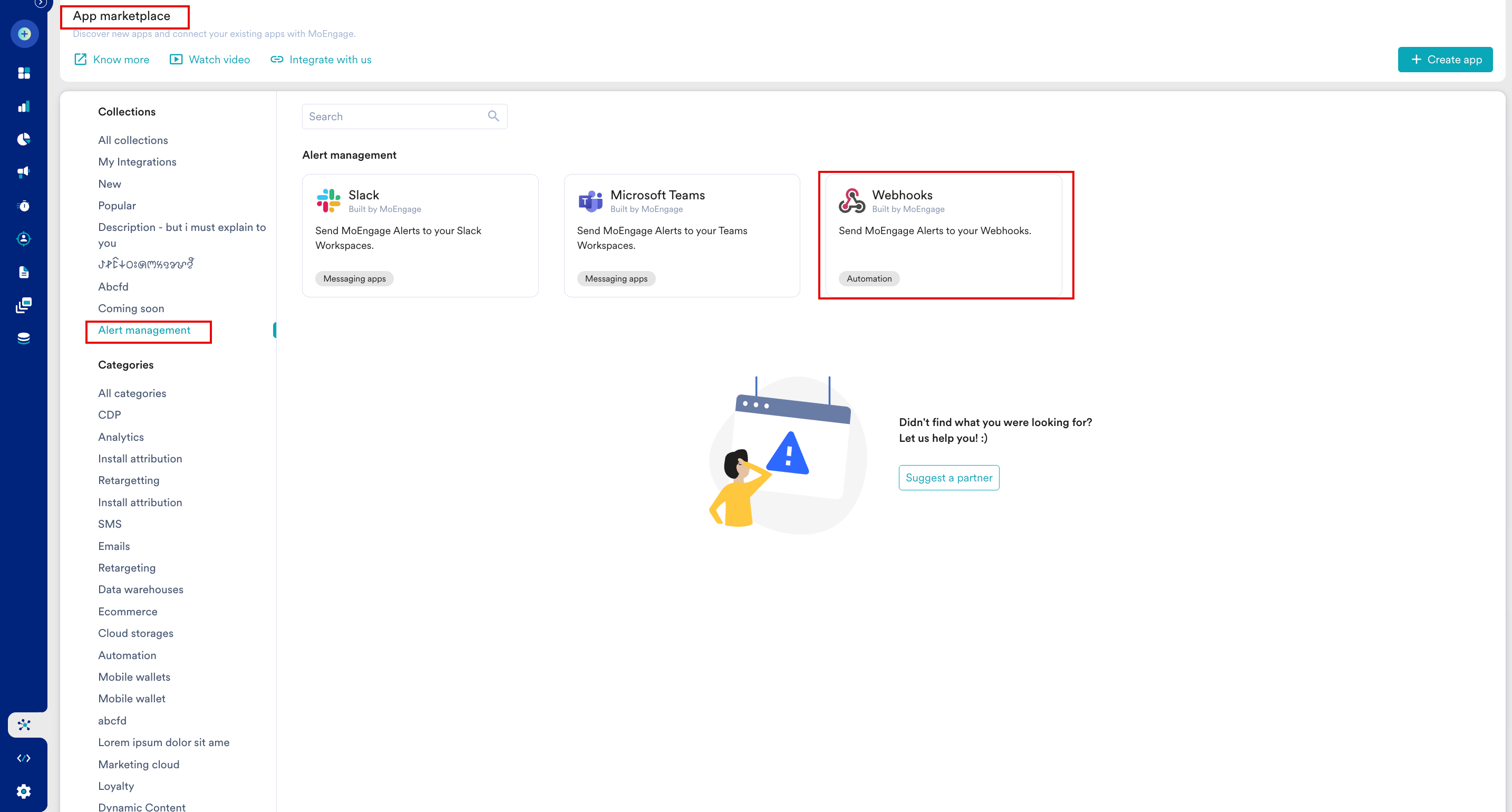

On the App marketplace page, click Alert management, and then select Webhooks.

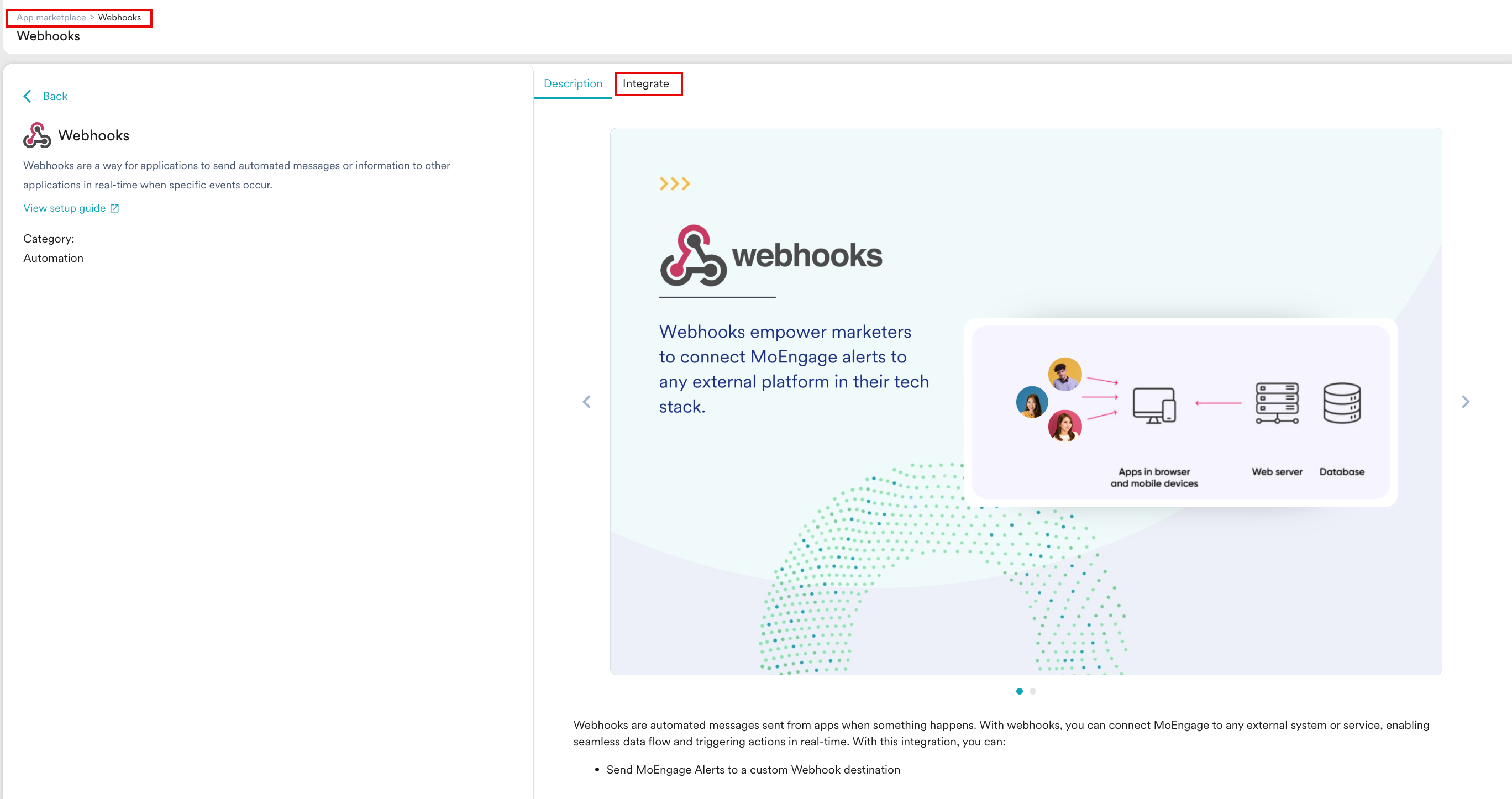

On the Webhooks page, click the Integrate tab.

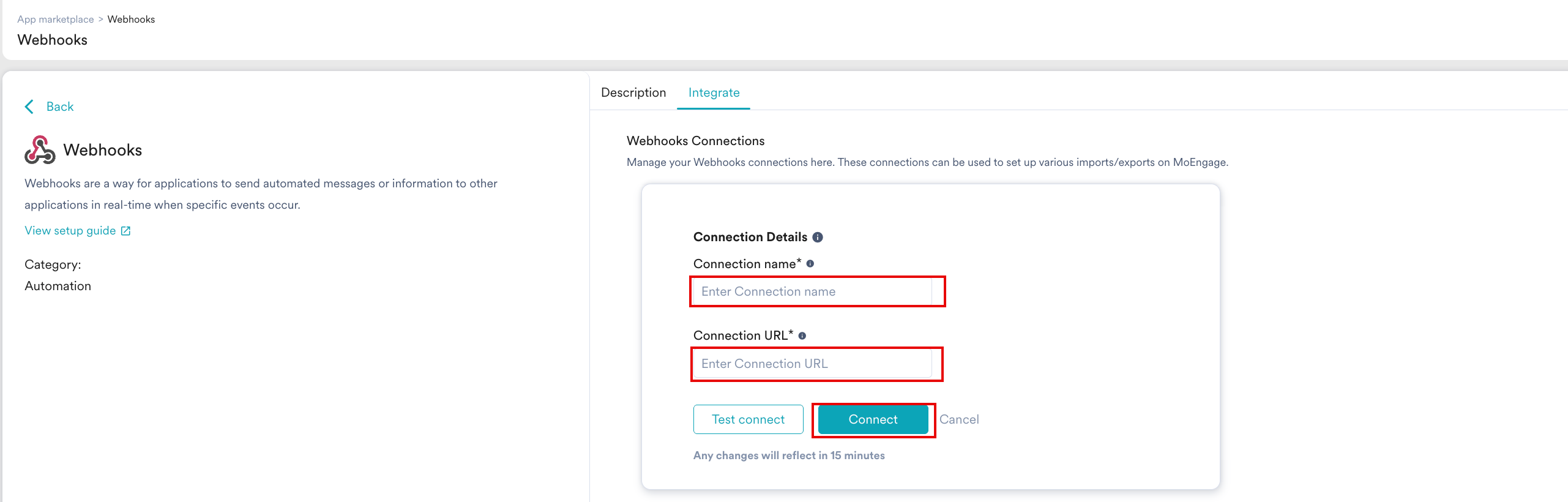

On the Integrate tab, enter the following details:
- Connection name: Enter the connection name.
- Connection URL: Enter the Webhook URL created as mentioned here.
Click Connect.

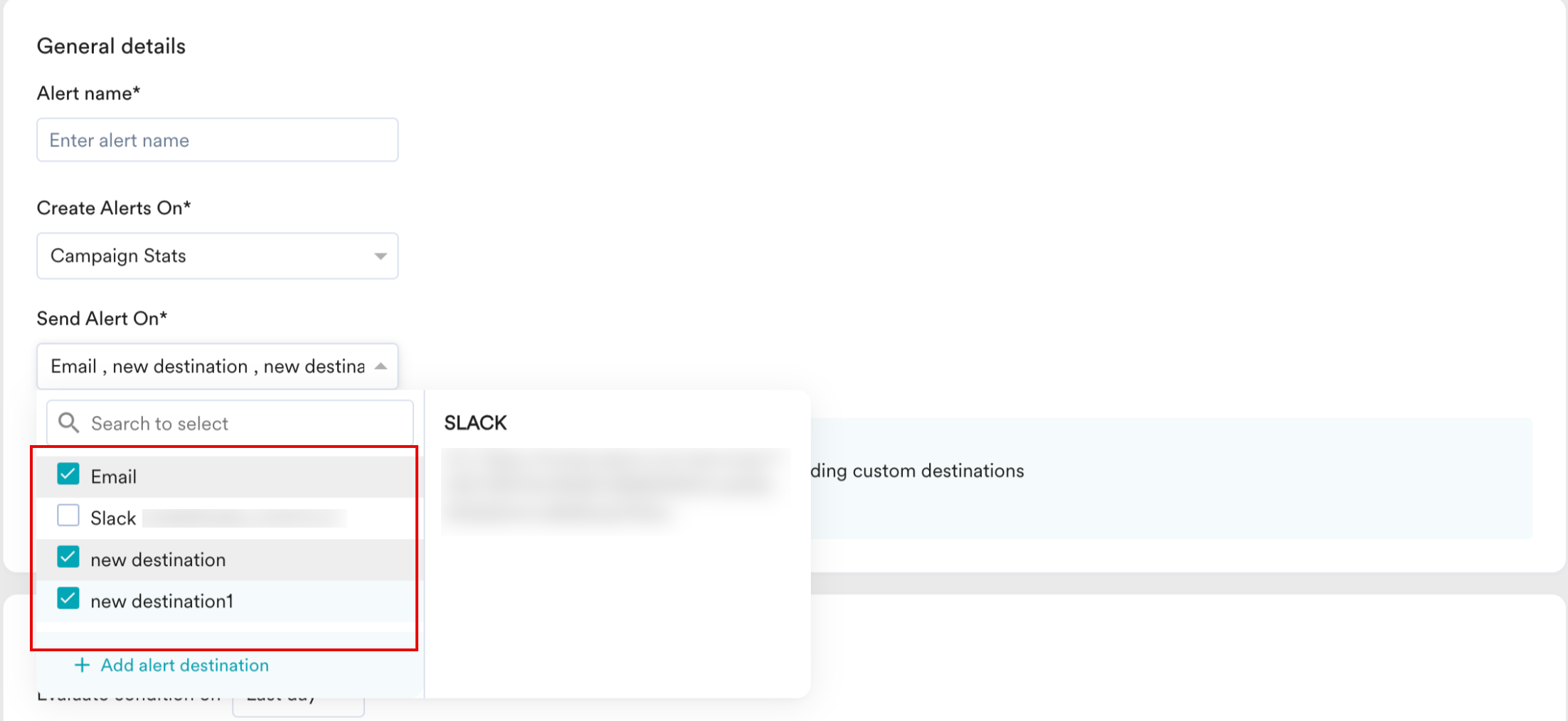

After the connection is defined, you can select the defined new destination from the Send Alerts On list while creating an alert on the Alert management page. You can select Email, Slack, or both.

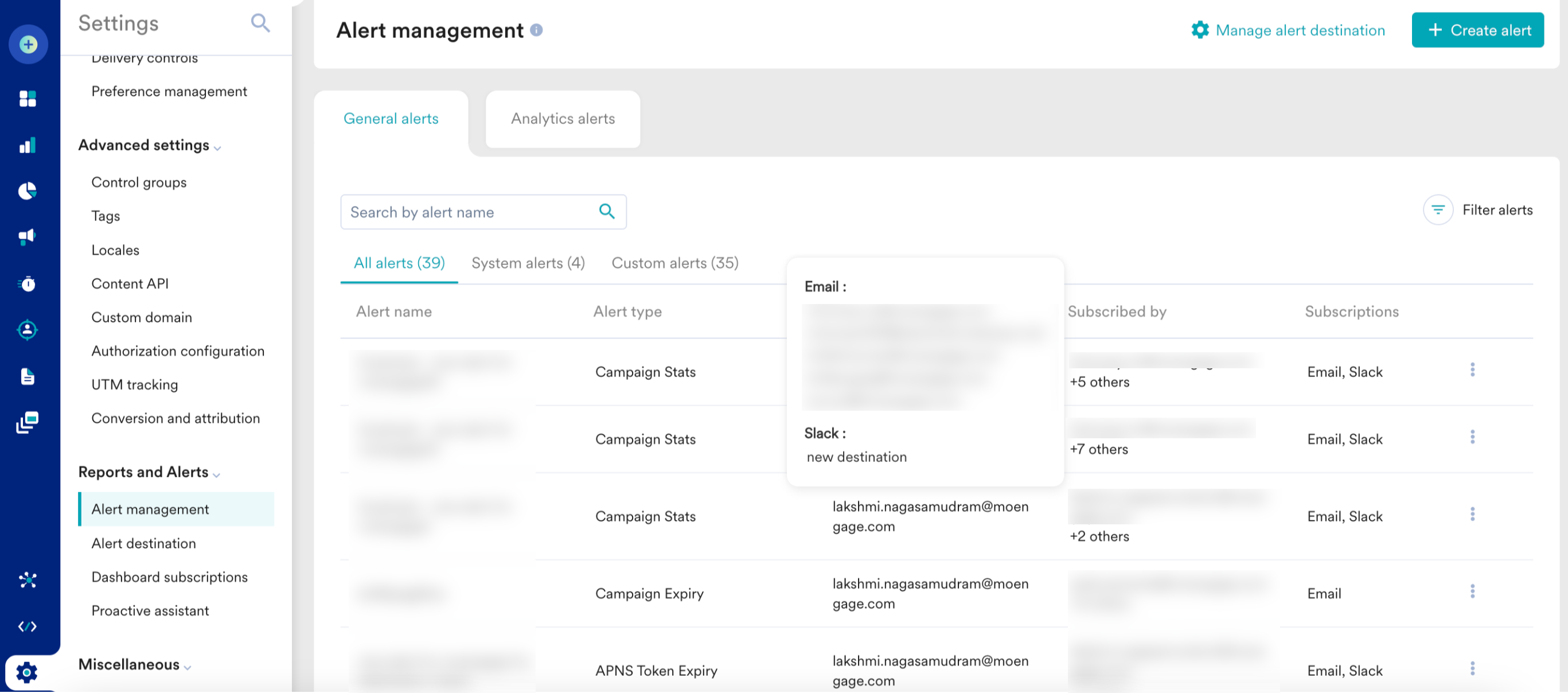

After adding the destinations, you can view the defined alert destinations on the Alert management page.
