Create a Flow Using AI Assist

AI Flows Assist is a powerful, conversational agent built directly into the MoEngage canvas. It allows you to transform high-level marketing strategies into ready-to-deploy customer journeys with simple natural-language prompts.

By acting as a brainstorming partner, Merlin AI reduces manual flow mapping from days to minutes by automatically selecting the most relevant events, attributes, and timing based on your specific database.

To understand the underlying logic of Flows AI Assist, refer to Merlin AI Flows Assist.

Step 1: Initiate Merlin AI Assist

You can access the AI assistant at the start of your creation process:

1. On the left navigation menu in the MoEngage UI, click Engage > Flow.

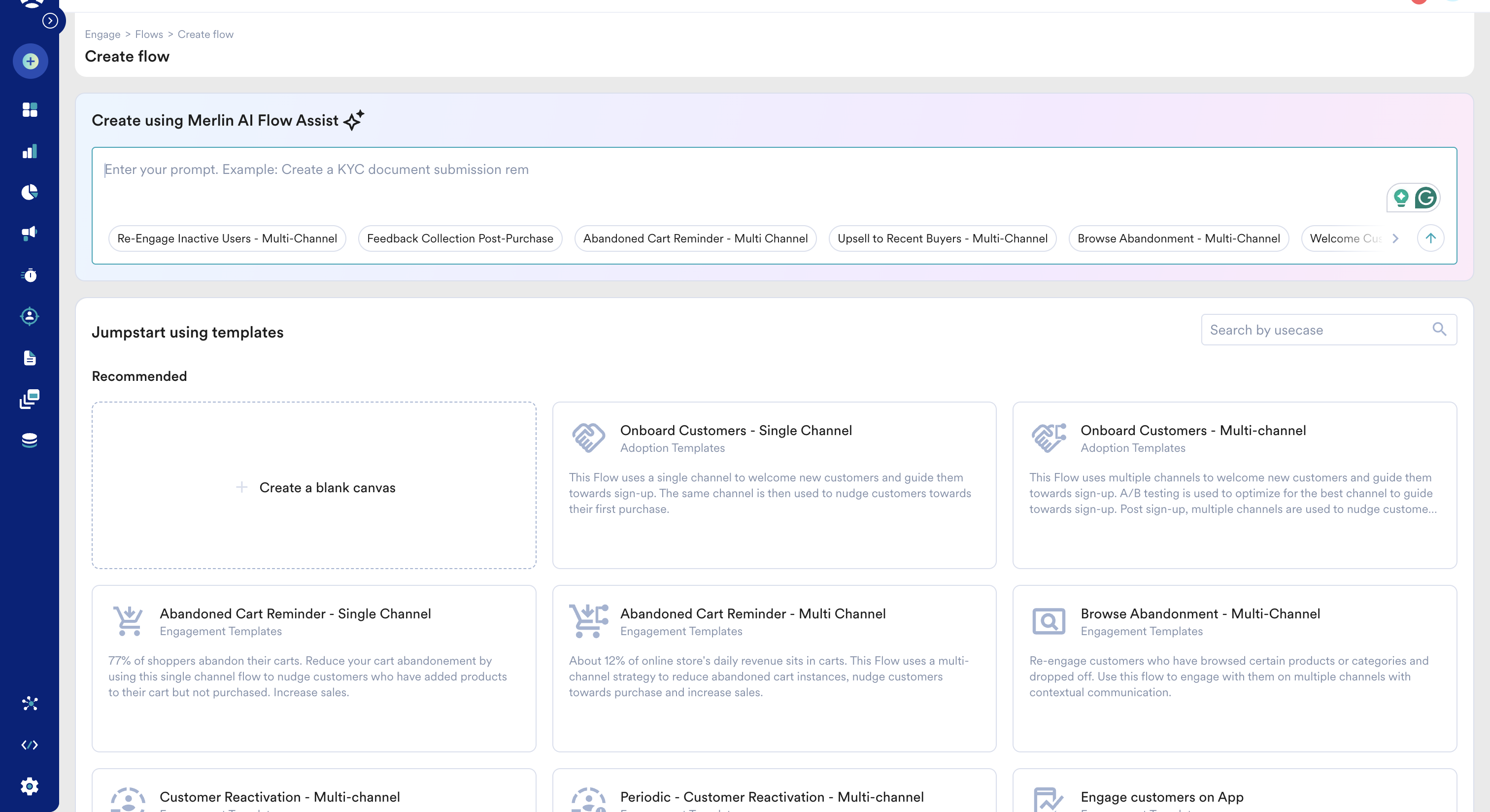

2. On the Create flow page, enter your prompt in the Create using Merlin AI Flow Assist field. You can also choose from the available sample prompts.

Step 2: Define Your Flow (The Prompt)

Describe your flow requirements in plain language. Merlin AI uses a reasoning model to interpret your intent based on your industry and database schema.

1. Enter your prompt: Describe the trigger, the sequence of actions, and the goals.
   • Example: Build a flow to improve Product Purchase by 15% for users who Added to Cart but didn't buy. Use Email and Push, with a 24-hour delay between them.
2. Clarification: If your prompt is ambiguous (for example, you mention "purchase" but have multiple purchase events), Merlin AI asks follow-up questions to ensure the flow is technically accurate.
3. Review the Strategy: Merlin AI explains the logic it intends to build. Review this summary carefully.

Step 3: Design on Canvas

After confirming the logic, Merlin AI translates the conversation into a visual structure.

1. Edit in Canvas: Click the button to populate the stages onto the MoEngage Canvas.
2. Manual Adjustments: You can still manually drag, drop, or delete stages once they appear.
3. Configure Content: Merlin AI builds the structure, but you must click each Action Stage (Email, Push, etc.) to select your specific message templates and creative content.

Step 4: Configure Flow Details and Goals

Even when using AI, you must ensure the flow’s metadata and tracking are correctly configured. Click the Settings icon on the canvas to verify:

1. Flow Details: Enter a name for the flow (minimum 5 characters) and select up to five flow tags.
2. Conversion Goals: Define success (for example, Event: Product Purchased). You can add up to five goals.
3. Flow Controls: Enable Control Groups to accurately measure uplift.

Step 5: Publish

Click Publish to activate the flow according to the configured settings. For more information on Approval Flows, refer to Campaign Approval Workflow.
