Introduction

Effective user onboarding is crucial for driving app engagement and ensuring long-term retention. Leveraging GIFs within In-app messaging functionality offers a visually compelling and interactive means of guiding new users through initial interactions with the application.

For instance, consider a new user who has downloaded a beauty application and requires clear guidance on navigating the app to facilitate product orders, access exclusive discounts, and stay informed on the latest beauty news.

Advantages of using GIFs in an onboarding walkthrough

• Enhanced visual communication: GIFs offer a simplified way to visually communicate an app's navigation and features, making complex processes easier to understand.
• Demonstration of actions: GIFs can quickly demonstrate core functionalities and actions within the app, reducing the need for extensive written instructions.
• Engagement and fun: Animated elements can more effectively capture users' attention than static images, making the onboarding process more enjoyable and memorable.
• Contextual communication: GIFs can effectively communicate context without relying on text, such as demonstrating a loading spinner or a success checkmark.
• Instructional aid: GIFs serve as mini-tutorials, making the learning process more intuitive and reducing the need for extensive written instructions.
• Visual feedback: GIFs can give users immediate visual feedback on their actions, enhancing their interaction with the app.

This article will outline the process of creating an engaging onboarding walkthrough using GIFs within In-app messages. We will achieve this use case in two steps:

1. Identify the key onboarding steps and create GIFs
2. Create an In-app Messaging campaign

Expected Result

Users will experience a smooth and engaging onboarding and quickly understand key app features, which leads to increased user satisfaction and higher retention rates. Users will also easily navigate the app to make their first purchase, apply discounts, and read beauty articles, resulting in more frequent app usage.

Step 1: Identify the Key Onboarding Steps and Create GIFs

1. Identify Key Onboarding Moments: Identify the essential steps and features that new users should understand during their initial interaction with the app. For our example, we aim to ensure that new users can effortlessly order products, discover and apply discounts, and access the latest beauty news.

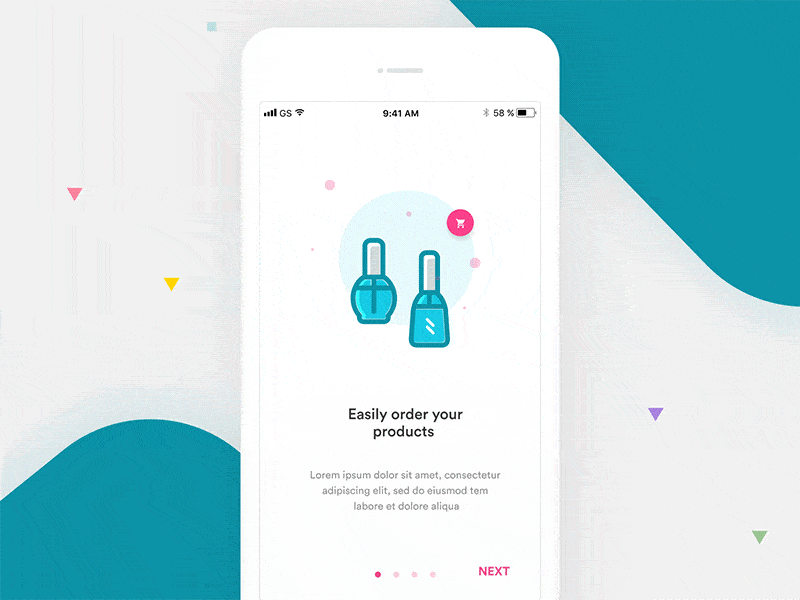

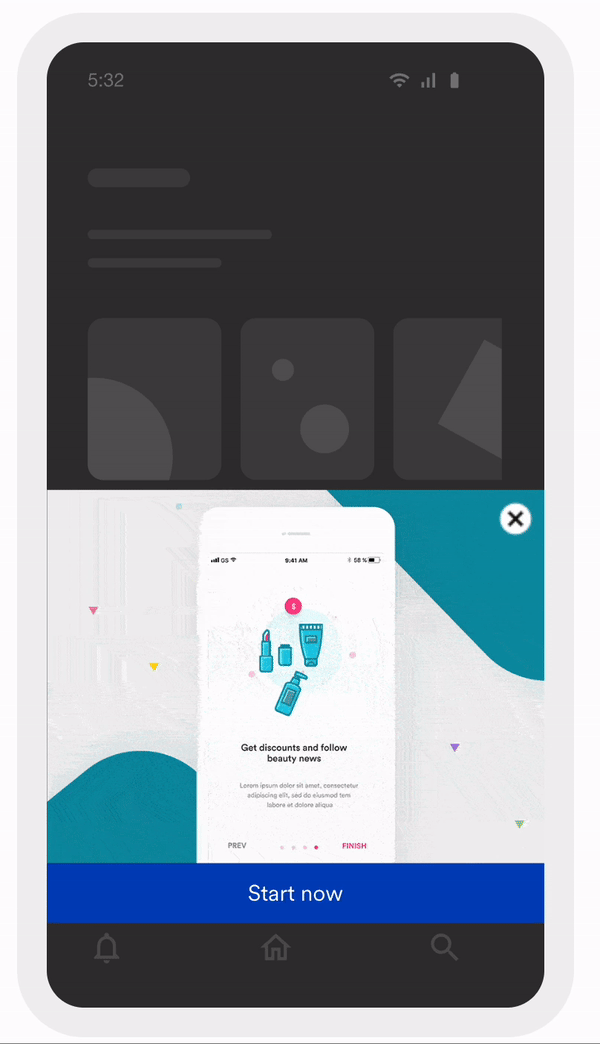

2. Create Informative GIFs: Create a series of short, looping GIFs that effectively demonstrate each key feature or action. Ensure that the GIFs are visually captivating and easy to understand. For instance, include GIFs that include the essential steps that you identified previously. For example, inform new users about your products, explain how to apply discount codes, and guide users to the beauty news section. The following is a sample GIF:


Step 2: Create an In-App Messaging Campaign

In this section, we will create an In-app Messaging campaign targeting new users or users who have recently installed the app. We will incorporate the GIF you created earlier to enhance user onboarding.

Step 2.1: Target Users

1. On the left navigation menu in the MoEngage dashboard, click Engage, and then click Campaigns.
2. On the All campaigns page, click + Create campaign.

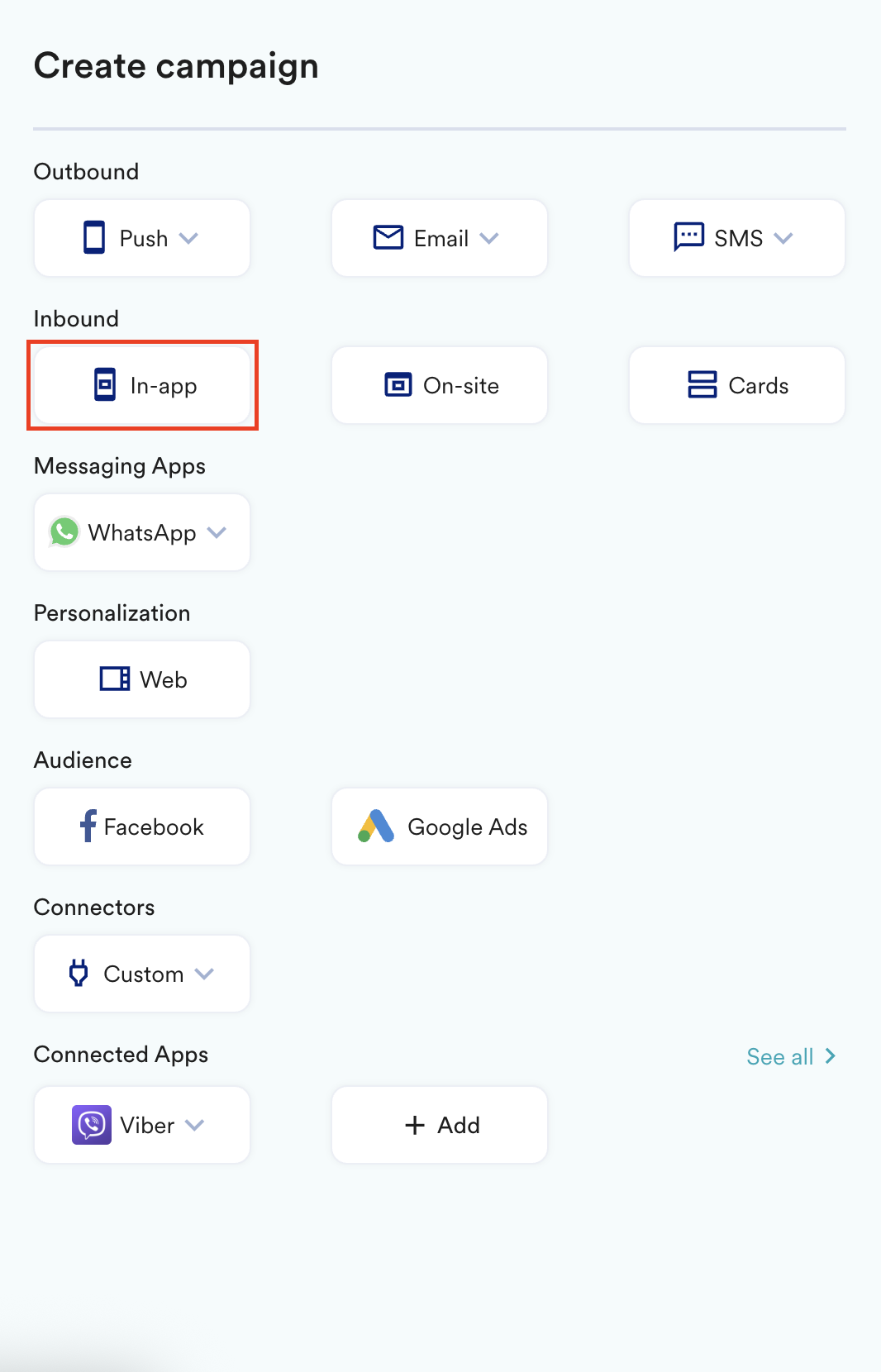

3. Under Inbound, click In-app.

   You are taken to the first step, Target users, in defining your campaign.
4. Define your campaign with a name and tags.

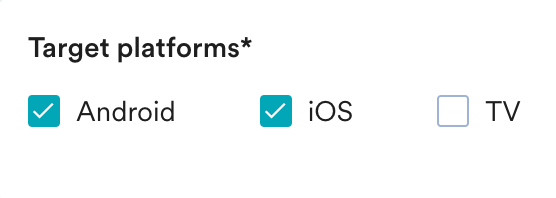

5. In the Target Platforms section, select Android and iOS.

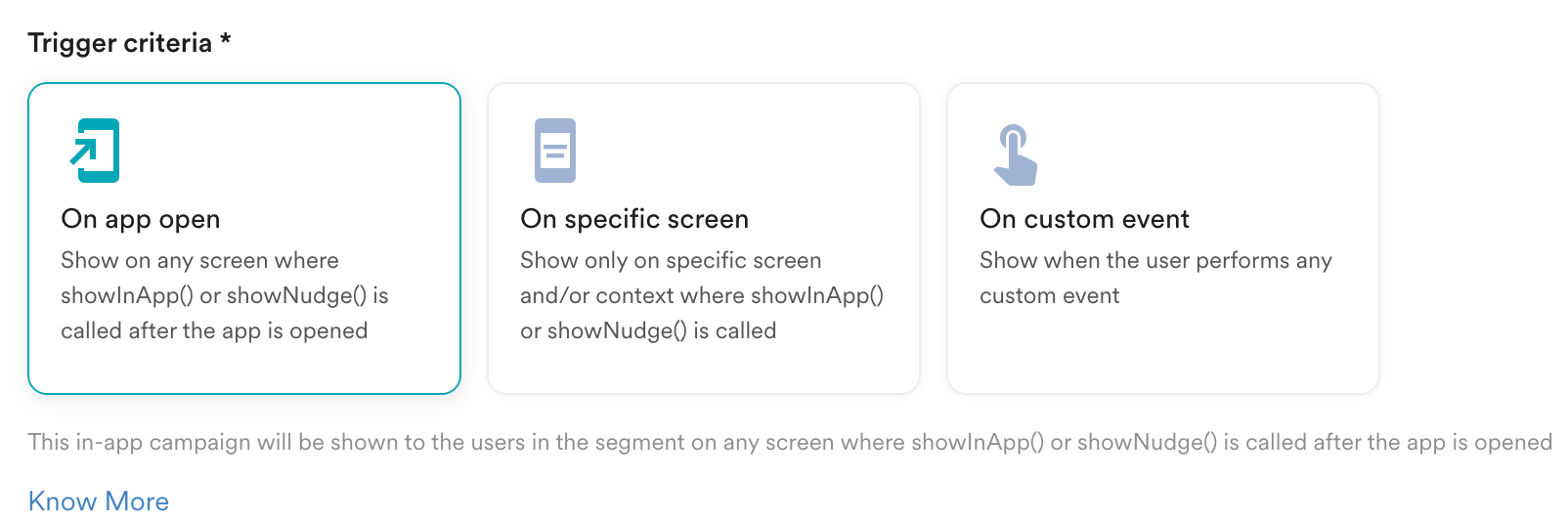

6. In the Trigger Criteria section, click the On app open card. This will ensure that the In-app message is displayed to the users during onboarding when the app is opened.

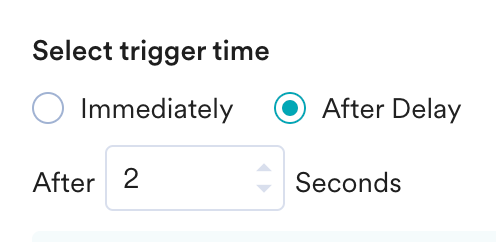

7. In the Select trigger time section, select After Delay and set the trigger time for the In-app message to appear after 2 seconds of opening the app.

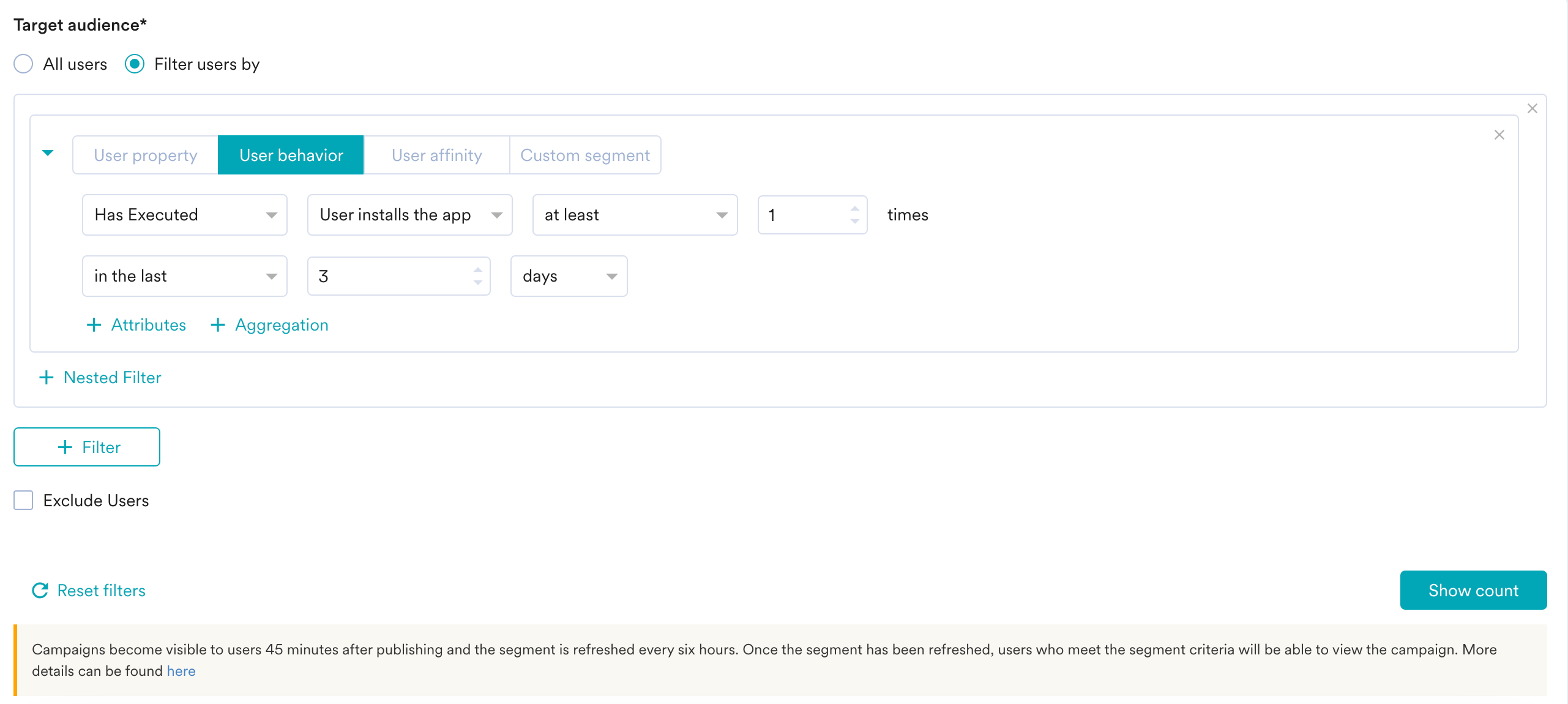

8. In the Target audience section:
   1. Select the Filter users by option.
   2. On the User behaviour tab, segment the audience to target only those users who have newly installed the app in the last three days.

9. Click Next to move to the second step, Content, where we will define the content for your campaign.

Step 2.2: Content

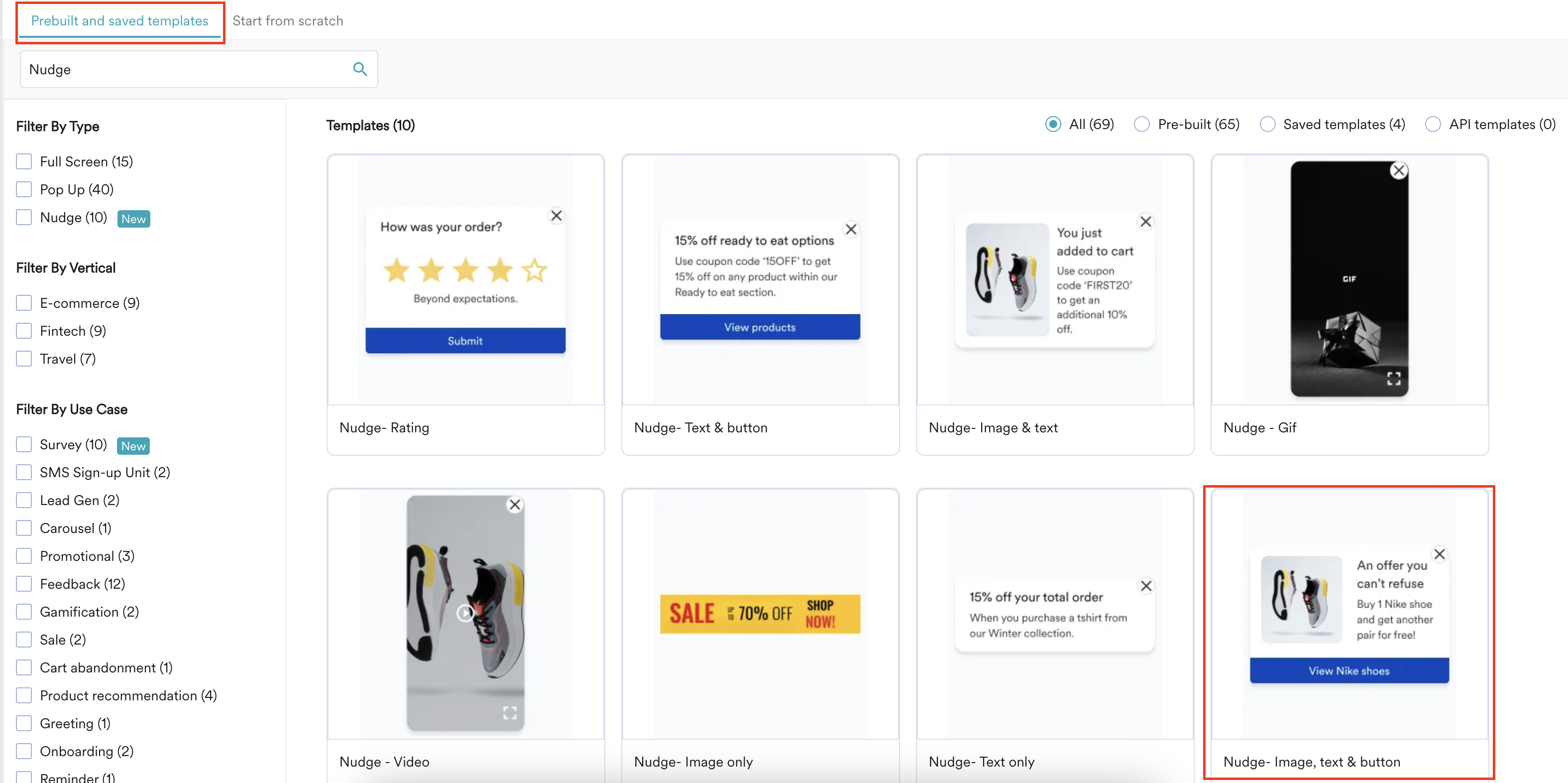

1. On the Prebuilt and saved templates tab, use the search box to search with the keyword nudge to find the nudge templates.
2. Select the Nudge - Image, text & button template.

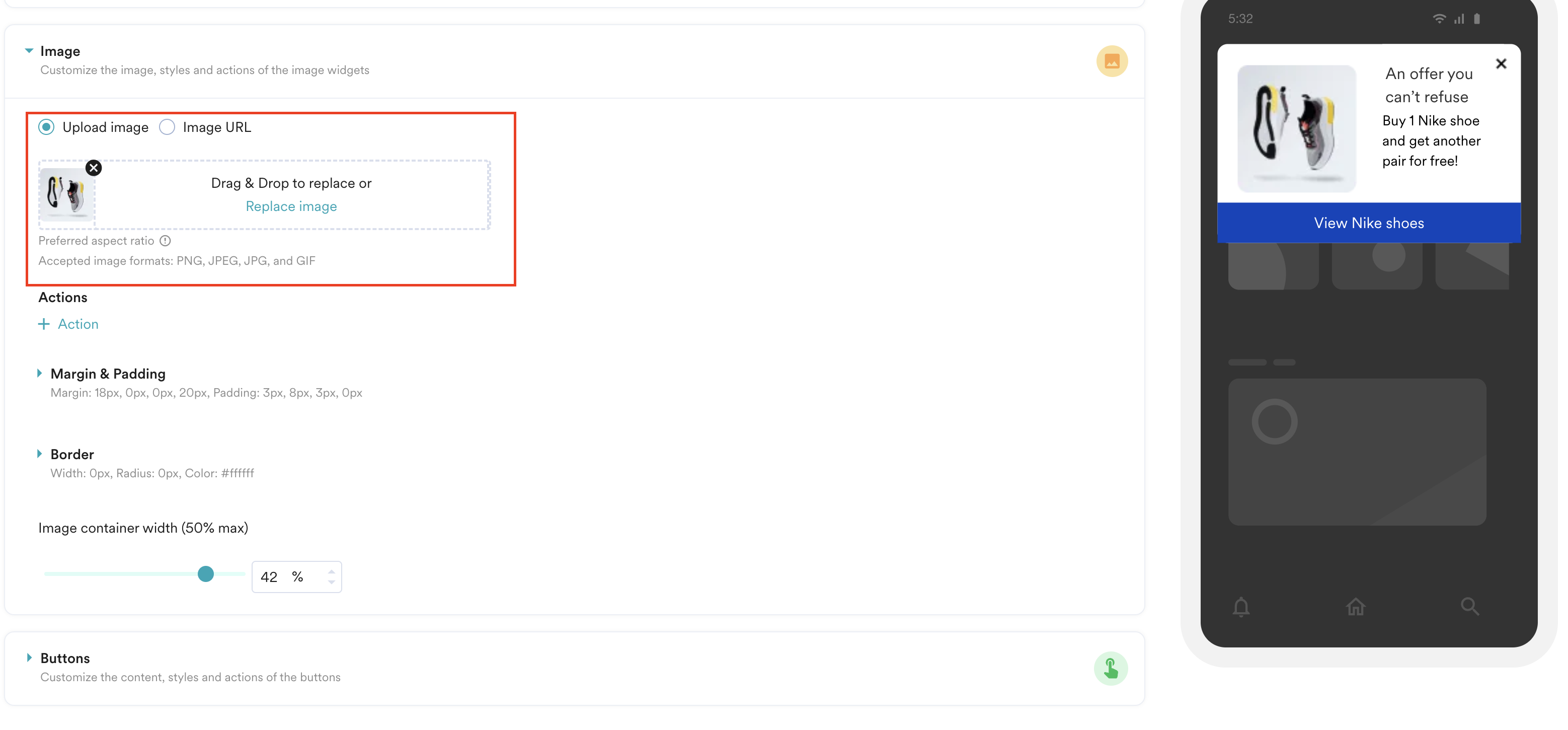

3. Upload the created GIFs in the template in the Image section.

4. Add a concise and clear Call to action (CTA) text for the GIF.
5. Add navigation to the button so that when the user clicks it, they are redirected to the info page.

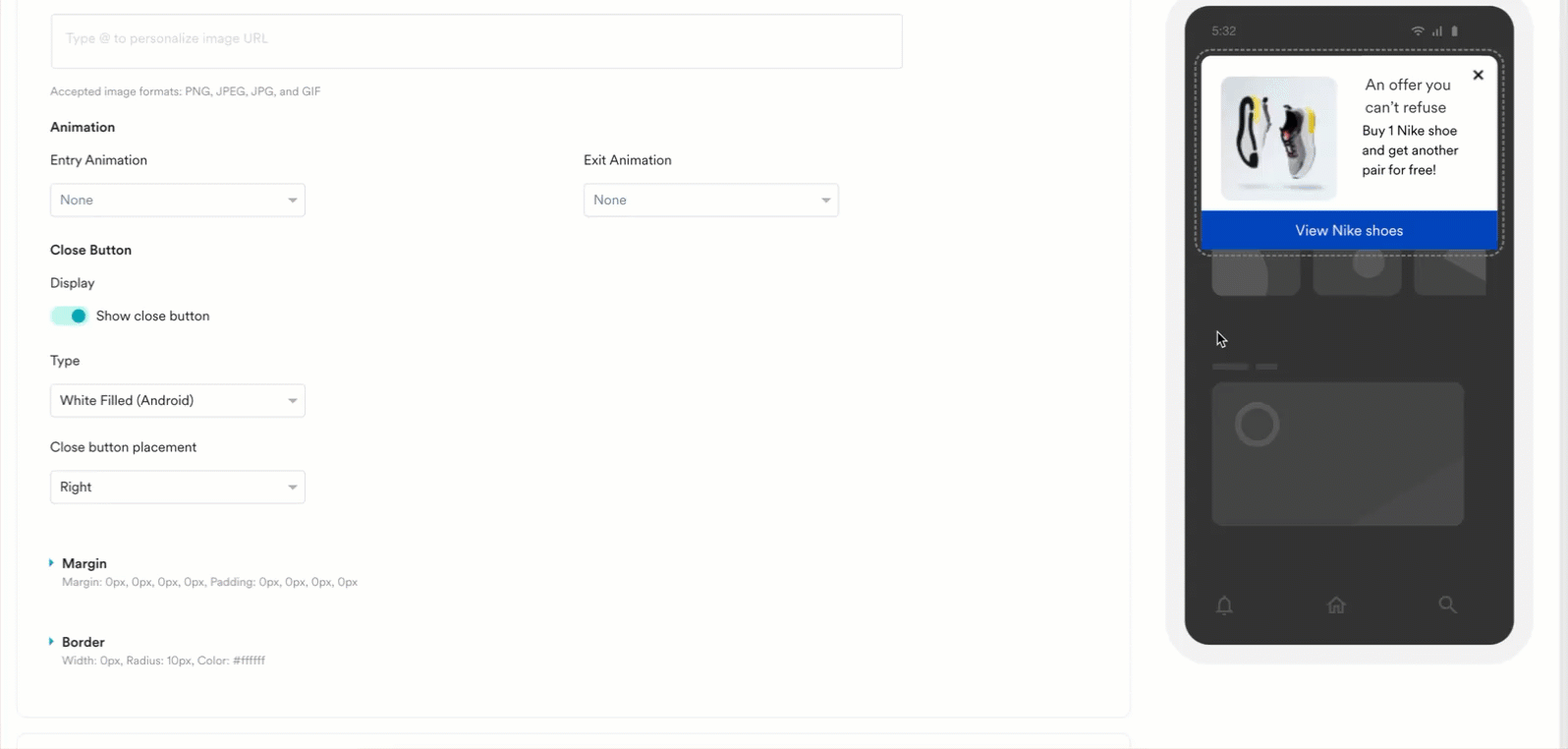

6. Modify the template's design accordingly. Follow the video below to edit the template's design.

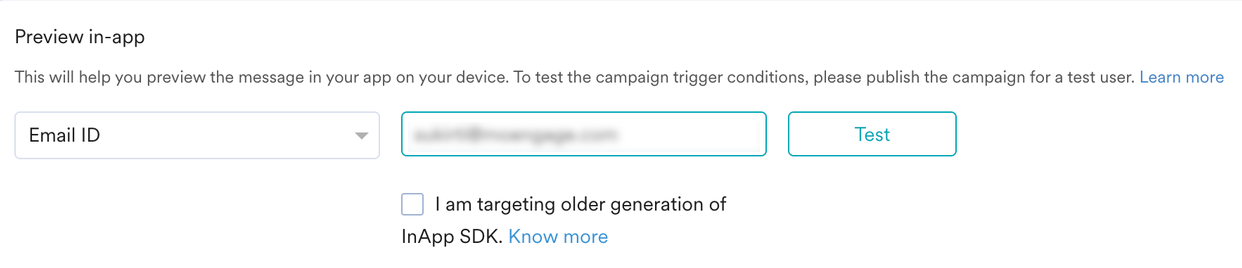

7. Before publishing the campaign, test the In-app messages under the Preview in-app section. With this, you can ensure that GIFs and text display correctly on different devices and screen sizes.


Step 2.3: Schedule and Goals

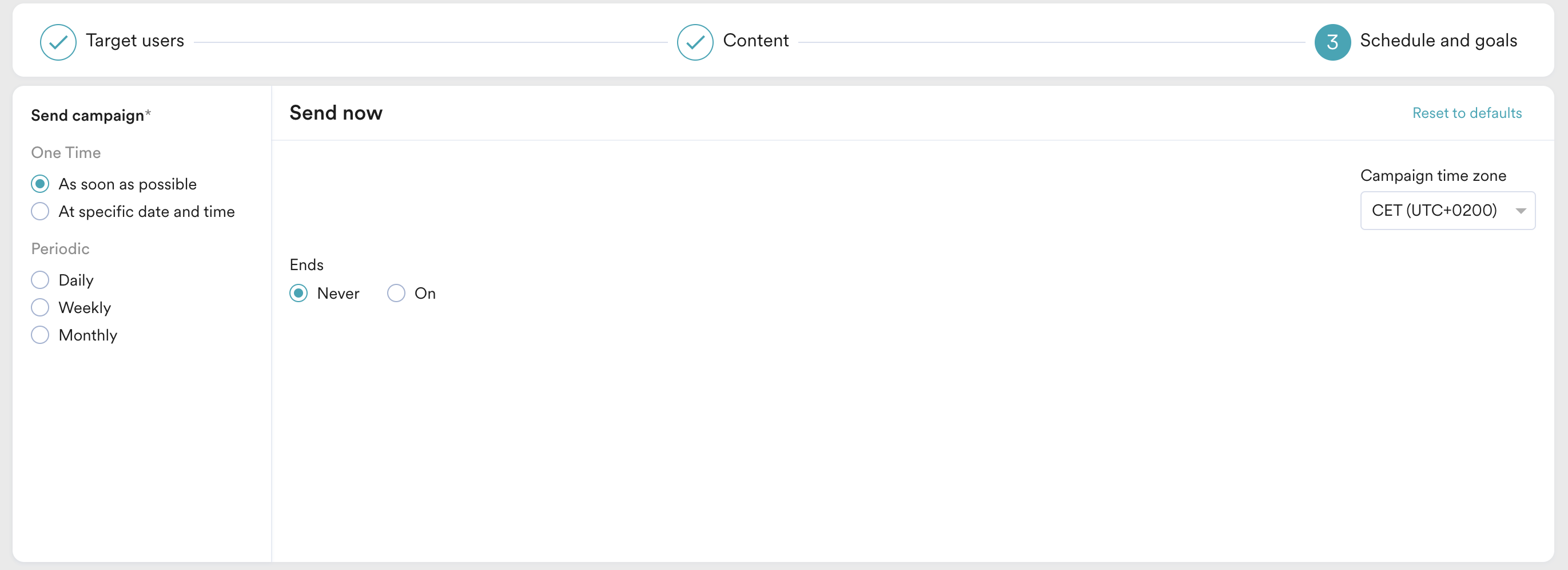

1. In the Send campaign section, define when you want to start and end your In-app messaging campaign.
2. In the Conversion goals section, add conversion goals that you would like to track.
3. In the Campaign priority section, assign a priority to this campaign. For example, selecting Critical ensures that the users will always see the campaign even when there are other campaigns for which they are eligible. For more information, refer to Create In-App Campaign.

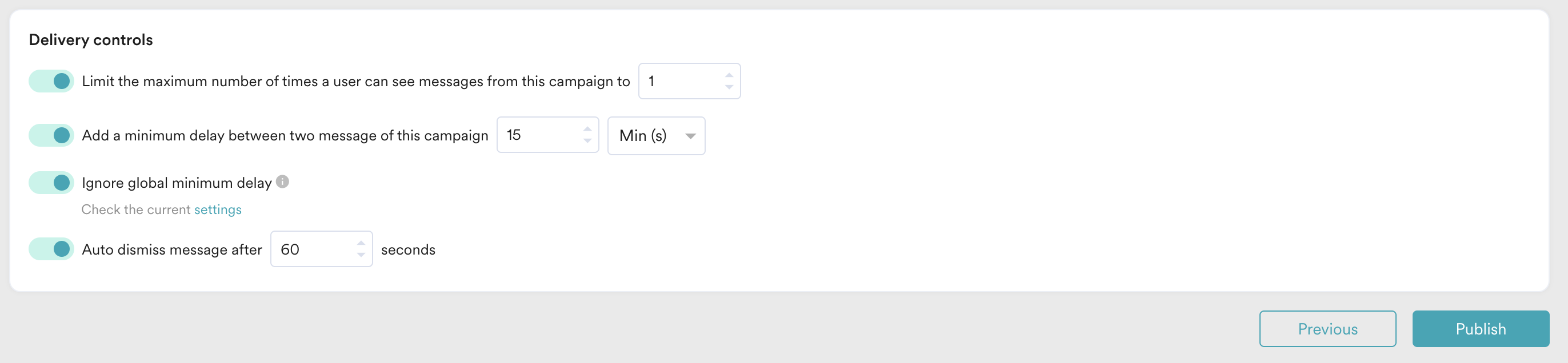

4. In the Delivery controls section, define the controls based on your requirements. For more information, refer to Create In-App Campaign.
5. Click Publish.

After the In-app campaign is published, you can monitor its performance on the campaign analytics page. For more information, refer to Analyze In-App Campaigns.

Analyze and Optimize

• Use the campaign analytics page to track user interactions with the In-app messages.
• Gather feedback and identify any drop-off points.
• Make necessary adjustments to the GIFs or message content based on user behaviour and feedback.

For more information, refer to Analyze In-app Campaigns.

Conclusion

Implementing an onboarding walkthrough using GIFs in In-app messaging can significantly enhance the user experience, making the onboarding process more engaging and effective. By following the steps outlined in this use case, you can ensure new users quickly understand and appreciate the value of the app, leading to higher engagement and retention rates.
